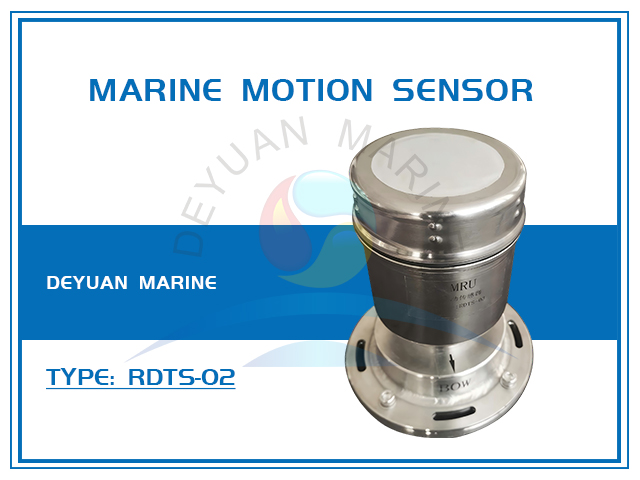

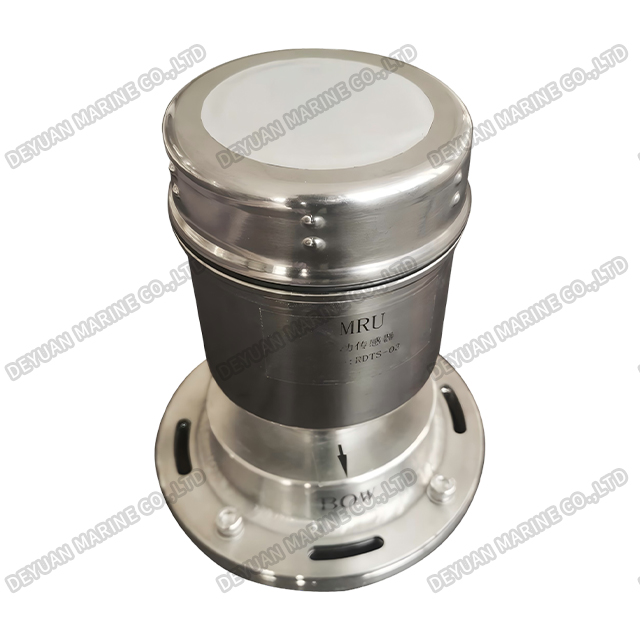

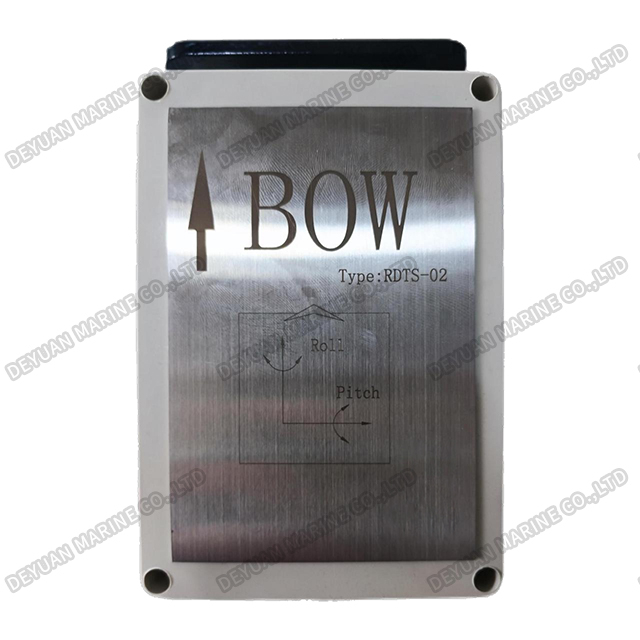

Marine RDTS-02 Type Motion Sensor
Product Introduction:
RDTS-02 is a high-performance three-dimensional motion attitude measurement system based on MEMS technology, which includes three-axis gyroscope, three-axis accelerometer and other motion sensors. By integrating various high-performance sensors and the core algorithm engine of attitude dynamics, combined with the fusion algorithm of high-dynamic Kalman filter, we can provide customers with high-precision, high- dynamic and real-time compensation of three-axis attitude angles.
Key Features:
*High-accuracy MEMS technology for reliable motion detection
*Compact and rugged housing (IP66/IP67 rated) – resistant to salt spray, humidity, and vibration
*Wide temperature operation (-25°C to +55°C)
*Multiple output interfaces – RS422, CAN bus, and Ethernet (optional)
*Low latency and high data rate (up to 200 Hz)
Technical Specifications:
| Working voltage | DC24V(9V~32V) |
| Communication interface | RS485 and RS232 |
| Maximum distance | ≤ 500m (RS485)、≤ 30m (RS232) |
| Ambient temperature | -20℃ ~ +70℃ |
| Range | ±90°(pitch angle)、±90°(roll angle) |
| Accuracy | 0.01 |
| Resolution | 0.0055 (placed horizontally) |
Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.
