Product Description

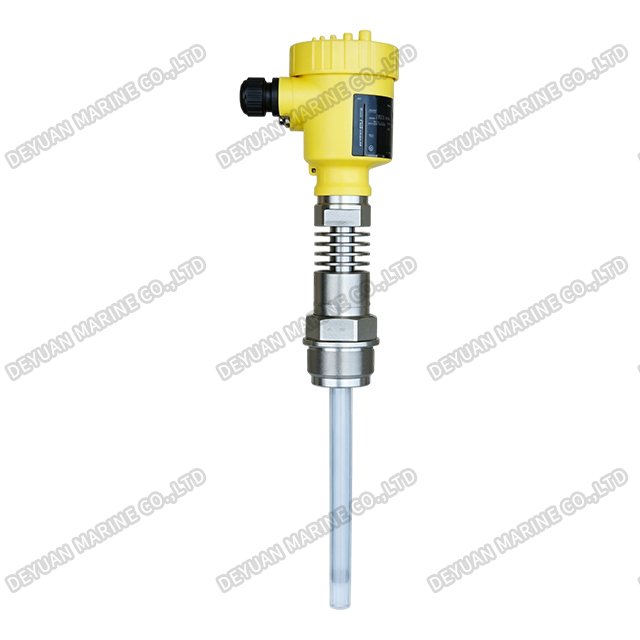

CP-63B Type Tank Type Oil Contamination Detection Transmitter
Product Introduction:
Boiler feed filter tank have a inspection chamber or devide area in tank to accumulate oil when oil contamination in boiler water. When incoming oil contaminated water in inspection chamber, the feed water only go out to feed filter tank and oil with be accumulate in inspection chamber until drainage. When the normal conditions, the end part of electrode will be in water level always. But the water contaminate oil that the oil is accumulate top level in inspection chamber, the electrode will be in oil level instead of water level. The oil detector will activate alarm. After drain oil in inspection chamber, the oil detector return to normal condition.
Main Technical Specification:
| Type | Capacitive oil detector |
| Power supply | AC 110/220V |
| Output | Relay contact (DPDT) |
| Operating pressure | 1.0MPa |
| Max. Temp | 150℃/ 200℃ |
| Protection | IP66 |
| Conn. Size | G1" |

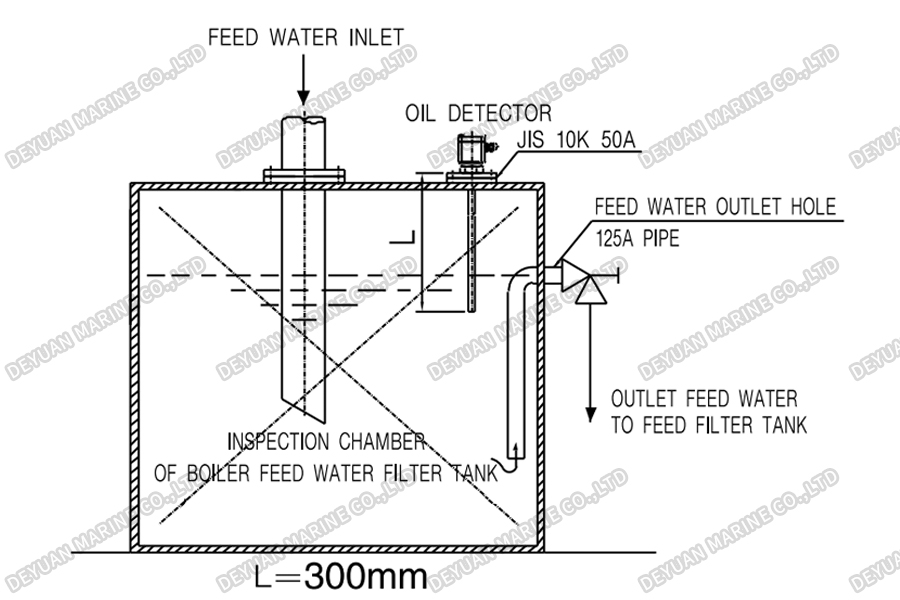

Installation Arrangement:
