Product Description
UBX Type Portable Oil/Water Interface Detector
Product Introduction:
UBX type portable interface detector can detect the position of oil/water in the same tank conveniently, as well as the medium temperature at the same time. The product accords with CB\T4182-2011 <Technical Requirements for Marine Oil/ Water Interface Detector> and MEPC.5 (XIII) <Technical Requirements for Oil/ Water Interface Detector>. The product is applicable for oil/water interface and temperature measurement of ballast tanks, liquid tanks, slop tanks, oil tanks etc. in oil tanker, oil & chemical ship, petroleum, chemical and other industrial place
Main Technical Specification:
| Interface detection accuracy | ±20mm |
| Tape length | 15 m、30m |
| Tape system | metric/ British |
| Tape resolution | 1mm |
| Tape accuracy | ±3mm/30m |
| Min. detection level | 4mm |
| Display mode | LCD text and sound |
| Temperature accuracy | ±0.5%F.S. |
| Temperature resolution | 1℃ |
| Power voltage | DC 9V (battery) |
| Ambient temperature | -25~55℃ |
| Probe temperature | -25~110℃ |
| Ex. mark | Ex ia Ⅱ BT4Ga |
| Protection class | IP44 （sensor IPX8） |
| Certificate approval | MED and CCS |
| Connection size | 2 ＂ deck valve 1 ＂ quick connector |
| Applicable medium | oil, water and chemical |

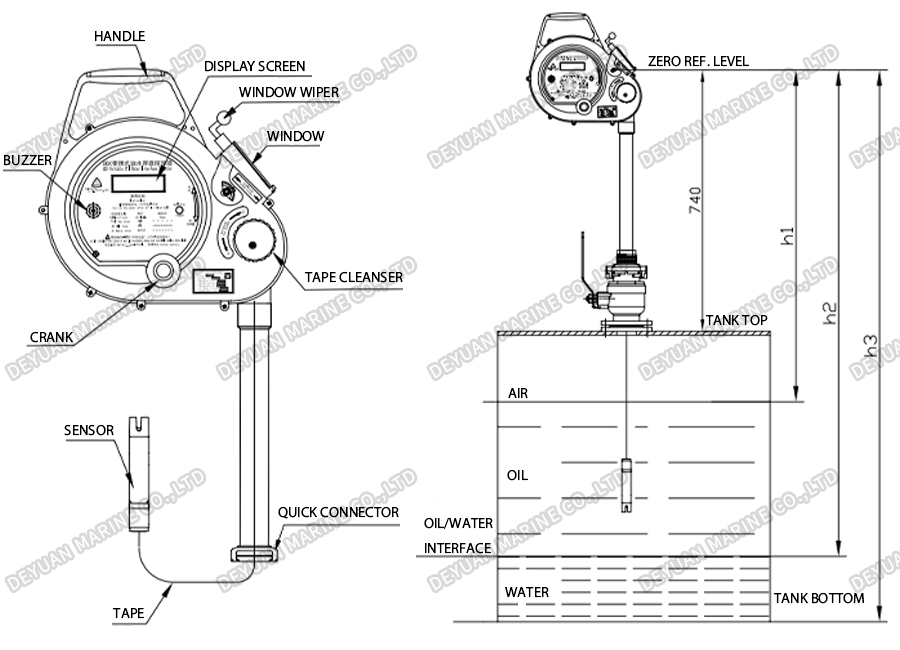

Drawing
Features:
*100% repeatability
*Readable continuous temperature;
*High accuracy and stability;
*Easy changing battery;
*No need to recalculate after changing probe;
*Light weight, easy to carry;
*Longtime steady temperature, no easy to aging;
*Multi-adaptor can be connected with different deck valve;
*Tape cleaning device, window wiper and tape protector;
*Modular design, easy to maintenance.
Product Composition And Its Measuring Principle:
UBX type portable oil/water interface detector is composed of detecting sensor, casing, steel tape, display unit, etc.
A special sensor detecting medium of oil, water and air is put into the liquid tank. The different data will be transmitted to the process module by the communication cable as soon as the sensor located in different medium of air, oil or water.
This deferent data is processed in the module and then activated the buzzer by different ringing signal; therefore the deferent medium can be identified. At the same time, the LCD display screen shows the letter of AIR,OIL or WATER. The surveyor then reads out and records the reading from the reading port of stell tape as soon as the buzzer sounds. After that further put down the sensor, read out and record the reading when the buzzer sounds again. The difference between two readings is just the height of medium(oil layer or water layer).
