Product Description

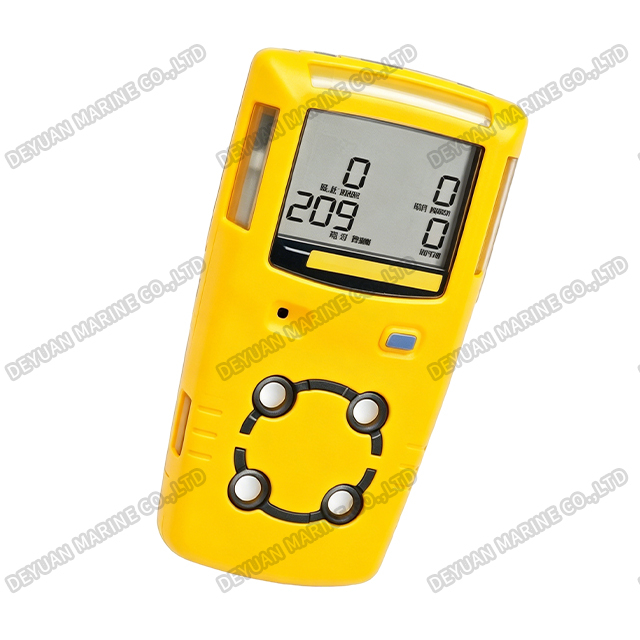

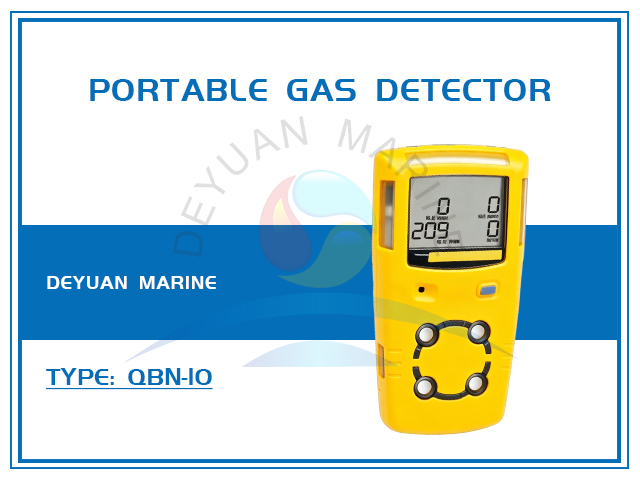

QBN-10 Type Portable Gas Detector
Product Introduction:
QBN-10 type portable gas detector can be divided into pumping type and diffusion type, it can detect single gas or complex gas. With the characteristics of small cubage, high sensitivity, safety and reliability, it is widely used for concentration detection and alarm for flammable gas and poisonous gas in ship, petrochemical, fire control, mine etc.
Sampling pump is matched for pumping type gas detector, and the gas can be directly suctioned into sampling pump for detection. This type is suitable for closed space or mine gas.
Diffusion type can be located in detected condition for gas detection. Normally it needs to be taken along by man for detection, it is suitable for worker in hazardous area or the environment that man can access.
Main Technical Specification:
| Detected gas type | flammable gas, oxygen gas, hydrogen sulfide, carbon monoxide | |
| Detection principle | infrared, catalytic combustion, electrochemistry | |
| Range | 0~100%LEL, 0~40vol%, 0~100ppm, 0~500ppm | |
| Alarm parameters | Flammable gas | one class: 10%LEL， two class: 50%LEL, over range: 100%LEL |
| Oxygen gas | low alarm: 19.5%vol， high alarm: 23.5%vol, over range: 40.0%vol | |
| Hydrogen sulfide | one class: 10.0ppm, two class: 30.0ppm over range: 100.0ppm | |
| Carbon monoxide | one class: 10.0ppm, two class: 30.0ppm over range: 100.0ppm | |
| LCD display | display one or four types of gas concentration at the same time; LCD digit display;backlight is auto-lighted when alarm | |
| Alarm sound | 95dB at 30cm | |
| Alarm type | Gas alarm: two class preset alarm point, over range alarm | |
| Fault alarm | sensor disconnection; low voltage; circuit board fault; wrong calibration range | |
| Alarm display | Gas alarm | LED lamp flickering、 buzzer calling、gas concentration value flickering、vibration |
| Fault alarm | LED lamp flickering; buzzer calling; fault information display | |
| Sampling type | pumping type, diffusion type | |
| Ex. Mark | Ex ia IIC T4 Ga | |
| Protection class | IP66 | |
| Continuous working hours | Max. 20 hours | |
| Power supply | Nickel metal hydride battery pack, can be charged directly | |
| Working temp. | -20℃~50℃ | |
| Ambient humidity | 5%--95%RH | |
| Response time | T90 less than 30s | |
Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.
