Product Description
Marine RQY Type Sampler
Product Introduction:
RQY type sampler consists of lifting device, protection chamber, sample discharging valve, sample barrel etc. The product is designed for closed sampling of liquid. It has the characteristics of high accuracy, convenient operation, safety and reliability etc. It is suitable to take the liquid sample of different liquid level from cabins, tanks and various vessels in ships, petroleum, chemical and other industry.
Main Technical Specification:
| Model | RQY-2 |
| Installation type | 2” quick connector |
| Tape size | length 15 m |
| Tape resolution | 1mm |
| Density scope of sample medium | 0.6~3.5g/cm3 |
| Medium temperature range | -25℃~110℃ |
| Working pressure | 0.3bar |
| Sampling volume | 0.15L |
| Matched valve | 2” deck valve |

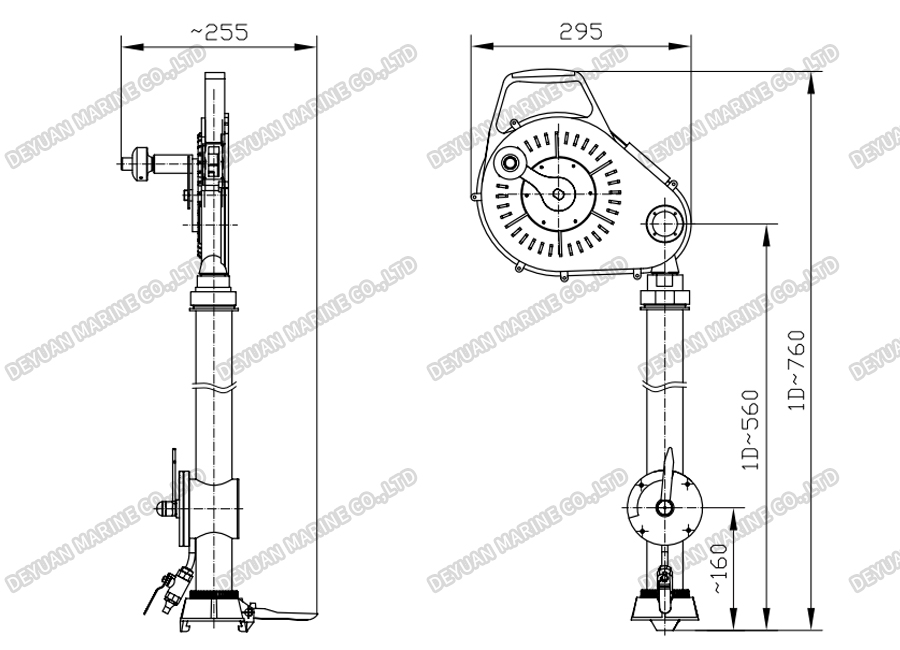

Drawing:
