Product Description
CP-63A Type Pipeline Oil Contamination Detection Transmitter
Product Introduction:
This device is installed in the cooling water line of ships and is designed to detect oil in cooling water. This system consists of an oil detection pot, a capacitive compact switch and a control unit. The oil detection pot for separating oil and water has no cock valve to isolate the input and output lines. A capacitive type oil detector is installed inside the oil detection pot to detect oil isolated from water at the top of the pot. The control unit receives detection signals from the capacitive compact switch and converts the contact signal into a relay output.
Main Technical Specification:
| Composition | Consists of Oil detection pot; Capacitive oil detector |
| Max. Pressure | 0.5MPa |
| Max. Temp | 150℃ 200℃ |
| Flow | 100~300L/h |
| Sensitivity | Approx. 50ml oil |
| Power supply | AC 110/220V |
| Output | Relay output (DPDT) |

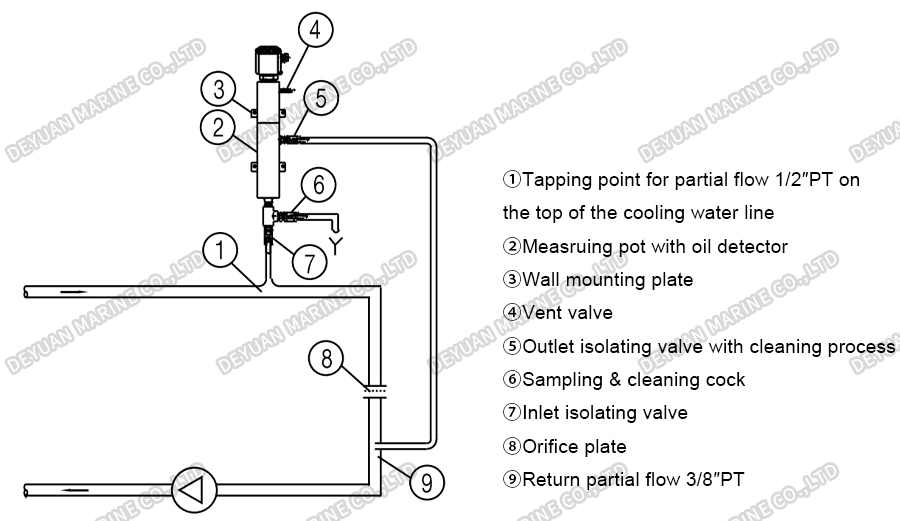

Principal Piping Diagram:
