Product Description

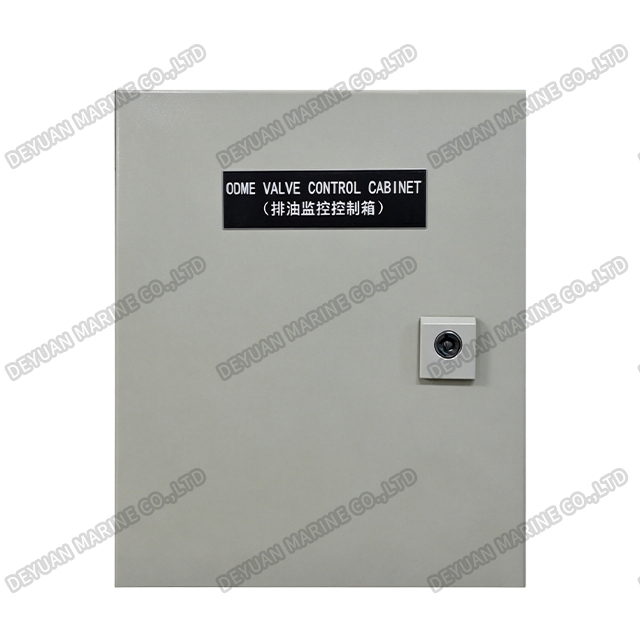

Marine Oil Discharge Monitoring System
Product Introduction:
ODME oil discharge monitoring device is used to monitor, record and control the instantaneous discharge rate and total discharge amount of ballast water and bilge sewage. Its design conforms to MEPC107(49) Resolution "Revised Guide and Technical Conditions for Bilge Water Pollution Prevention Equipment in Ship Machinery Room", and has passed the type approval of CCS and LR and the type approval of EC Module B.
System Configuration:
ODME Oil Discharge Monitoring System is a special anti-pollution equipment for tanker, which is designed in accordance with MEPC.240(65): 2013 AMENDMENTS TO THE REVISED GUIDELINES AND SPECIFICATIONS FOR OIL DISCHARGE MONITORING AND CONTROL SYSTEMS FOR OIL TANKERS (MEPC.108(49)) and apply to monitoring the accumulated volume of oil discharged to overboard in every voyage and to control the instantaneous discharged rate of oily ballast during de-ballast operation. In the case of the total oil volume or oil instantaneous discharged rate oversteps the specified standards, or system fails, the overboard valve will be shut down automatically to stop the de-ballast operation.
Technical Specifications:
| System power supply | AC110/220V,50/60Hz |
| Ambient temperature | 0~50℃ |
| Relative humidity | 80% |
| Measuring range | 0~1000ppm |
| Reaction time | < 40 seconds |
| Measurement accuracy | 10% fs or min 10ppm. |
| Air source of discharge valve | 0.7MPa |
| Air source of reflux valve | 0.7MPa |
| Type certificate | CCS, LR, EC |
| Sample pump power | AC380/440V,50/60HZ |

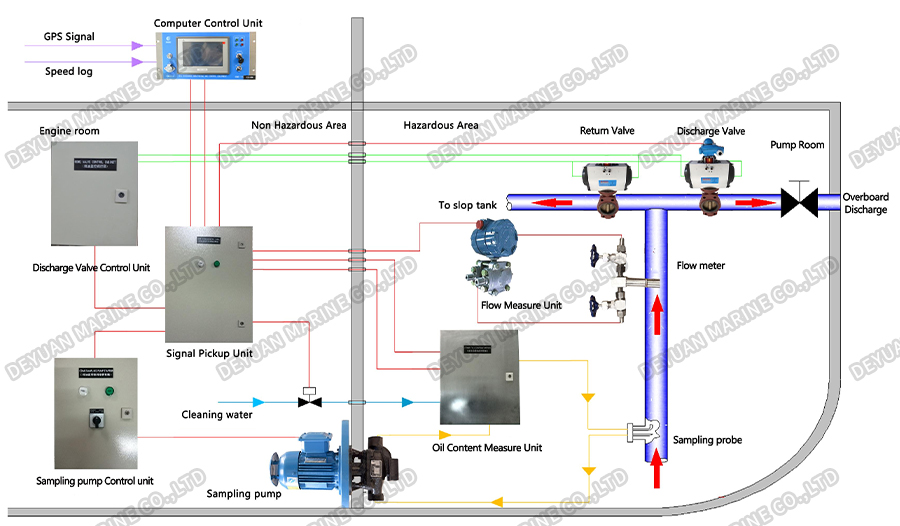

General Diagram:
