Marine Deck Machinery Electric Mooring Vertical Capstan

Place of Origin: China (Mainland)
Brand : Deyuan Marine
Driven: Electric
Rated pull:5-200KN
Norminal Speed: 9m/min
Chain dia.: 12.5-70mm
Certificate: CCS, BV, ABS, DNV, KR, NK, RINA, GL, LR
  • Deyuan Marine

Availability:

Product Description

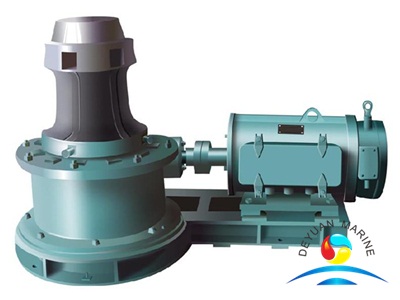

Marine Deck Machinery Electric Mooring Vertical Capstan


The marine capstan is an important equipment of the ship. It is the mechanical device that ensure the ship can sail normally.

Due to the different application, the marine capstan is divided into anchor capstan and mooring capstan. Based on the shape, it can be divided into vertical capstan and horizontal capstan. According to the input power, it can be divided into electric capstan and hydraulic capstan.

We can supply electric,hydraulic or diesel type mooring/anchor handing capstans, with CCS, NK, BV, ABS, DNV, GL, LR, etc certification.

The structure can be designed with vertical or horizontal type according to your request.


Technical parameters:

Type  Warping load (KN) Warping speed(m/min) Wire Dia(mm) Motor power (kw)
Electric  Hydraulic
D(Y)J5 5 ≥18 φ11 3/1.2 5.5
D(Y)J10 10 ≥18 φ11 4.3/1.7 7.5
D(Y)J20 20 ≥18 φ15 7.5/7.5/5 15
D(Y)J30 30 ≥18 φ17.5 16/16/11 18.5
D(Y)J40 40 ≥18 φ20.5 16/16/11 18.5
D(Y)J50 50 ≥18 φ20.5 22/22/16 30
D(Y)J70 70 ≥15 φ26 30/30/22 45
D(Y)J100 100 ≥15 φ28 45/45/30 55
D(Y)J120 120 ≥15 φ32.5 60/60/45 75
D(Y)J150 150 ≥15 φ36.5 60/60/45 90
D(Y)J200 200 ≥15 φ40 75/75/36 110
D(Y)J250 250 ≥12 φ46 75/75/36 110


Ship Capstan
More electric mooring capstan can be offered, pls contact us for more details.
