Product Description

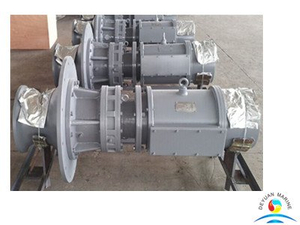

Light Duty Marine Vertical Type Capstan Horizontal Electric Motor Rope Winch For Boat
Light duty marine vertical type capstan rope winch is designed according to standard GB/T4447-1992 which is suitable for 5 m to 30 m length ship. The capstan rope winch is always be installed on the ship keel of main deck. This light duty capstan rope winch suitable for ship mooring, anchoring and warping hawser. The capstan winch is mainly made up of motor, reducer, capstan head, brake and so on. the pulling force of rope winch is from 5KN to 300KN.
Capstan rope winches technical parameters:
1, Structure: Vertical Capstan Head and Horizontal Electric Motor (vertical motor is available)
2, The maximum load 5 -300 KN
3, The anchor nominal speed 8 to 15 m/min or customized
4, Driving type: Electric, hydraulic type available
5. Usage: mooring or anchoring or warping hawser
Our light duty capstan rope winches mainly supply with certificate such as CCS, ABS, DNV, BV, RINA, BKI etc. Welcome contact with me if you want any this capstan winches!
| Type | Working Load | Mooring Speed | Motor Power (kW) | |
| (kN) | (m/min) | Electric | Hydraulic | |
| 5kN | 5 | 15 | 2.2/0.75 | 2.2 |
| 10kN | 10 | 15 | 4.3/1.7 | 4 |
| 15kN | 15 | 15 | 6/2.5 | 7.5 |
| 20kN | 20 | 12 | 11/11/.75 | 7.5 |
| 30kN | 30 | 12 | 16/16/11 | 11 |
| 50kN | 50 | 12 | 22/22/16 | 18.5 |
| 70kN | 70 | 12 | 30/30/22 | 22 |
| 100kN | 100 | 12 | 45/45/30 | 37 |
| 125kN | 125 | 12 | 45/45/30 | 45 |
| 150kN | 150 | 9 | 45/45/30 | 37 |
| 180kN | 180 | 9 | 45/45/30 | 45 |
| 200kN | 200 | 9 | 45/45/30 | 55 |
| 250kN | 250 | 9 | 60/60/45 | 75 |
| 280kN | 280 | 9 | 75/75/36 | 75 |
| 300kN | 300 | 9 | 75/75/36 | 75 |
More horizontal type mooring capstan can be offered,pls contact us for more details.
