316L Stainless Steel Boat Electric Vertical Capstan

Usage: Yacht, patrol boat
Type: Vertical
Driven: Electric motor
Surface: Mirror polish
Material: SS316L
Marine certificate: CCS, BV, ABS etc
Delivery time: 10-30days only
Availability:

Product Description

316L Stainless Steel Boat Electric Vertical Capstan


Small size of ships like patrol boat, yacht and work boat has compact space on the deck, so usually consider to adopt capstan as vertical type or small stainless horizontal type, to save precious space of the deck. What's more, the vertical arrangement allows the electric motor and reduction gear hidden under the deck, not only save the space of deck but also keep the motor and reduction gear away from bad weather and sea water, realize few maintain work.


Surface Treatment Features:

All the metal materials excpet motor and reduction gear are stainless steel 316L, could be processed mirror polish, surface will be as smoothy as a mirror.

To avoid the capstan sliping with rope, can make somes strips on the surface of the capstan.

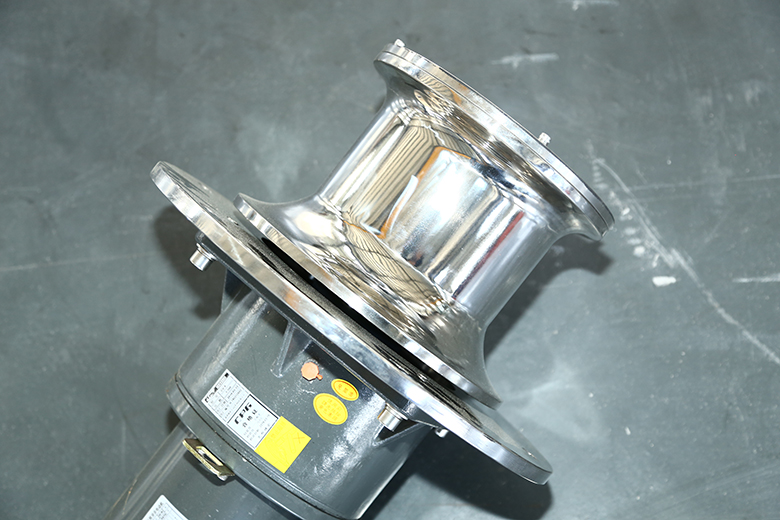

正文-Vertical Stainless Capstan 5-Deyuan Marine



Specification for capstan:

Name  Working Speed  Capstan Load  Motor Power
(KN)  (m/min)  (KN) (KW)
DSC8  Vertical Capstan  15 8 3.5
DSC10 Vertical Capstan  15 10 4.5
DSC20 Vertical Capstan  15 20 8.5
DSC30 Vertical Capstan  15 30 12.5
DSC40 Vertical Capstan  15 40 16.5
DSC50  Vertical Capstan  15 50 21
DSC60  Vertical Capstan  15 60 25
DSC80 Vertical Capstan  15 80 35
DSC100 Vertical Capstan  15 100 45
Smaller or bigger veritical capstan could be offered, pls contact us for more details.
