Product Description

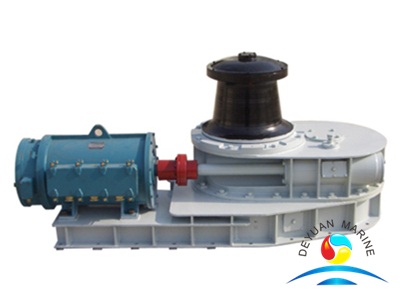

Horizontal Electric Motor Deck Mounted Endurance Marine Mooring Rope Warping Capstan
Structure characteristics
Capstan Head：vertical warping drum.
Drive: Horizontal Motor
All parts including gear box mounted above the deck.
Totall vertical type that with vertical motor is available, only the capstan head and installation flange will be mouned above the deck, and the motor and gear box will go through the deck and mounted behind the deck.
| Name | Warping Load | Warping Speed | Wire Dia | Motor Power |
| (KN) | (m/min) | (mm) | (kw) | |
| 5KN Mooring Capstan | 5KN | ≥18 | Φ11 | 3/1.2 |
| 10KN Mooring Capstan | 10KN | ≥18 | Φ11 | 4.3/1.7 |
| 15KN Mooring Capstan | 15KN | ≥18 | Φ13 | 8.5/3.5 |
| 20KN Mooring Capstan | 20KN | ≥18 | Φ15 | 11/11/7.5 |
| 30KN Mooring Capstan | 30KN | ≥18 | Φ17.5 | 16/16/11 |
| 50KN Mooring Capstan | 50KN | ≥18 | Φ20.5 | 22/22/16 |
| 70KN Mooring Capstan | 70KN | ≥15 | Φ26 | 30/30/22 |
| 100KN Mooring Capstan | 100KN | ≥15 | Φ28 | 45/45/30 |
| 120KN Mooring Capstan | 120KN | ≥15 | Φ32.5 | 60/60/45 |
| 150KN Mooring Capstan | 120KN | ≥15 | Φ36.5 | 60/60/45 |
| 200KN Mooring Capstan | 200KN | ≥18 | Φ40 | 75/75/36 |
| 250KN Mooring Capstan | 250KN | ≥18 | Φ46 | 75/75/36 |
More marine electric mooring rope capstan can be offered,pls contact us for more details.
