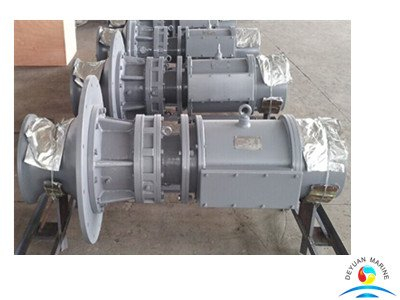

Marine 20KN Boat Vertical Electric Driven Moorning rope Capstan

Marine Anchor Capstan

The marine capstan is an important equipment of the ship. It is the mechanical device that ensure the ship sail safely.

Types of marine capstan

1.Due to the different application, the marine capstan is divided into anchor capstan and mooring capstan.

2.Based on the shape, it can be divided into vertical capstan and horizontal capstan.

3.According to the input power, it can be divided into electric capstan and hydraulic capstan.

We can supply various capstan, with CCS, NK, BV, ABS, DNV, GL, LR, etc certification.

The structure can be designed with vertical or horizontal type according to your request.

Spc. of the 20KN Electric capstan

Rated load: 20KN

Rated speed: 15m/min

Light load speed: 30m/min

Dia. of capstan: φ300mm

Figure: Vertical capstan and horizontal motor mounted above deck type
