Product Description

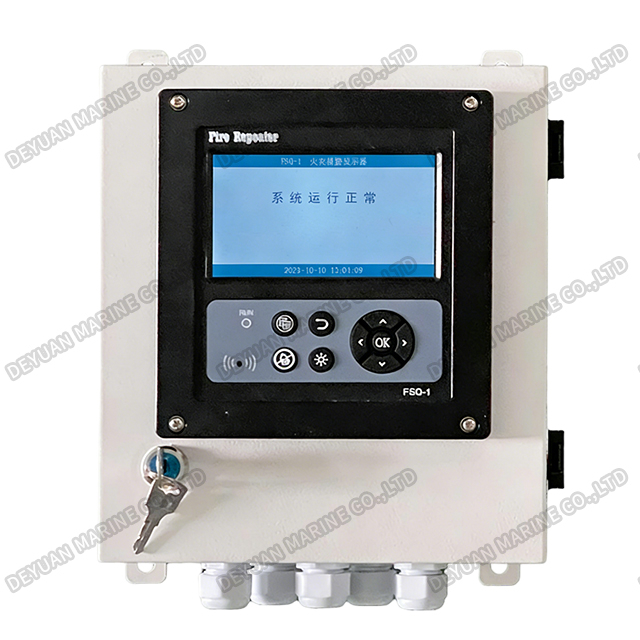

FSQ-1Wall Type Fire Alarm Repeater For Fire Alarm System
Product Introduction
The FSQ-1 Wall Type Fire Alarm Repeater is a robust and reliable auxiliary display unit designed for marine applications. It serves as a remote monitoring station, duplicating the critical status information from the main fire alarm control panel in real-time. Installed in key locations such as the bridge, engine control room, or crew safety centers, it ensures continuous situational awareness for personnel across the vessel.
Constructed with a durable, corrosion-resistant enclosure, the FSQ-1 is built to withstand the harsh marine environment. It features clear, high-visibility visual indicators (typically LEDs) and an integral audible sounder to mirror the main panel's alarm, fault, and normal conditions. Its simple, wall-mounted design facilitates easy installation and maintenance. By providing immediate and identical fire alarm information at strategic secondary locations, the FSQ-1 repeater significantly enhances onboard safety, improves emergency response coordination, and helps meet stringent maritime safety regulations.

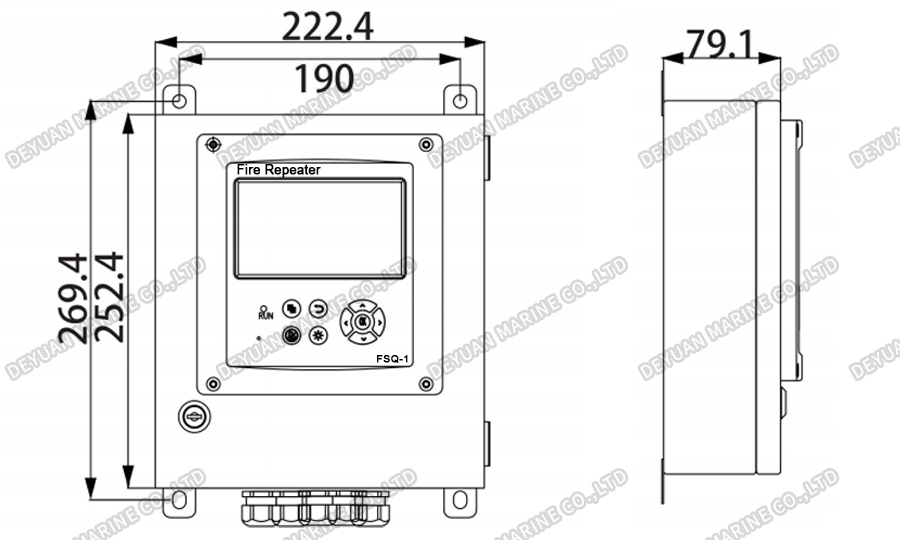

Drawing
Technical Data
| Main Power | AC220V±10% |
| Spare Power | DC24V（+30%~-25%） |
| Output current and voltage | 1A/24V |
| Tactic Power Consumption | 220V 100mA |
| Environment Temperature | -10℃~+55℃ |
| Environment Humidity | 95%RH |
| With measures against mildew.salt fog and humidity. With measures against vibration,impact and incline. | |
Fire Alarm System Addressable Type
Fire Controller System Connection Addressable Type
