Product Description

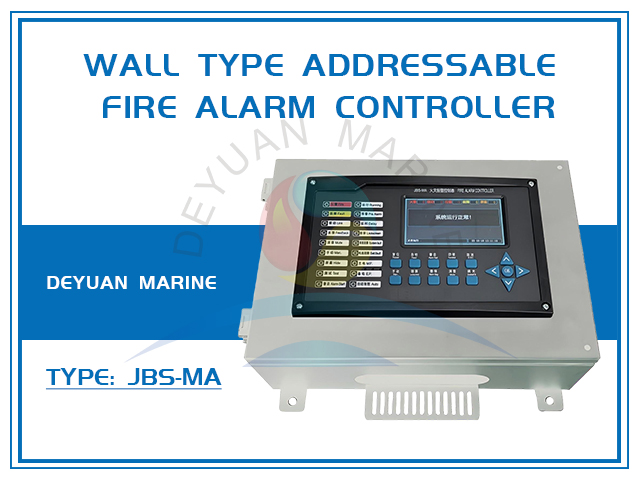

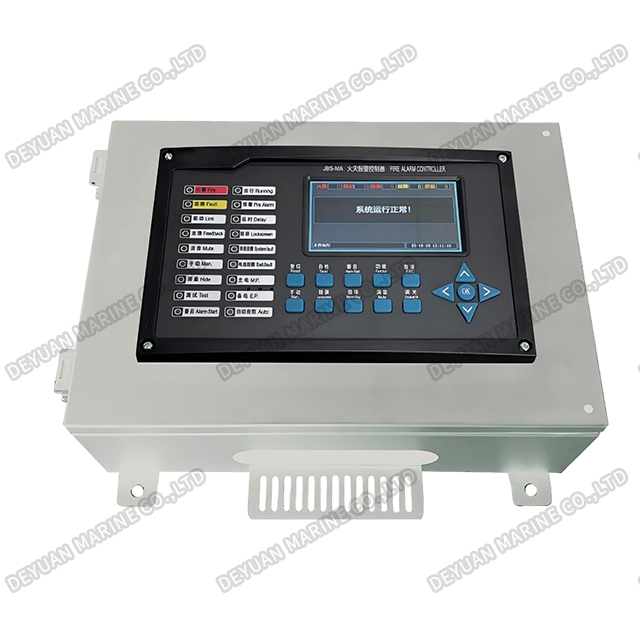

JBS-MA Wall Type Addressable Fire Alarm Controller
Product Introduction:
This Marine Wall-Mounted Coded Fire Alarm Control Panel is a compact and robust central unit designed for reliable fire protection onboard vessels. Complying with stringent maritime standards (IMO, SOLAS, Class Society rules), it continuously monitors connected detectors and manual call points across defined zones.
The "coded" alarm system provides distinct visual and audible signals to instantly identify the specific fire zone, enabling crew to respond swiftly and accurately. Its rugged, corrosion-resistant enclosure is built for harsh marine environments. Featuring intuitive controls, clear status indicators, and seamless integration with critical shipboard systems (e.g., CO2 release, PA/GA), this panel ensures enhanced safety, efficient emergency management, and full regulatory compliance for various ship types.

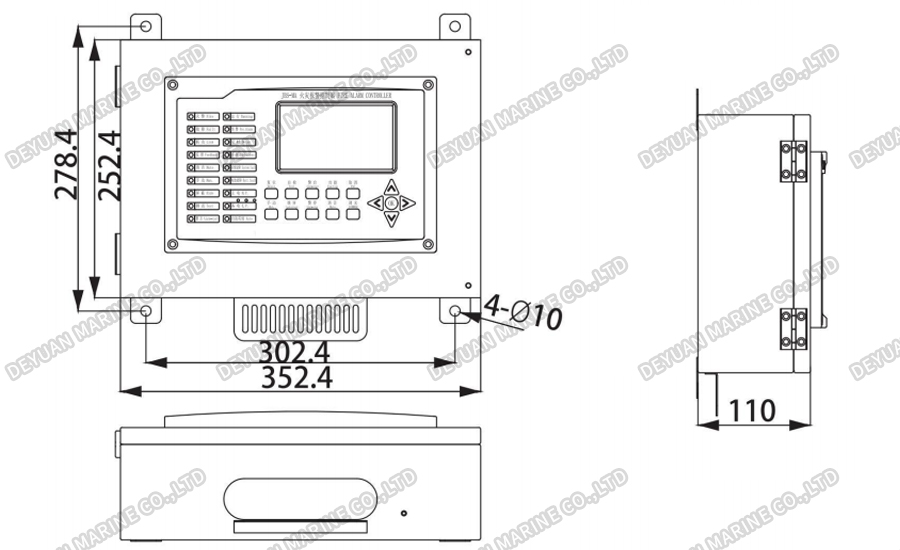

Drawing:
Technical Data:
| Main Power | AC220V±10% |
| Spare Power | DC24V（+30%~-25%） |
| Output current and voltage | 1A/24V |
| Tactic Power Consumption | 220V 100mA |
| Environment Temperature | -10℃~+55℃ |
| Environment Humidity | 95%RH |
| With measures against mildew.salt fog and humidity. With measures against vibration,impact and incline. | |
Fire Alarm System Addressable Type:
Fire Controller System Connection Addressable Type:
