Product Description

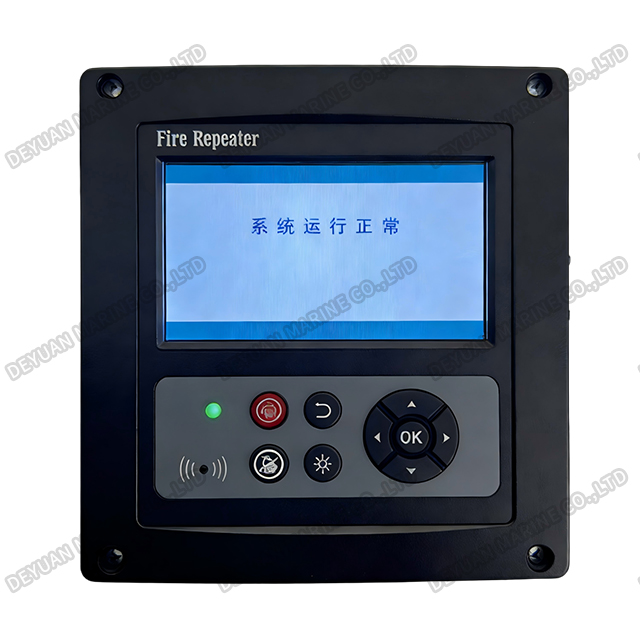

FSQ-1 Fire Alarm Repeater For Fire Alarm System
Product Introduction:
The Marine Fire Alarm Repeater Panel is a critical auxiliary display unit designed to extend monitoring capabilities of the main fire alarm control system throughout strategic locations on board vessels. Fully compliant with maritime regulations including SOLAS and classification society requirements, it provides real-time replication of the main fire alarm control panel's status in remote areas such as the bridge, engine control room, chief officer's cabin, or safety centers.
This robust, marine-grade unit features clear visual indicators and audible alerts that mirror the main system's alarms, fault warnings, and normal operation signals. Its compact, wall-mounted design is built with corrosion-resistant materials to withstand harsh maritime environments. By displaying identical zone/address information as the main panel, it enables rapid situation awareness and coordinated emergency response from multiple key stations without requiring personnel to be physically present at the main control location. The repeater ensures enhanced monitoring reliability, improves crew response time, and contributes to comprehensive vessel safety management.

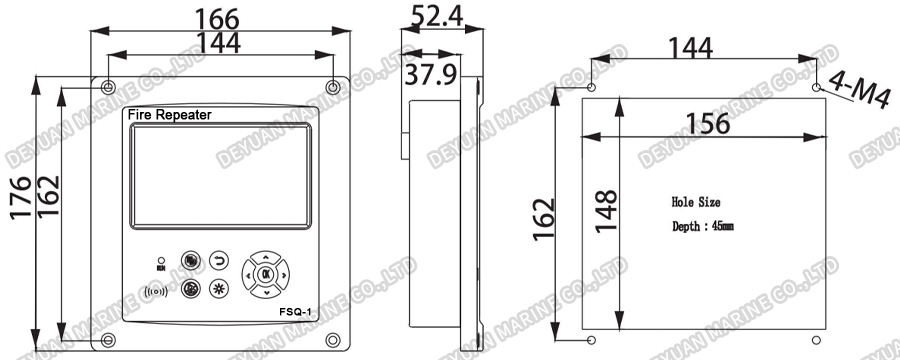

Drawing:
Technical Data:
| Main Power | AC220V±10% |
| Spare Power | DC24V（+30%~-25%） |
| Output current and voltage | 1A/24V |
| Tactic Power Consumption | 220V 100mA |
| Environment Temperature | -10℃~+55℃ |
| Environment Humidity | 95%RH |
| With measures against mildew.salt fog and humidity. With measures against vibration,impact and incline. | |
Fire Alarm System Addressable Type:
Fire Controller System Connection Addressable Type:
