Product Description

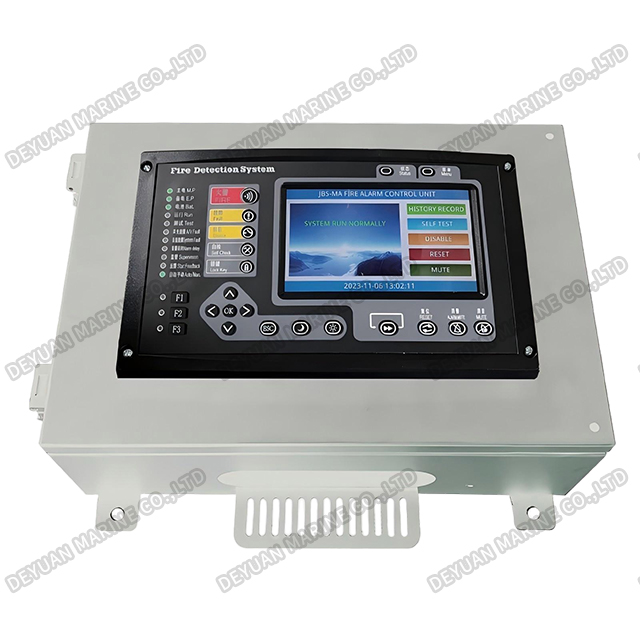

JBS-MA,S Wall Type Addressable Fire Alarm Controller
Product Introduction
The JBS-MA,S Wall Type Addressable Fire Alarm Controller is a core component of modern marine fire protection systems. Designed specifically for the demanding shipboard environment, it complies with major international maritime safety standards, including IMO SOLAS regulations.
As an intelligent addressable system, it provides precise, real-time monitoring and location identification of every connected device—such as smoke detectors, heat sensors, and manual call points—on its intuitive LCD display. This ensures rapid incident pinpointing and efficient maintenance. The unit is housed in a robust, corrosion-resistant, wall-mounted enclosure suitable for marine conditions.
Featuring comprehensive alarm management, event logging, and seamless integration with other critical vessel systems (e.g., CO2 release, PA/GA systems, and machinery shutdowns), the JBS-MA,S ensures reliable 24/7 protection, enhances crew response, and simplifies regulatory compliance for various types of vessels.

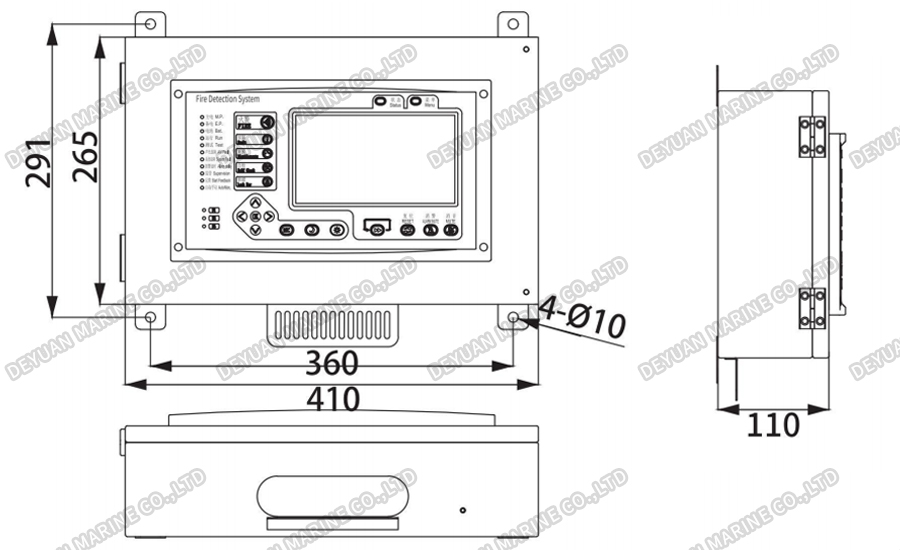

Drawing

Technical Data
| Main Power | AC220V±10% |
| Spare Power | DC24V(+30%~-25%) |
| Output current and voltage | 1A/24V |
| Tactic Power Consumption | 220V 100mA |
| Environment Temperature | -10℃~+55℃ |
| Environment Humidity | 95%RH |
| With measures against mildew.salt fog and humidity. With measures against vibration,impact and incline. | |
Fire Alarm System Addressable Type
Fire Controller System Connection Addressable Type
