Product Description

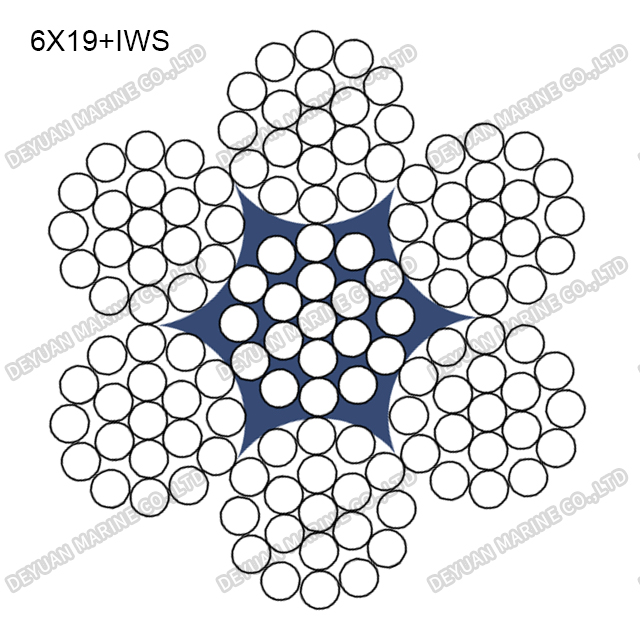

6×19+IWS Stainless-steel Wire Ropes
Product Introduction:
These ropes feature a 6-strand, 19-wire-per-strand construction with an independent wire rope core (IWS), delivering excellent flexibility, fatigue resistance, and structural integrity. They are manufactured from high-grade stainless steel-typically austenitic grades such as AISI 304 or 316-which endows them with outstanding resistance to rust, pitting, and corrosion in aggressive environments, including marine, chemical, and food‑processing applications. The stainless‑steel material also ensures stable performance across a wide temperature range and extends service life in outdoor or high‑humidity conditions, making these ropes a reliable choice for critical lifting, rigging, and mooring operations where both strength and long‑term durability are paramount.
Product Parameters:
| Type: 6×19+IWS | ||
| Standard: GB/T9944-2015 | ||
Diameter (mm) | Weight (kg/100m) | Minimun Breaking Load of Rope (KN) |
| 1.6 | 1.12 | 1.85 |
| 2.4 | 2.6 | 4.1 |
| 3.2 | 4.3 | 7.85 |
| 4.0 | 6.7 | 10.7 |
| 4.8 | 9.7 | 16.5 |
| 5.0 | 10.5 | 17.4 |
| 5.6 | 12.8 | 22.3 |
| 6.0 | 14.9 | 23.5 |
| 6.4 | 16.4 | 28.5 |
| 7.2 | 20.8 | 34.7 |
| 8.0 | 25.8 | 40.1 |
| 9.5 | 36.2 | 53.4 |
| 11.0 | 53 | 72.5 |
| 12.7 | 68.2 | 101 |
| 14.3 | 87.8 | 127 |
| 16.0 | 106 | 156 |
| 19.0 | 157 | 221 |
| 22.0 | 213 | 295 |
| 25.4 | 278 | 380 |
| 28.5 | 357 | 474 |
Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.
