Bucket Chain Dredger


Product Description

Bucket Chain Dredger

Bucket chain dredgers have good ability to fit different kinds of  geologic structure. With the advantages of stable performance, long working life,low cost, high efficiency and little maintenance, bucket chain dredger is suitable for sand digging from river and lake. This kind of dredger can also be used in salt mining, offshore dredging, hard riverbed exploiting and channel cleanning. The pure sand after being sieved and washed by the dredger is widely used in construction industry.

Bucket chain drdger can be equipped with ore mining machinery for gold selection or iron separation. The machinery has the features of automatic work, good extraction rate and high capacity.


1) Best Price, low cost

2) Energy-efficient

3) Outstanding durability; reliable performance

4) Easy transportation

5) Long service life and warranty

6) High quality

7) Long service life and warranty

8) Service traning

Technical Parameter

Dredger LOA 23.0m
Hull Size (L*B*H) 20.0*4.5*1.0m
Structure Can be dismantled and re-assemble easily, box structure, lower delivery cost
Main engine brand Weichai
Main engine power 75kw
Max.dreging depth 8m
Draught 0.6m
Max. capacity 60m3/h
Chain bucket quantity 64pcs
Chain bucket speed 15.2m/min
Chain material Mn13Cr2
Chain quantity 128pcs
Total fuel consumption 14L/h

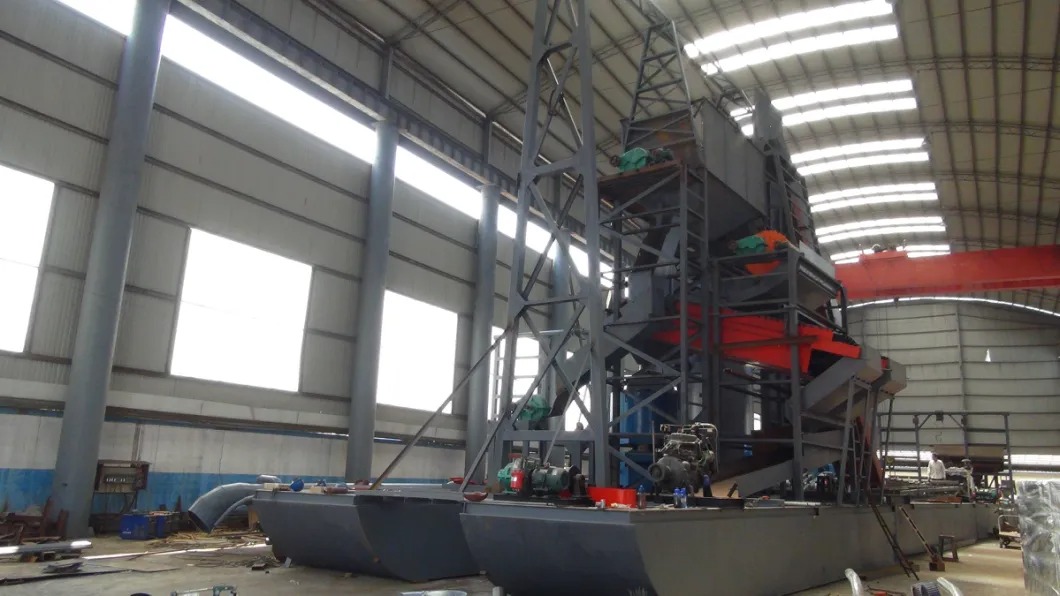

China Bucket Chain Dredger for Gold Mining for_yyth (3)
