Product Description

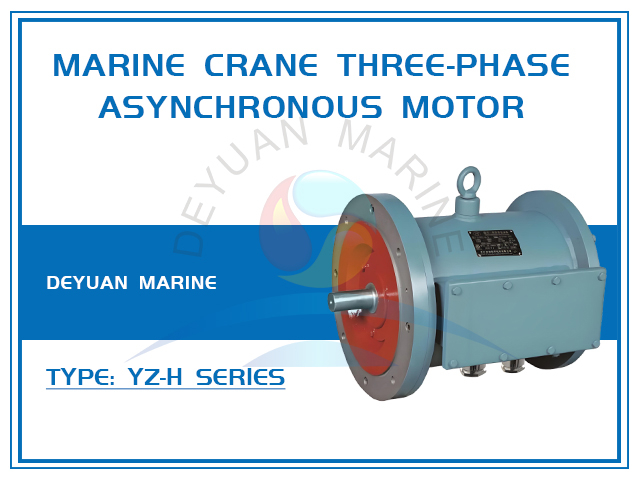

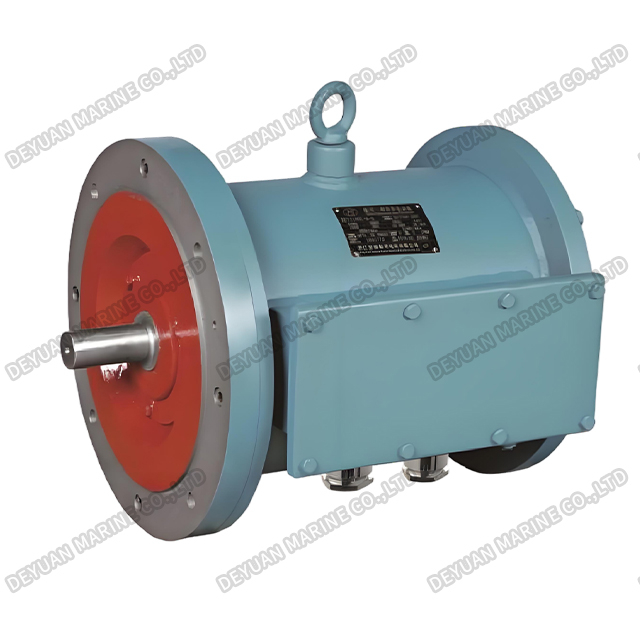

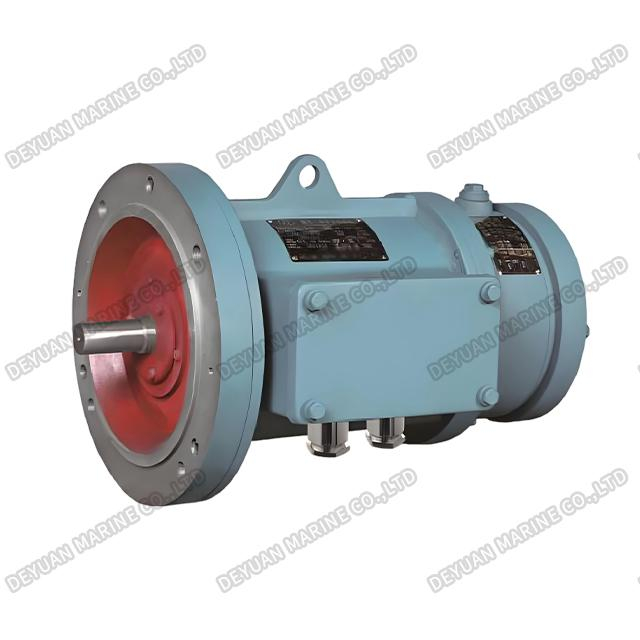

YZ-H Series Marine Crane Three-Phase Asynchronous Motor (Single-Speed,Double-Speed)
Product introduction
YZ-H series three- phase asynchronous motor is in accordance with the national standard GB755 "rotary motor performance and quota", GB/ T7060 "marine rotary motor basic technical requirements", JB/ T7597.1"YZ-H series of marine crane with three-phase asynchronous motor technology" design and manufacture, with good performance, small size, low noise, reliable, easy maintenance and so on. Applicable to all types of ships for short When the quota of the deck mechanical electric drive. Such as windlass, winch and winch, etc., but also for the operation of the cradle less frequently.
Ambient Conditions
Ambient Temperature: - 25~+45℃
Cycle Rolling:士22.5°
Air Relative Humidity:≤95%
Elevation: 0m
Trim: 10°
Single Speed Motor
Shock, Vibration: Exists
Heeling: 15°
Gel, Salt Spray, Oil Mist: Exists
Technical Data
| Project Model | Mode of operation S2-min | Ratedoutput (KW) | Rated speed (r/min) | Rated current (A) | DC electromagnetic brake | |||||
| 380V 50Hz | 440V 60Hz | 380V 50Hz | 440V 60Hz | 380V 50Hz | 440V 60Hz | Voltage (V) | Current (A) | Braking forcedistance （N.m） | ||
| YZ112S-4-H | 30 | 1.5 | 1.8 | 1360 | 1632 | 4.3 | 4.5 | 110 | 1.37 | 33 |
| YZ112M-4-H | 30 | 2.2 | 2.5 | 1360 | 1630 | 6.0 | 5.92 | 110 | 1.37 | 33 |
| YZ112L-4-H | 30 | 3.7 | 4 | 1360 | 1630 | 9.6 | 8.98 | 110 | 1.37 | 33 |
| YZ112S-6-H | 30 | 1.1 | 1.2 | 890 | 1068 | 3.5 | 3.31 | 110 | 1.37 | 33 |
| YZ112M-6-H | 30 | 1.5 | 1.8 | 890 | 1068 | 4.65 | 4.82 | 110 | 1.37 | 33 |
| YZ112L-6-H | 30 | 2.2 | 2.5 | 890 | 1068 | 6.6 | 6.51 | 110 | 1.37 | 33 |
| YZ132M1-4-H | 30 | 5.5 | 6.3 | 1356 | 1627 | 13.4 | 13.25 | 110 | 1.56 | 72 |
| YZ132M2-4-H | 30 | 7.5 | 8.5 | 1360 | 1630 | 18.5 | 17.88 | 110 | 1.56 | 72 |
| YZ132S-6-H | 30 | 3.7 | 4 | 940 | 1128 | 10.5 | 9.85 | 110 | 1.56 | 72 |
| YZ132M2-6-H | 30 | 5.5 | 6.3 | 940 | 1128 | 15.3 | 15.10 | 110 | 1.56 | 72 |
| YZ160S-6-H | 30 | 7.5 | 8.5 | 940 | 1128 | 19.7 | 19.31 | 110 | 1.61 | 160 |
| YZ160L-6-H | 30 | 11 | 13 | 940 | 1128 | 26.8 | 27.34 | 110 | 1.61 | 160 |
| YZ180L-6-H | 30 | 15 | 18.5 | 960 | 1152 | 36 | 38.42 | 110 | 2.24 | 203 |
| YZ200M-6-H | 30 | 18.5 | 22 | 950 | 1140 | 43.9 | 45.13 | 110 | 2.23 | 260 |
| YZ225S-6-H | 30 | 22 | 25 | 950 | 1140 | 50.9 | 50.03 | 110 | 2.16 | 470 |
Two-speed motor main technical data
| Project Model | Mode of operation S2-min | Ratedoutput (kW) | Rated speed (r/min) | Ratedcurrent （A） | DC electromagnetic brake | |||||
| 380V 50Hz | 440V 60Hz | 380V 50Hz | 440V 60Hz | 380V 50Hz | 440V 60Hz | Voltage (V) | Current (A) | Braking forcedistance (N.m) | ||
| YZ112L-4/12-H | 30/10 | 2.2/0.75 | 2.5/0.85 | 1350/430 | 1660/530 | 6.5/5.4 | 6.4/5.3 | 110 | 1.37 | 33 |
| YZ132M-4/12-H | 30/10 | 3/1.1 | 3.5/1.2 | 1360/430 | 1660/530 | 8.4/7.6 | 8.4/7.1 | 110 | 1.56 | 72 |
| YZ132L-4/12-H | 30/10 | 4/1.5 | 4.5/1.7 | 1400/430 | 1700/530 | 10.3/9.1 | 10/9 | 110 | 1.56 | 72 |
| YZ160L-4/12-H | 30/10 | 6.3/2.2 | 7.5/2.5 | 1394/426 | 1690/530 | 15.4/11.9 | 16.2/11.7 | 110 | 1.61 | 160 |
| YZ180L-4/12-H | 30/10 | 8.5/3.5 | 10/4.0 | 1400/438 | 1690/520 | 19/18 | 20.5/17.7 | 110 | 2.24 | 203 |
| YZ180L-4/16-H | 30/15 | 11/3.0 | 13/3.5 | 1424/328 | 1742/380 | 24/16 | 26.8/16.7 | 110 | 2.24 | 203 |
| YZ200M-4/16-H | 30/15 | 15/4.0 | 17/4.5 | 1420/340 | 1740/400 | 32.8/24.1 | 33.2/23.4 | 110 | 2.23 | 260 |
| YZ200L-4/16-H | 30/15 | 18.5/5.5 | 22/6.3 | 1420/340 | 1740/410 | 40.4/32.6 | 42.4/32.3 | 110 | 2.23 | 260 |

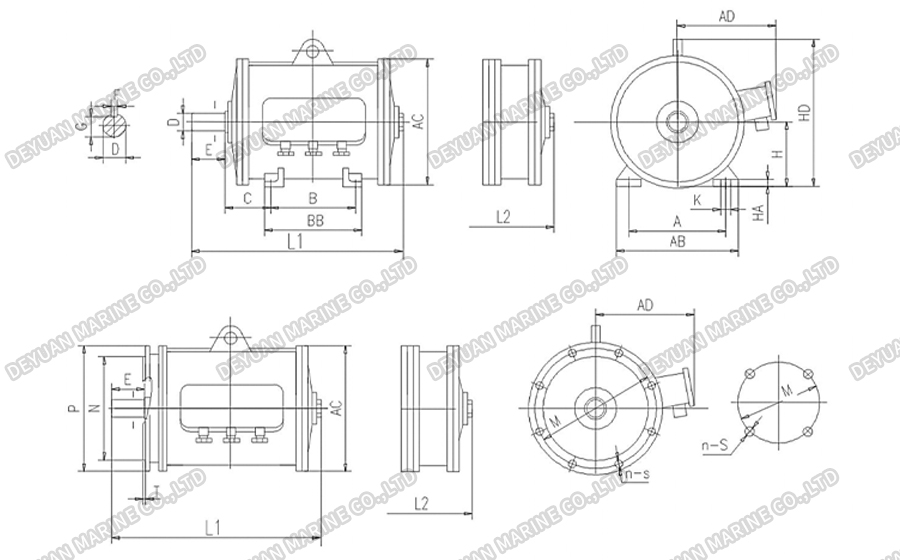

Mounting and overall dimensions
| Frame No | Mounting dimensions | Overall dimensions | Weight (kg) | ||||||||||||||||||
| A | B | C | D | E | F | H | K | M | N | P | S | T | n | AB | AD | BB | L1 | L2 | L1 | L2 | |
| 112S | 190 | 114 | 70 | 28 | 60 | 8 | 112 | 12 | 265 | 230 | 300 | 15 | 4 | 4 | 235 | 180 | 152 | 315 | 435 | 42 | 62 |
| 112M | 190 | 140 | 70 | 28 | 60 | 8 | 112 | 12 | 265 | 230 | 300 | 15 | 4 | 4 | 235 | 180 | 178 | 340 | 460 | 46 | 66 |
| 112L | 190 | 159 | 70 | 28 | 60 | 8 | 112 | 12 | 265 | 230 | 300 | 15 | 4 | 4 | 235 | 180 | 197 | 360 | 490 | 49 | 74 |
| 132S | 216 | 140 | 89 | 38 | 80 | 10 | 132 | 12 | 265 | 230 | 300 | 15 | 4 | 4 | 259 | 210 | 207 | 415 | 545 | 63 | 99 |
| 132M | 216 | 178 | 89 | 38 | 80 | 10 | 132 | 12 | 265 | 230 | 300 | 15 | 4 | 4 | 259 | 210 | 218 | 450 | 590 | 78 | 113 |
| 132L | 216 | 203 | 89 | 38 | 80 | 10 | 132 | 12 | 265 | 230 | 300 | 15 | 4 | 4 | 259 | 210 | 243 | 485 | 615 | 86 | 122 |
| 160S | 254 | 178 | 108 | 42 | 110 | 12 | 160 | 15 | 300 | 250 | 350 | 19 | 5 | 4 | 303 | 258 | 226 | 510 | 650 | 120 | 145 |
| 160L | 254 | 254 | 108 | 42 | 110 | 12 | 160 | 15 | 300 | 250 | 350 | 19 | 5 | 4 | 303 | 258 | 302 | 590 | 740 | 140 | 165 |
| 180L | 279 | 279 | 121 | 48 | 110 | 14 | 180 | 15 | 350 | 300 | 400 | 19 | 5 | 4 | 341 | 275 | 342 | 630 | 810 | 220 | 260 |
| 200M | 318 | 267 | 133 | 48 | 110 | 14 | 200 | 19 | 400 | 350 | 450 | 19 | 5 | 8 | 385 | 295 | 337 | 660 | 810 | 240 | 330 |
| 200L | 318 | 305 | 133 | 48 | 110 | 14 | 200 | 19 | 400 | 350 | 450 | 19 | 5 | 8 | 385 | 295 | 337 | 706 | 846 | 280 | 380 |
| 225S | 356 | 286 | 149 | 55 | 110 | 16 | 225 | 19 | 500 | 450 | 550 | 19 | 5 | 8 | 435 | 325 | 386 | 730 | 890 | 275 | 375 |
