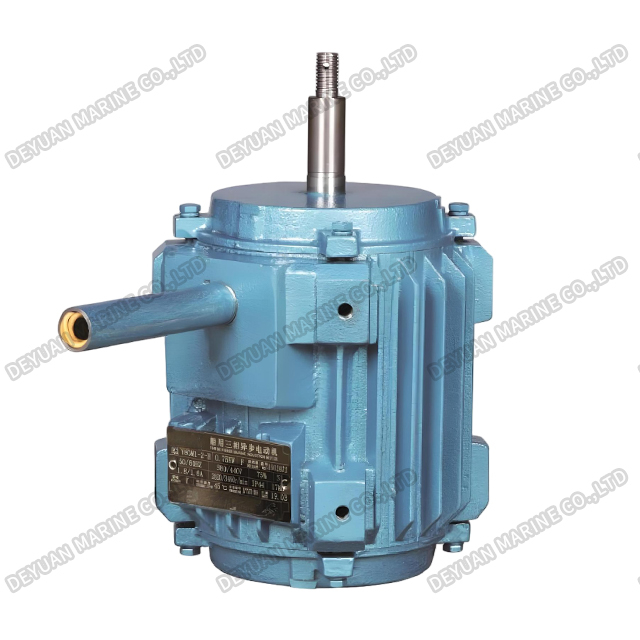

The Y-H Series Marine Flows The Breeze Machine To Three-Phase Marine Flameproof Motors
Product introduction
Y-H series three phase asynchronous motor for marine axial-flow fan is a special motor designed for marine fan. Except for the shape and installation size, other performance indicators are the same as Y-H series motors.
Z-H series motors are fully enclosed squirrel cage motors, which have the advantages of high efficiency, energy saving, high starting torque,good performance and low noise.
Ambient Conditions
Temperature of Ambient air:-15°C~45°C
Altitude:0m
Rated Frequency:50Hz or 60Hz
Rated Voltage:380V or 440V
Connection:Below 3kW is Y
Other power is △
Duty Type:Continuous S1
Technical Data
Type | Power (kW) | Electric Current (A) | Speed (r/min) | Type | Power (kW) | Electric Current (A) | Speed (r/min) |
| YS631-2-H | 0.18 | 0.51 | 2820 | Y160M-4-H | 11 | 22.6 | 1460 |
| YS632-2-H | 0.25 | 0.68 | 2820 | Y160L-4-H | 15 | 30.3 | 1460 |
| YS711-2-H | 0.37 | 0.95 | 2820 | Y180M-4-H | 18.5 | 35.9 | 1470 |
| YS712-2-H | 0.55 | 1.33 | 2820 | Y180L-4-H | 22 | 42.2 | 1470 |
| Y80M1-2-H | 0.75 | 1.8 | 2820 | Y200L-4-H | 30 | 57.3 | 1480 |
| Y80M2-2-H | 1.1 | 2.5 | 2820 | Y225S-4-H | 37 | 70.2 | 1480 |
| Y90S-2-H | 1.5 | 3.4 | 2840 | Y225M-4-H | 45 | 84.0 | 1480 |
| Y90L-2-H | 2.2 | 4.7 | 2840 | YS711-6-H | 0.18 | 0.71 | 920 |
| Y100L-2-H | 3.0 | 6.4 | 2880 | YS712-6-H | 0.25 | 0.92 | 920 |
| Y112M-2-H | 4.0 | 8.2 | 2890 | Y90S-6-H | 0.75 | 2.3 | 910 |
| Y132S1-2-H | 5.5 | 11.1 | 2900 | Y90L-6-H | 1.1 | 3.2 | 910 |
| Y132S2-2-H | 7.5 | 15.0 | 2900 | Y100L-6-H | 1.5 | 4.0 | 940 |
| Y160M1-2-H | 11 | 21.8 | 2930 | Y112M-6-H | 2.2 | 5.8 | 940 |
| Y160M2-2-H | 15 | 29.4 | 2930 | Y132S-6-H | 3.0 | 7.2 | 960 |
| Y160L-2-H | 18.5 | 35.5 | 2940 | Y132M1-6-H | 4.0 | 9.5 | 960 |
| Y180M-2-H | 22 | 35.5 | 2955 | Y132M2-6-H | 5.5 | 12.5 | 960 |
| Y200L1-2-H | 30 | 35.5 | 2960 | Y160M-6-H | 7.5 | 17.1 | 970 |
| Y200L2-2-H | 37 | 35.5 | 2960 | Y160L-6-H | 11 | 25.0 | 970 |
| Y225S-2-H | 45 | 35.5 | 2970 | Y180M-6-H | 15 | 33.0 | 970 |
| YS631-4-H | 0.12 | 0.44 | 1400 | Y200L-6-H | 18.5 | 37.6 | 980 |
| YS632-4-H | 0.18 | 0.62 | 1400 | Y200L-6-H | 22 | 44.7 | 980 |
| YS711-4-H | 0.25 | 0.76 | 1400 | Y225S-6-H | 30 | 61.1 | 990 |
| YS712-4-H | 0.37 | 1.07 | 1400 | Y132S-8-H | 2.2 | 5.8 | 710 |
| Y801-4-H | 0.55 | 1.5 | 1390 | Y132M-8-H | 3.0 | 7.7 | 710 |
| Y802-4-H | 0.75 | 2.1 | 1390 | Y160M1-8-H | 4.0 | 9.9 | 720 |
| Y90S-4-H | 1.1 | 2.7 | 1400 | Y160M2-8-H | 5.5 | 13.3 | 720 |
| Y90L-4-H | 1.5 | 3.6 | 1400 | Y160L-8-H | 7.5 | 17.7 | 720 |
| Y100L1-4-H | 2.2 | 5.0 | 1420 | Y180L-8-H | 11 | 25.6 | 730 |
| Y100L2-4-H | 3 | 6.8 | 1420 | Y200L-8-H | 15 | 33.3 | 730 |
| Y112M-4-H | 4 | 8.9 | 1440 | Y225S-8-H | 18.5 | 40.3 | 730 |
| Y132S-4-H | 5.5 | 11.7 | 1440 | Y225M-8-H | 22 | 47.4 | 740 |
| Y132M-4-H | 7.5 | 15.4 | 1440 |

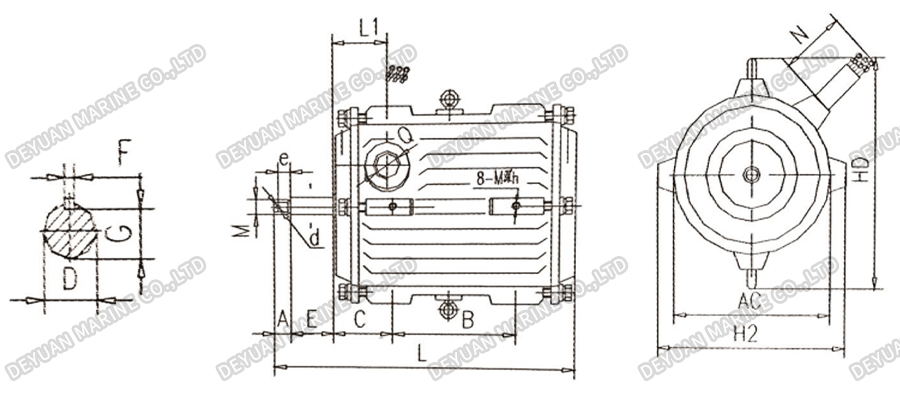

Mounting and overall dimensions
Frame size | Mounting and overall dimensions | |||||||||||||||||
| A | B | C | D | E | F | G | e | d | H2 | L1 | Q | N | M deep h | M | L | AC | HD | |
| 63 | 16 | 80 | 40 | 14 | 30 | 5 | 11 | 10 | 2.7 | 140 | 40 | 3/4" | 200 | M 8 deep 1 2 | M8 | 200 | 102 | 140 |
| 71 | 90 | 45 | 155 | 45 | 200 | M 8 deep 1 4 | 220 | 104 | 155 | |||||||||
| 80 | 22 | 100 | 50 | 19 | 40 | 6 | 15.5 | 16 | 3.2 | 175 | 50 | 240 | M 8 deep 2 0 | M12 | 270 | 134 | 175 | |
| 90S | 28 | 100 | 56 | 24 | 50 | 8 | 20 | 20 | 4.2 | 190 | 56 | 240 | M 1 0 deep 2 0 | M16 | 295 | 144 | 190 | |
| 90L | 135 | 300 | M 1 2 deep 2 0 | 330 | ||||||||||||||
| 100L | 32 | 155 | 55.5 | 28 | 60 | 8 | 24 | 24 | 4.2 | 215 | 55.5 | 340 | M20 | 365 | 169 | 215 | ||
| 112M | 32 | 160 | 60 | 255 | 60 | 330 | M 1 2 deep 2 0 | 375 | 190 | 290 | ||||||||
| 132S | 39 | 182 | 68 | 38 | 80 | 10 | 33 | 31 | 6.2 | 290 | 68 | G1" | 400 | M 1 6 deep 2 0 | M30 | 450 | 226 | 330 |
| 132M | 220 | 450 | 490 | |||||||||||||||
| 160M | 40 | 210 | 108 | 42 | 110 | 12 | 37 | 346 | 108 | 475 | M 1 6 deep 2 4 | 580 | 278 | 400 | ||||
| 160L | 254 | 630 | 620 | |||||||||||||||
| 180M | 270 | 121 | 48 | 14 | 42.5 | 380 | 121 | 650 | M 1 6 deep 2 0 | 660 | 310 | 490 | ||||||
| 180L | 310 | 700 | ||||||||||||||||
| 200L | 50 | 340 | 133 | 55 | 16 | 49 | 420 | 133 | G1.25" | M 1 6 deep 2 0 | M36 | 780 | 349 | 475 | ||||
| 225S | 330 | 162 | 60 | 18 | 53 | 36 | 470 | 162 | 800 | M 2 0 deep 2 0 | 820 | 392 | 580 | |||||
| 225M | 350 | 835 | ||||||||||||||||
