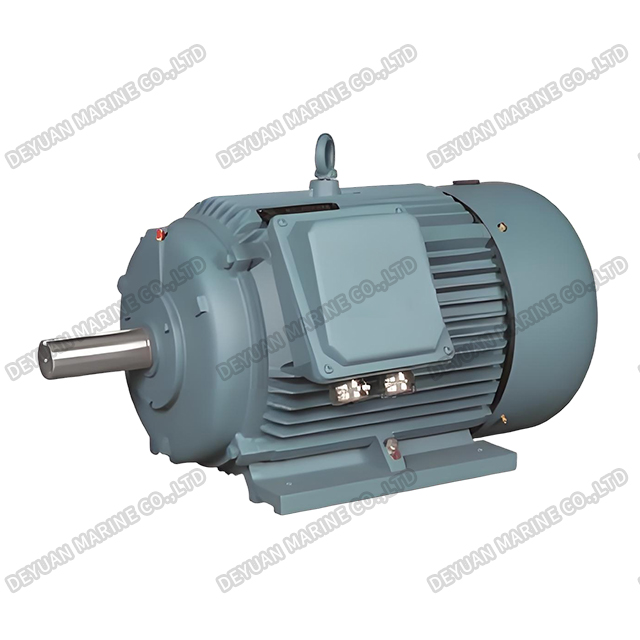

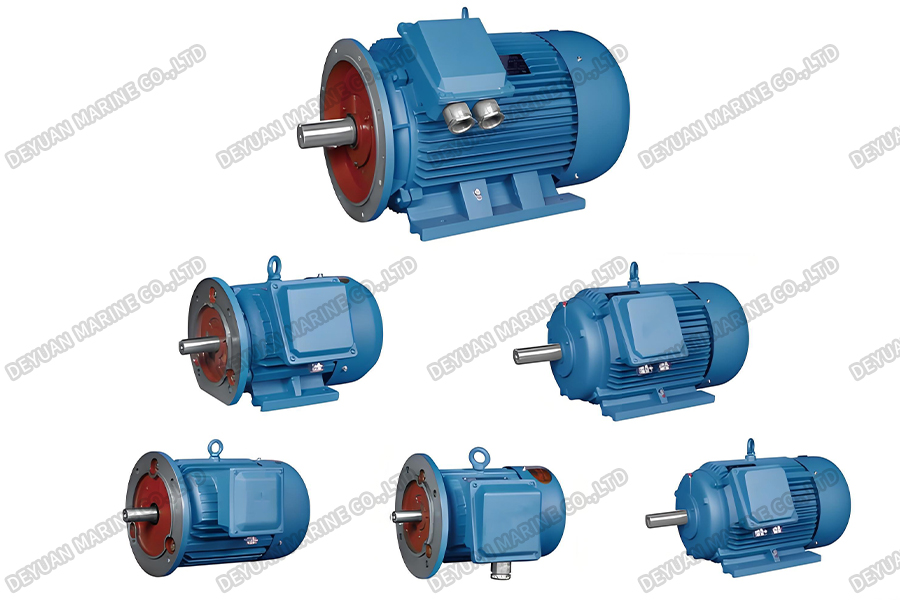

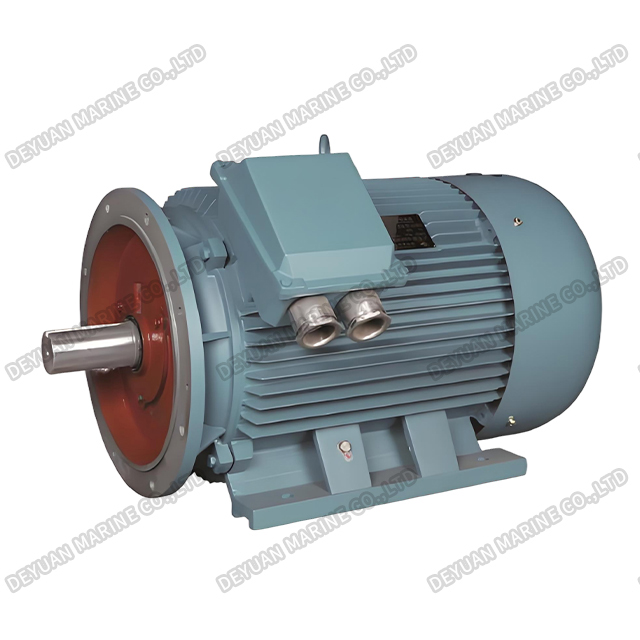

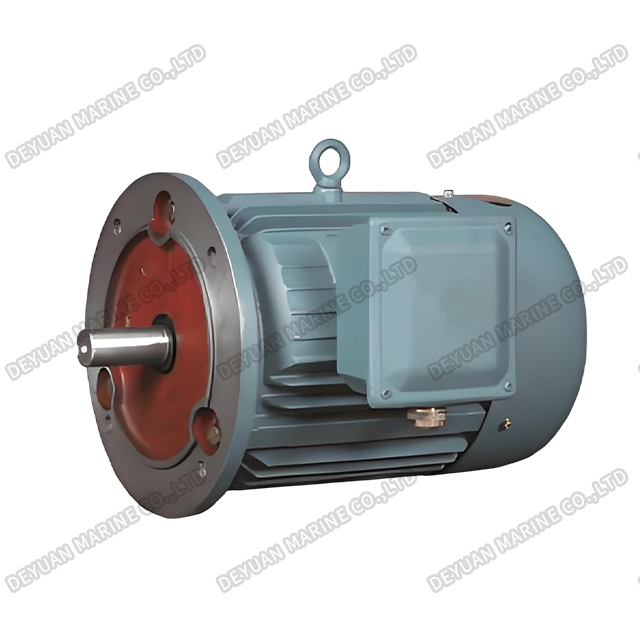

Y-H Series Three Phase Marine Motor

Product introduction

The Y-H series are fully enclosed, self-cooling, marine three-phase cage asynchronous motors, suitable for driving various machinery on the ship,such as pumps, ventilators, separators, hydraulic machinery and other auxiliary equipment.

The Y-H series is designed according to the International Electrotechnical Commission standard lEC60034-1"Quota and performance of rotating electrical machines" and the current "Code for Classification and Construction of Steel Sea Ships".

Construction

1.Protectionlp44

2.Frame,end shield and bearing cap

Al made of Grey cast iron HT200 (GB/T9437) and the outer surface of the frame is provided with longitudinal cooling ribs to increase cooling effects.

3.Shaft extension

standard motors have a cylindrical shaft extension, Motors of 83 and B35 type with two shaft extensions are afforded on request. but the second shaft extension can only transmit rated output with direct coupling. The shaft is made of high grade steel No 45 (GB/T699).

4.Terminal Box

The terminal box is arranged at the "right hand side" when looking at the driving end. if the terminal box is to be arranged at the left-hand side,this fact must be specifically stated when placing the order. Six terminal studs are provided in the terminal box and a connecting diagram is shown on the back of the cover. Terminal markings used are in full conformity with lEC publication 34-8.clearance between two neighboring conducting parts is made not less than 8mm and all creepages not less than 12mm. An extra terminal is provided inside the box for grounding purpose.

5.Bearing

The type and size of bearings used in these motors are given in table

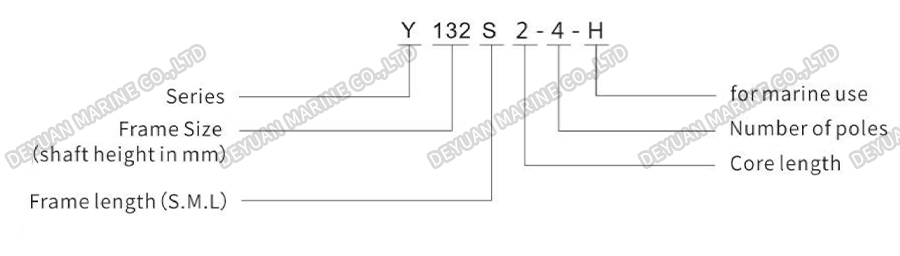

Type Designation

Mounting Arrangements

Mounting arrangements available for various frame sizes are shown in table .

B3:Horizontal,foot-mounted

B5:Horizontal flange-mounted

B35:Horizontal,foot and flange mounted

V1:Vertical, flange mounted

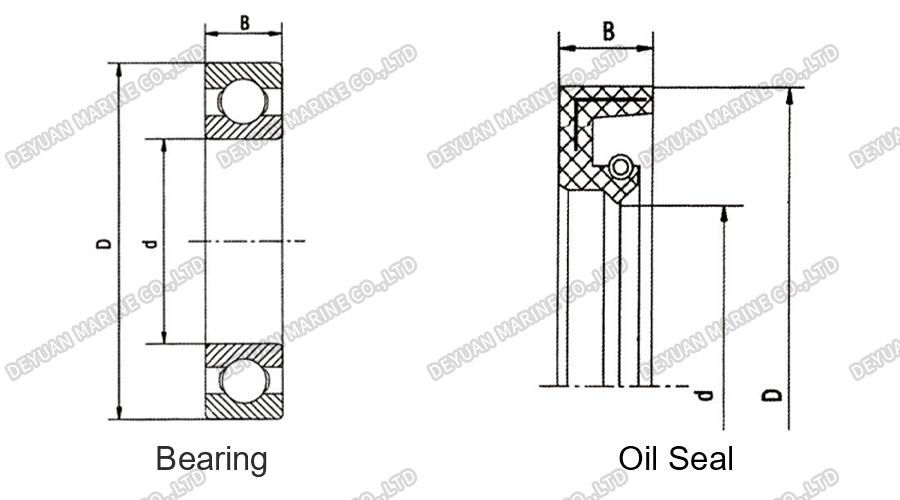

Bearing,Oil Seal

Bearing Data

Frame size	Shaft extension end	Non-Shaft extension end	d	D	B
80	62042Z	62042Z	20	47	14
90	62052Z	62052Z	25	52	15
100	62062Z	62062Z	30	62	16
112	62062Z	62062Z	30	72	19
132	63082Z	63082Z	40	90	23
160	6309	6309	45	100	25
160(V1)	6309	7309	45	100	25
180	6311	6311	55	120	29
180(V1)	6311	7311	55	120	29
200	6312	6312	60	130	31
200(V1)	6312	7312	60	130	31
225	6313	6313	65	140	33
225(V1)	6313	7313	65	140	33
250	6314	6314	70	150	35
250(V1)	6314	7314	70	150	35
2802P	6314	6314	70	150	35
2802P(V1)	6314	7314	70	150	35
2804-8P	6317	6317	85	180	41
2804-8P(V1)	6317	7317	85	180	41
3152P(B3,B35)	6316	6316	80	170	39
3152P(V1)	6316	7316	80	170	39
3154-8P(B3,B35)	N319	6319	95	200	45
3154-8P(V1)	N319	7319	95	200	45

Oil Seal Data

Frame size	Shaft extension end			Shaft extension end
Frame size	d	D	B	d	D	B
80	20	35	5	20	35	5
90	25	40	5	25	40	5
100	30	52	7	30	52	7
112	30	52	7	30	52	7
132	40	62	5	40	62	5
160	45	65	8	45	65	8
180	55	75	8	55	75	8
200	60	80	8	60	80	8
225	65	90	10	65	90	10
250	70	95	10	70	95	10
280 2P	70	95	10	70	95	10
280 4-8P	85	110	12	80	100	10
315 2P	80	100	10	80	100	10
315 4-8P	95	120	12	95	120	12

Impregnation and Surface Treatment

The motor windings impregnated and well treated to obtain the adequate damp-proof, anti-fungus and anti-salt-mist properties in accordance with the specifications for humid-tropic machines.

Frame Size	80～132	160~225	250~355
Vibration intensity(effective value)(mm/s)	1.8	2.8	3.5

Technical Data

2-Pale

Type	Rated output		Rated current(A)		Rated speed (r/min)		Locked-rotor torque Rated torque		Maximum torque Ratedtorque		Locked rotor apparent power Rated output		Effciency (%)		Power factor		Weight（kg）
	KW	HP	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V
	KW	HP	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V
Y80M1-2-H	0.75	1	1.8	1.6	2820	3460	1.9		2.1		13		75.0	76.5	0.84	0.82	17
Y80M2-2-H	1.1	1.5	2.6	2.2	2820	3460							76.5	77.5	0.85	0.85	19
Y90S-2-H	1.5	2	3.5	3.1	2840	3470							79.5	80.0	0.82	0.80	23
Y90L-2-H	2.2	3	4.9	4.3	2840	3470							82.5	83.5	0.83	0.81	26
Y100L-2-H	3	4	6.2	5.4	2880	3490							84.0	84.0	0.87	0.86	33
Y112M-2-H	4	5.5	8.2	7.2	2890	3500							86.5	87.0	0.86	0.84	46
Y132S1-2-H	5.5	7.5	11	9.6	2900	3520	1.5		1.8				86.5	86.0	0.88	0.87	78
Y132S2-2-H	7.5	10	14.6	12.9	2900	3520	1.5				12		87.5	87.0	0.89	0.88	90
Y160M1-2-H	11	15	21.6	18.7	2930	3540	1.8						89.0	88.5	0.87	0.87	120
Y160M2-2-H	15	20	28.9	25.1	2930	3540							89.0	90.0	0.88	0.88	135
Y160L-2-H	18.5	25	35.7	30.3	2940	3550							89.5	90.0	0.88	0.89	160
Y180M-2-H	22	30	42.2	36.9	2955	3560							89.5	89.0	0.88	0.88	180
Y200L1-2-H	30	40	57.9	50.3	2960	3560	1.7				11		89.5	89.0	0.88	0.88	215
Y200L2-2-H	37	50	69.4	60.3	2960	3570							92.0	91.5	0.88	0.88	245
Y225M-2-H	45	60	85.9	76.3	2970	3580							90.5	90.5	0.88	0.86	330
Y250M-2-H	55	75	103.2	91.7	2970	3580							92.0	90.5	0.88	0.87	400
Y280S-2-H	75	100	139.2	120.9	2970	3580							92.0	91.5	0.89	0.89	535
Y280M-2-H	90	125	167.1	143.5	2970	3580	1.4						93.0	92.5	0.88	0.89	550
Y315S-2-H	110	150	203.01	180.24	2970	3580					10		92.5	91	0.89	0.88	980
Y315M-2-H	132	175	242.30	215.11	2970	3580							93.0	91.5	0.89	0.88	1080
Y315L1-2-H	160	220	292.13	259.32	2970	3580							93.5	92	0.89	0.88	1160
Y315L2-2-H	200	270	365.16	324.15	2970	3580							93.5	92	0.89	0.88	1260
Y355M-2-H	250	350	451.38	400.63	2970	3580	11		1.9				93.5	92	0.90	0.89	1600
Y355L-2-H	315	422	565.71	502.07	2970	3580	11		1.9				94.0	92.5	0.90	0.89	1800

4-Pale

Type	Rated output		Rated current(A)		Rated speed (r/min)		Locked-rotor torque Rated torque		Maximum torque Ratedtorque		Locked rotor apparentpower Rated output		Effciency (%)		Power factor		Weight（kg）
Type	kW	HP	50Hz 380V	60Hz 440V	50Hz 380V	60HZ 440V	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V	Weight（kg）
Y80M1-4-H	0.55	0.7	1.5	1.4	1390	1710	2.0		2.1		13		72.5	74.0	0.75	0.71	17
Y80M1-4-H	0.75	1	2.1	1.8	1390	1710	1.9						74.0	76.0	0.75	0.72	19
Y90S-4-H	1.1	1.5	2.7	2.4	1400	1710							78.0	79.0	0.78	0.75	23
Y90L-4-H	1.5	2	3.6	3.2	1400	1710							79.0	80.5	0.80	0.77	26
Y100L1-4-H	2.2	3	5.0	4.5	1420	1730							81.5	82.5	0.81	0.78	36
Y100L1-4-H	3	4	6.8	5.9	1420	1730							83.0	85.0	0.81	0.78	39
Y112M-4-H	4	5.5	8.9	7.7	1440	1750							84.5	86.0	0.81	0.79	47
Y132S-4-H	5.5	7.5	11.7	10	1440	1750							86.0	88.0	0.83	0.82	78
Y132M-4-H	7.5	10	15.4	13.2	1440	1750	1.8		2.0				87.0	88.5	0.85	0.84	98
Y160M-4-H	11	15	22.6	19.5	1460	1760					12		88.5	89.0	0.83	0.83	123
Y160L-4-H	15	20	30.5	26.3	1460	1760							89.0	90.0	0.84	0.83	152
Y180M-4-H	18.5	25	35.9	30.8	1470	1770							91.0	91.5	0.86	0.86	180
Y180L-4-H	22	30	42.2	36.9	1470	1770							91.0	91.0	0.87	0.86	200
Y200L-4-H	30	40	57.3	49.8	1480	1780	1.7		1.9		11		91.5	92.0	0.87	0.86	260
Y225S-4-H	37	50	70.2	60.3	1480	1780							92.0	92.5	0.87	0.87	321
Y225M-4-H	45	60	84.0	73.4	1480	1780							92.5	92.5	0.88	0.87	355
Y250M-4-H	55	75	103.8	88.7	1480	1780							92.5	92.5	0.88	0.88	417
Y280S-4-H	75	100	139.2	120	1480	1790							93.0	92.5	0.88	0.88	550
Y280M-4-H	90	125	164.3	141.9	1480	1790							93.5	93.5	0.89	0.89	650
Y315S-4-H	110	150	200.84	177.32	1480	1790	1.6						93.5	92.5	0.89	0.88	1000
Y315M-4-H	132	175	239.72	211.64	1480	1790	1.4		1.8		10		94.0	93	0.89	0.88	1100
Y315L1-4-H	160	220	289.04	255.16	1480	1790							94.5	93.5	0.89	0.88	1160
Y315L2-4-H	200	270	361.30	318.95	1480	1790							94.5	93.5	0.89	0.88	1260
Y355M-4-H	250	350	464.46	410.15	1480	1790	1.2		1.9				94.0	93	0.87	0.86	1600
Y355L1-4-H	315	422	582.12	514.03	1480	1790							94.5	93.5	0.87	0.86	1800
Y355L2-4-H	350	466	662.3	571.1	1480	1790							94.5	93.5	0.9	0.87	2000

6-Pale

Type	Rated output		Rated current(A)		Rated speed (r/min)		Locked-rotor torque Rated torque		Maximum torque Ratedtorque		Locked rotor apparent power Rated output		Effciency (%)		Power factor		Weight（kg）
	Rated output		Rated current(A)		Rated speed (r/min)		Locked-rotor torque Rated torque		Maximum torque Ratedtorque		Locked rotor apparent power Rated output		Effciency (%)		Power factor
	KW	HP	50Hz 380V	60Hz 440V	50Hz 380V	60HZ 440V	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V
Y90S-6-H	0.75	1	2.2	2.0	910	1130	1.8		2.0		13		72.5	74.0	0.70	0.67	20
Y90L-6-H	1.1	1.5	3.2	2.9	910	1130							72.5	74.0	0.71	0.68	24
Y100L-6-H	1.5	2	4.0	3.5	940	1150							77.5	79.5	0.73	0.70	33
Y112M-6-H	2.2	3	5.8	5.2	940	1150							79.5	82.0	0.72	0.68	47
Y132S-6-H	3	4	7.2	6.4	960	1170							83.5	83.5	0.76	0.74	66
Y132M1-6-H	4	5.5	9.5	8.2	960	1170							84.0	86.0	0.76	0.74	80
Y132M2-6-H	5.5	7.5	12.5	10.7	960	1170							86.0	87.5	0.78	0.77	90
Y160M-6-H	7.5	10	17.1	14.8	970	1170	1.7		1.9		12		87.5	88.5	0.76	0.75	100
Y160L-6-H	11	15	25.0	21.7	970	1170							88.0	88.5	0.76	0.75	125
Y180L-6-H	15	20	33.0	29.3	970	1180							88.5	88.5	0.78	0.76	195
Y200L1-6-H	18.5	25	37.6	32.7	980	1180							90.0	90.5	0.83	0.82	225
Y200L2-6-H	22	30	44.7	38.9	980	1180							90.0	90.5	0.83	0.82	275
Y225M-6-H	30	40	61.1	53.1	990	1190	1.5		1.9		11		91.0	91.5	0.82	0.81	325
Y250M-6-H	37	50	71.0	61.3	980	1180							91.0	91.0	0.87	0.87	430
Y280S-6-H	45	60	86.4	74.6	980	1190							92.0	92.0	0.86	0.85	505
Y280M-6-H	55	75	103.2	89.7	980	1190							92.0	92.5	0.88	0.87	540
Y315S-6-H	75	100	141.14	123.98	980	1190	1.2		1.7				92.8	92.3	0.87	0.86	990
Y315M-6-H	90	125	168.64	148.13	980	1190							93.2	92.7	0.87	0.86	1080
Y315L1-6-H	110	150	205.46	180.47	980	1190							93.5	93	0.87	0.86	1150
Y315L2-6-H	132	175	245.76	215.86	980	1190					10		93.8	93.3	0.87	0.86	1210
Y355M1-6-H	160	220	302.00	265.30	980	1190	1.1		1.8				93.6	93.1	0.87	0.85	1500
Y355M2-6-H	200	270	376.69	330.91	980	1190							93.8	93.3	0.86	0.85	1700
Y355L1-6-H	250	350	468.86	411.88	980	1190							94.2	93.7	0.86	0.85	1900
Y355L2-6-H	280	373	537.88	464.53	980	1190							93.7	93.2	0.85	0.84	2100

8-Pale

Type	Rated output		Rated current(A)		Rated speed (r/min)		Locked-rotor torque Rated torque		Maximum torque Ratedtorque		Locked rotor apparent power Rated output		Effciency (%)		Power factor		Weight（kg）
Type	KW	HP	50Hz 380V	60Hz 440V	50Hz 380V	60HZ 440V	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V	50Hz 380V	60Hz 440V	Weight（kg）
Y132S-8-H	2.2	3.0	5.8	5.2	710	860	1.7		1.9		13		80.0	81.0	0.72	0.68	66
Y132M-8-H	3.0	4.0	7.6	6.8	710	860							82.5	83.5	0.73	0.69	80
Y160M1-8-H	4.0	5.5	10.5	9.1	720	870							84.0	86.0	0.69	0.67	92
Y160M2-8-H	5.5	7.5	13.4	11.5	720	870							85.5	87.0	0.73	0.72	105
Y160L-8-H	7.5	10	17.7	15.5	720	870					12		86.0	87.0	0.75	0.73	130
Y180L-8-H	11	15	25.6	22.2	730	880	1.6		1.8				87.0	88.0	0.75	0.74	175
Y200L-8-H	15	20	33.3	29.2	730	880							89.0	90.0	0.77	0.75	255
Y225S-8-H	18.5	25	40.3	35.6	740	890							90.5	91.0	0.77	0.75	300
Y225M-8-H	22	30	47.4	41.7	730	890							90.5	91.0	0.78	0.76	320
Y250M-8-H	30	40	64.7	57.1	740	890					11		91.5	92.0	0.77	0.75	420
Y280S-8-H	37	50	79.8	68.9	740	890							91.5	91.5	0.77	0.77	515
Y280M-8-H	45	60	94.8	80.8	740	890							92.5	92.5	0.78	0.79	550
Y315S-8-H	55	75	113.54	98.59	740	890	1.2		1.7				92.0	91.5	0.80	0.80	1000
Y315M-8-H	75	100	152.09	132.06	740	890							92.5	92.0	0.81	0.81	1100
Y315L1-8-H	90	125	179.31	155.69	740	890							93.0	92.5	0.82	0.82	1160
Y315L2-8-H	110	150	218.45	189.63	740	890					10		93.3	92.8	0.82	0.82	1230
Y355M1-8-H	132	175	264.8	229.93	740	890	1.1		1.8				93.5	93.0	0.81	0.81	1500
Y355M2-8-H	160	220	320.30	278.10	740	890							93.7	93.2	0.81	0.81	1600
Y355L-8-H	200	270	399.09	346.51	740	890							94.0	93.5	0.81	0.81	1800

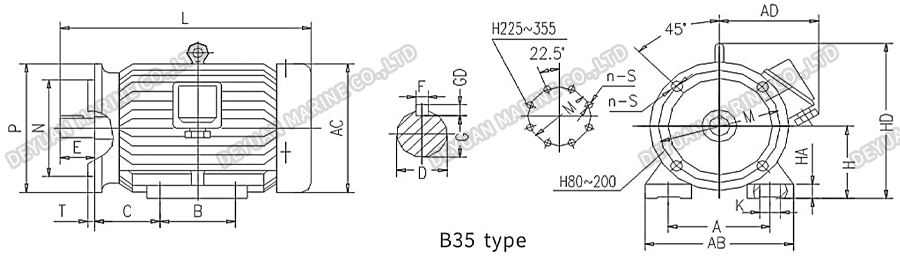

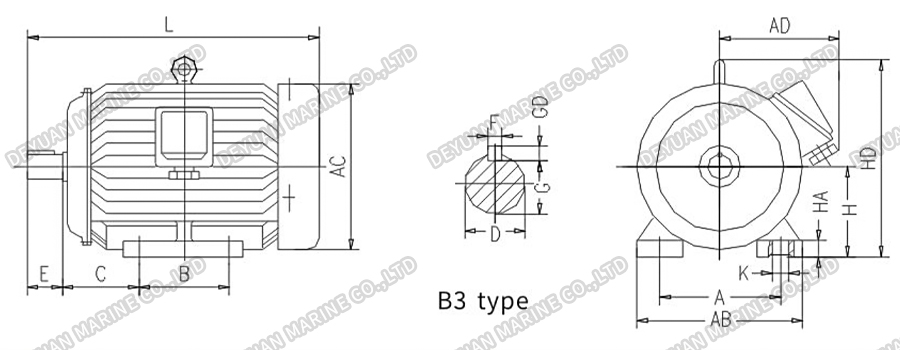

Mounting and overall dimensions

Frame size	Mounting and overall dimensions
	A	B	C	D	E	F	G	GD	H	K	AB	AC	AD	HA	HD	L
80	125	100	50	19	40	6	15.5	6	80	10	165	165	160	12	205	290
90S	140		56	24	50	8	20	7	90		180	180	175	14	225	320
90L		125														350
100L	160	140	63	28	60		24		100	12	205	205	185	16	250	385
112M	190		70						112		245	230	195	18	270	405
132S	216		89	38	80	10	33	8	132		280	270	245	20	320	480
132M		178														520
160M	254	210	108	42	110	12	37		160	15	330	325	270	22	385	605
160L		254														650
180M	279	241	121	48		14	42.5	9	180		355	360	290	24	425	670
180L		279														710
200L	318	305	133	55		16	49	10	200	19	395	400	355	28	475	780
225S	356	286	149	55/60	110/140	16/18	49/53	10/11	225		435	450	370	30	530	825
225M		311														820/850
250M	406	349	168	60/65	140	18	53/58	11	250	24	490	495	455	32	570	935
280S	457	368	190	65/75		18/20	58/67.5	11/12	280		550	550	576	38	640	1020
280M		419														1070
315S	508	406	216	65/80	170	18/22	58/71	11/14	315	28	635	645	680	51	865	1270
315M		457/508														1340
315L
355M	610	560	254	75/95		20/25	67.5/86	12/14	355	28	730	750	470	53	1035	1570
355L		630
Note:The numerators of fractionsin the table give the data of 2-pole motors and the denominators of fractions the data motors more than 2-pole。

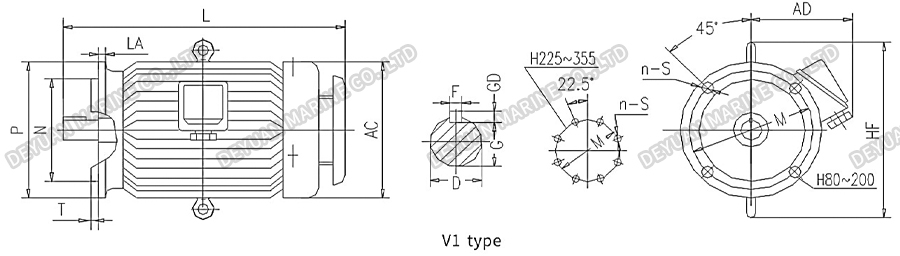

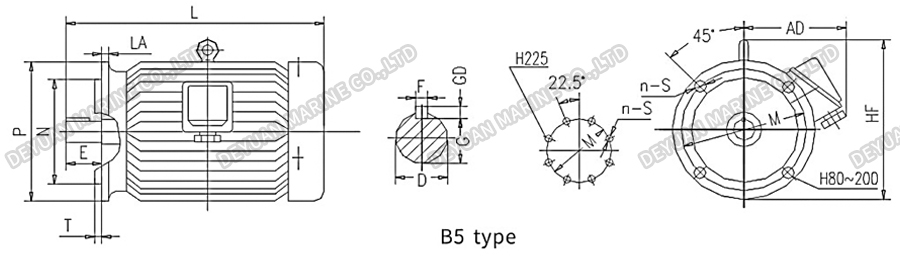

Y-H Series Three Phase Marine Motor-DEYUAN MARINE8

Frame size	Mounting and overall dimensions
	D	E	F	G	GD	M	N	P	S	T	No.of fixing holes	AC	AD	HF	LA	L
80	19	40	6	15.5	6	165	130	200	12	3.5	4	165	160	230	12	290
90S	24	50	8	20	7							180	175	235		320
90L																345
100L	28	60		24		215	180	250	15	4		205	185	275	14	385
112M												230	195	285		405
132S	38	80	10	33	8	265	230	300				270	245	340	18	480
132M																520
160M	42	110	12	37		300	250	350	19	5		325	270	400		605
160L																650
180M	48		14	42.5	9							360	290	420		670
180L																705
200L	55		16	49	10	350	300	400				400	355	470		780
225S	55/60	110/140	16/18	49/53	10/11	400	350	450			8	450	370	530	20	825
225M																820/850
Note:The numerators of fractionsin the table give the data of2-pole motors and the denominators of fractions the datamotors more than 2-pole。

Y-H Series Three Phase Marine Motor-DEYUAN MARINE9

Frame size	Mounting and overall dimensions
	A	B	C	D	E	F	G	GD	H	K	M	N	P	S	T	No.of fixing holes	AB	AC	AD HA		HD	L
80	125	100	50	19	40	6	15.5	6	80	10	165	130	200	12	3.5	4	165	165	160	12	205	290
90S	140		56	24	50	8	20	7	90								180	180	175	14	225	320
90L		125																				350
100L	160	140	63	28	60		24		100	12	215	180	250	15	4		205	205	185	16	250	385
112M	190		70						112								245	230	195	18	270	405
132S	216		89	38	80	10	33	8	132		265	230	300				280	270	245	20	320	480
132M		178																				520
160M	254	210	108	42	110	12	37		160	15	300	250	350	19	5		330	325	270	22	385	605
160L		254																				650
180M	279	241	121	48		14	42.5	9	180								355	360	290	24	425	670
180L		279																				710
200L	318	305	133	55		16	49	10	200	19	350	300	400				395	400	355	28	475	780
225S	356	286	149	55/60	110/ 140	16/18	49/53	10/11	225		400	350	450			8	435	450	370	30	530	825
225M		311																				820/850
250M	406	349	168	60/65	140	18	53/58	11	250	24	500	450	550				495	495	455	32	570	935
280S	457	368	190	65/75		18/20	58/67.5	11/12	280								550	550	470	38	640	1020
280M		419																				1070
315S	508	406	216	65/80	170	18/22	58/71	11/14	315	28	600	550	660	24	6		744	645	576	51	865	1270
315M		457																				1340
315L		508																				1340
355M	610	560	254	75/95		20/25	67.5/86	12/14	355		740	680	800				730	750	680	52	1035	1570
355L		630
Note:The numerators of fractionsin the table give the data of 2-pole motors and the denominators of fractions the data motors more than 2-pole。

Y-H Series Three Phase Marine Motor-DEYUAN MARINE10

Frame size	Mounting and overall dimensions
	D	E	F	G	GD	M	N	P	S	T	No.Of fixing holes	AC	AD	HF	LA	L
80	19	40	6	15.5	6	165	130	200	12	3.5	4	165	165	260	12	335
90S	24	50	8	20	7							180	180	270		365
90L																400
100L	28	60		24		215	180	250	15	4		205	195	300	14	430
112M												230	205	320		450
132S	38	80	10	33	8	265	230	300				270	265	380	18	535
132M																575
160M	42	110	12	37		300	250	350	19	5		325	270	450		660
160L																705
180M	48		14	42.5	9							360	290	490		730
180L																765
200L	55		16	49	10	350	300	400				400	355	550		840
225S	55/60	110/140	16/18	49/53	10/11	400	350	450			8	450	370	610	20	890
225M																880/915
250M	60/65	140	18	53/58	11	500	450	550				495	455	640	22	995
280S	65/75		18/20	58/67.5	11/12							550	470	720		1090
280M																1140
315S	65/80	170	18/22	58/71	11/14	600	550	660	24	6		645	576	900	25	1390
315M																1490
315L																1490
355M	75/95		20/25	67.5/86	12/14	740	680	800				750	680	1035		1675
355L																1675
Note :The numerators of fractions in the table give the data of2-pole motors and the denominators offractionsthe data motors more than2-pole。

Heater

If the customer requires a motor, the following specifications of the heating belt can be installed.

Frame size	Heating charged voltage	Power
Y80～90-H	220 V	20 W
Y100～112-H	220 V	30 W
Y132～160-H	220 V	40 W
Y180～200-H	220 V	50 W
Y225～280-H	220 V	60 W
Y315～400-H	220 V	80 W
