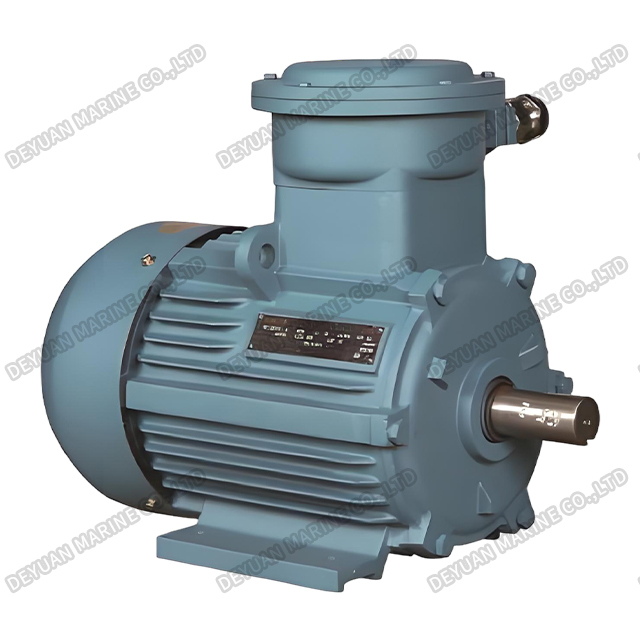

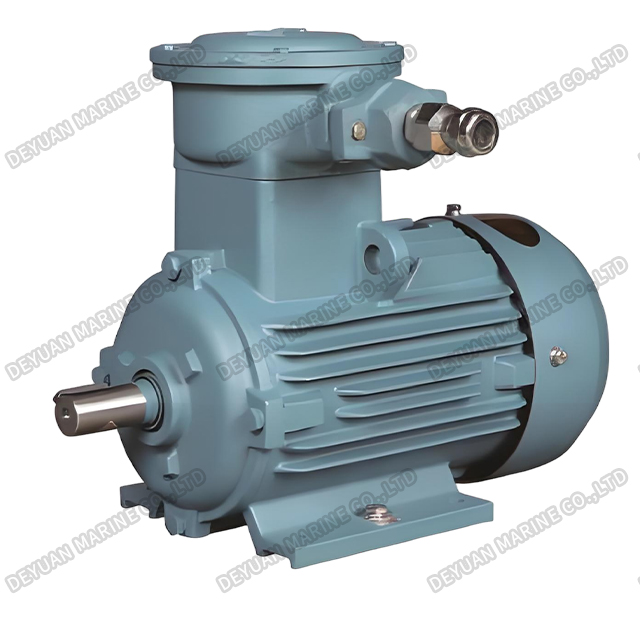

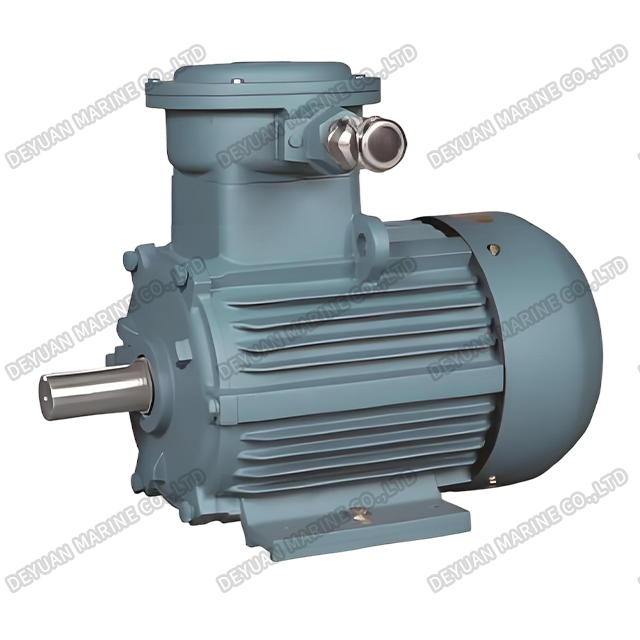

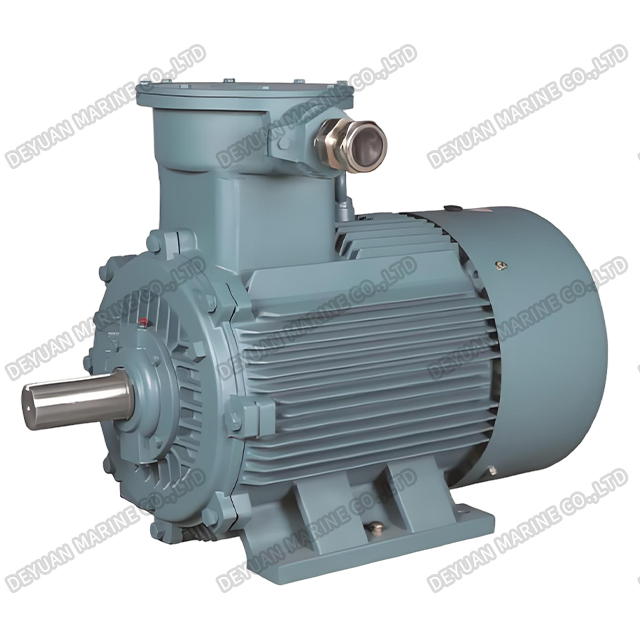

YB2-H Series Flameproof Three Phase Asynchronous Motor

Product introduction

YB2 -H series marine explosion-proof three-phase asynchronous motor is the updated design of YB series, and its performance has reached the advanced level of similar international products.The motor has the characteristics of high efficiency, energy saving, high stall torque, low noise, smallvibration, safe and reliable operation, and beautiful appearance. Its power level, installation size and corresponding relationship comply with the International Electrotechnical Commission.(IEC) standards.

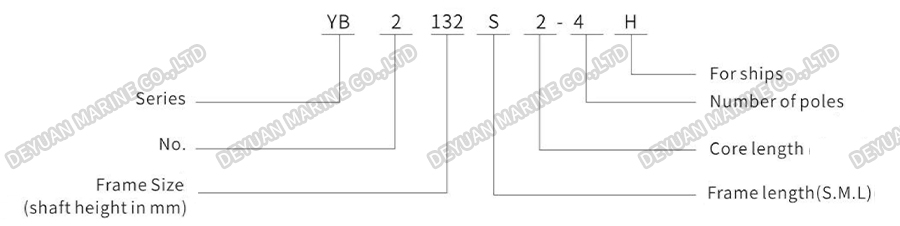

Type Designation

The type designation consists ofseveral letters and digits.

YB2-H Series Flameproof Three Phase Asynchronous Motor-DEYUAN MARINE10

Construction

1.YB2-H series explosion-proof three phase asynchronous motor complies with GB3836.2, Electrical Apparatus for Use in Explosive Atmosphere part2: Flame: proof Enclosure‘d' . The flame -proof constructions and their parameters have refered to IEC60079- 1, Construction and Verification Test of Flame -proof Enclosure for Electrical Apparatus, and EN50018, Electrical pparatus for Use in Explosive Atmosphere: Flame-proof Enclosure 'd'.The motors are made into flame-proof type, and are suitable for use in explosive gas atmosphere, which can be divided into two grorps. Group I is used for coal mine and marked with Exdl; Group II is used for explosive gas atmospheres other than coal mine and marked with ExdIIAT4 ExdIIBT4 ExdIICT4.

2.Degree of protection by enclosure of motors is Ip55.

3.The frames of motors are designed with parallel cooling ribs which are distributed vertically and horizontally.The bearings of motors are ball bearings. The fans are of small diameter and wide vanes. In addition to them, reasonable electromagnetic parameters and proper slot combinations and slot-skewing slopes are selected so that the vibration and the noise of motors have effectively been controlled.

4.The stator windings of the motor are class F insulated. When the altitude above sea level and ambient temperature are in accordance with the values specified by the standard, the temperature rise limit of stator windings is 80K(resistance method). For frame size 315L2-and 4-pole motors and frame size 355 motors, the temperature rise limit is 105K.

5.The cable entry form for the terminal box of Yb2 range of motors is of cabtyre cable. The terminal box isprovided with three terminals (for single voltage) or six terminals(for double voltages). The terminal box is located on the top of the motor. On request of user, rmoured cable can also be applied.

6.The direction of rotation of the motor. For frame sizes H63 to 280 and H315 to 355 motors (4 to 10-poles), the direction of rotation may be clockwise and anticlockwise, and for frame sizes 315 to 3552-pole motors, the direction of rotation is clockwise as viewed from the shaft extension. If the motor is required to rotate anticlockwise, please specify it when ordering.

Application range

They can be used en ships with protection mark EXD 1A. EXD IB and EXD IC andfulfill flammable gas and explosive mixture. The Motors are suitable for driving variousmachines on ships, such as pumps. blowers. separators. hydraulic engine and other auxiliaryequipoments.

Technical Data

2-Pale

Model	Power (kw)	Current(A) 380V/440V	Speed(r/min) 50/60Hz	Weight (kg)
YB2 631-2-H	0.18	0.5/0.46	2820/3385	13
YB2 632-2-H	0.25	0.66/0.6	2825/3390	14
YB2 711-2-H	0.37	0.96/0.86	2830/3395	17
YB2 712-2-H	0.55	1.33/1.20	2840/3405	18
YB2 80M1-2-H	0.75	1.8/1.58	2850/3420	28
YB2 80M2-2-H	1.1	2.6/2.23	2840/3405	29
YB2 90S-2-H	1.5	3.4/3.0	2850/3420	34
YB2 90L-2-H	2.2	4.8/4.20	2850/3420	37
YB2 100L-2-H	3	6.2/5.45	2870/3440	45
YB2 112M-2-H	4	8.1/7.06	2890/3470	57
YB2 132S1-2-H	5.5	11.1/9.65	2900/3480	90
YB2 132S2-2-H	7.5	14.8/12.9	2900/3480	95
YB2 160M1-2-H	11	21.6/18.7	2940/3525	142
YB2 160M2-2-H	15	28.8/25.0	2940/3525	150
YB2 160L-2-H	18.5	35.5/30.7	2940/3525	172
YB2 180M-2-H	22	41/35.9	2950/3540	202
YB2 200L1-2-H	30	55.5/48.4	2950/3540	270
YB2 200L2-2-H	37	67.9/59.3	2950/3540	285
YB2 225M-2-H	45	82.1/71.8	2960/3550	349
YB2 250M-2-H	55	99.7/87.2	2970/3560	463
YB2 280S-2-H	75	134.4/116.9	2970/3560	614
YB2 280M-2-H	90	160.7/139.8	2970/3560	690
YB2 315S-2-H	110	195.4/170.6	2980/3575	975
YB2 315M-2-H	132	232.2/203.7	2980/3575	1090
YB2 315L1-2-H	160	279.3/246.6	2980/3575	1180
YB2 315L2-2-H	200	348.8/304.4	2980/3575	1265
YB2 355S1-2-H	(185)	323.0/285.2	2980/3575	1690
YB2 355S2-2-H	(200)	348.4/304.2	2980/3575	1690
YB2 355M1-2-H	(220)	383.3/334.6	2980/3575	1860
YB2 355M2-2-H	250	443.2/378.7	2980/3575	2100
YB2 355L1-2-H	(280)	485.4/424.2	2980/3575	2250
YB2 355L2-2-H	315	544.2/476.1	2980/3575	2280

4-Pale

Model	Power (kw)	Current(A) 380V/440V	Speed(r/min) 50/60Hz	Weight (kg)
YB2 631-4-H	0.12	0.5/0.38	1350/1620	12
YB2 632-4-H	0.18	0.66/0.52	1360/1630	13
YB2 711-4-H	0.25	0.96/0.68	1370/1645	17
YB2 712-4-H	0.37	1.33/0.94	1380/1655	18
YB2 80M1-4-H	0.55	1.5/1.36	1390/1670	29
YB2 80M2-4-H	0.75	2.0/1.75	1390/1670	30
YB2 90S-4-H	1.1	2.9/2.47	1390/1670	34
YB2 90L-4-H	1.5	3.7/3.23	1390/1670	39
YB2 100L1-4-H	2.2	5.1/4.48	1420/1705	46
YB2 100L2-4-H	3	6.8/5.9	1420/1705	50
YB2 112M-4-H	4	8.8/7.62	1430/1715	55
YB2 132S1-4-H	5.5	11.5/10.0	1450/1740	93
YB2 132S2-4-H	7.5	15.4/13.3	1450/1740	106
YB2 160M1-4-H	11	22.3/19.6	1460/1750	148
YB2 160M2-4-H	15	30.1/26.2	1460/1750	169
YB2 160L-4-H	18.5	36.5/32.0	1470/1765	204
YB2 180M-4-H	22	43.1/37.8	1470/1765	225
YB2 200L1-4-H	30	57.6/50.4	1470/1765	300
YB2 200L2-4-H	37	69.9/61.0	1480/1775	324
YB2 225M-4-H	45	84.7/74.0	1480/1775	360
YB2 250M-4-H	55	102.7/90.2	1480/1775	487
YB2 280S-4-H	75	139.6/122	1480/1775	632
YB2 280M-4-H	90	166.9/145.8	1480/1775	737
YB2 315S-4-H	110	198.7/175.6	1485/1780	985
YB2 315M-4-H	132	237.7/207.6	1485/1780	1160
YB2 315L1-4-H	160	284.3/251.4	1485/1780	1225
YB2 315L2-4-H	200	354.7/314.3	1485/1780	1320
YB2 355S1-4-H	(185)	328.7/290.7	1485/1780	1690
YB2 355S2-4-H	(200)	354.7/314.3	1485/1780	1690
YB2 355M1-4-H	(220)	390.1/241.8	1485/1780	1860
YB2 355M2-4-H	250	442.9/288.4	1485/1780	2100
YB2 355L1-4-H	(280)	496.0/435	1485/1780	2280
YB2 355L2-4-H	315	556.2/489.4	1485/1780	2280

6-Pale

Model	Power (kw)	Current(A) 380V/440V	Speed(r/min) 50/60Hz	Weight (kg)
YB2 711-6-H	0.18	0.64/0.6	870/1045	17
YB2 712-6-H	0.25	0.83/0.70	870/1045	18
YB2 80M1-6-H	0.37	1.3/1.13	890/1070	22
YB2 80M2-6-H	0.55	1.7/1.54	890/1090	23
YB2 90S-6-H	0.75	2.3/2.0	910/1090	35
YB2 90L-6-H	1.1	3.1/2.73	910/1115	37
YB2 100L-6-H	1.5	3.9/3.41	930/1125	45
YB2 112M-6-H	2.2	5.6/4.78	940/1165	57
YB2 132S-6-H	3	7.3/63.6	970/1165	88
YB2 132M1-6-H	4	9.4/8.16	970/1165	98
YB2 132M2-6-H	5.5	12.6/11.0	970/1165	109
YB2 160M-6-H	7.5	16.8/14.5	970/1165	144
YB2 160L-6-H	11	24.3/21.0	970/1165	172
YB2 180L-6-H	15	31.6/27.64	980/1175	214
YB2 200L1-6-H	18.5	37.6/23.9	980/1175	250
YB2 200L2-6-H	22	44.7/29.1	980/1175	280
YB2 225M-6-H	30	57.6/50.4	980/1175	372
YB2 250M-6-H	37	69.8/52.1	980/1175	468
YB2 280S-6-H	45	85.9/75.1	990/1190	606
YB2 280M-6-H	55	104.7/91.5	985/1190	665
YB2 315S-6-H	75	141.7/123.8	985/1180	930
YB2 315M-6-H	90	169.5/148.2	985/1180	1040
YB2 315L1-6-H	110	206.7/180.6	985/1180	1130
YB2 315L2-6-H	132	244.7/213.8	985/1180	1230
YB2 355S-6-H	160	292.3/255.4	985/1180	1620
YB2 355M1-6-H	(185)	339.0/295.3	985/1180	1730
YB2 355M2-6-H	200	264.4/319.2	985/1180	1930
YB2 355L1-6-H	(220)	401.1/351.1	985/1180	2120
YB2 355L2-6-H	250	454.3/391	985/1180	2230

8-Pale

Model	Power (kw)	Current(A) 380V/440V	Speed(r/min) 50/60Hz	Weight (kg)
YB2 80M1-8-H	0.18	0.8/0.74	650/780	20
YB2 80M2-8-H	0.25	1.1/0.98	650/780	21
YB2 90S-8-H	0.37	1.4/1.26	670/805	35
YB2 90L-8-H	0.55	2.1/1.8	670/805	37
YB2 100L1-8-H	0.75	2.4/2.1	690/830	41
YB2 100L2-8-H	1.1	3.3/2.9	690/830	43
YB2 112M-8-H	1.5	4.4/3.7	690/830	52
YB2 132S-8-H	2.2	5.6/5.2	710/850	88
YB2 132M-8-H	3	7.6/6.9	710/850	104
YB2 160M1-8-H	4	10.3/9.2	720/860	143
YB2 160M2-8-H	5.5	13.4/11.8	720/860	144
YB2 160L-8-H	7.5	17.5/15.5	720/860	172
YB2 180L-8-H	11	25.3/22.4	720/860	214
YB2 200L-8-H	15	33.7/29.9	730/875	280
YB2 225S-8-H	18.5	40.0/34.8	740/885	306
YB2 225M-8-H	22	47.4/41.1	740/885	332
YB2 250M-8-H	30	63.4/55.5	740/885	465
YB2 280S-8-H	37	77.8/68.1	740/885	590
YB2 315M-8-H	45	94.1/82.3	740/885	662
YB2 315S-8-H	55	111.2/97.2	740/885	900
YB2 315M-8-H	75	151.3/131.6	740/885	1085
YB2 315L1-8-H	90	177.8/157.4	740/885	1150
YB2 315L2-8-H	110	216.8/189.6	740/885	1280
YB2 315S-8-H	132	259.6/228.2	745/895	1690
YB2 315M-8-H	160	313.4/275.2	745/895	1830
YB2 315L1-8-H	185	362.3/318.2	745/895	2200
YB2 315L2-8-H	200	386.2/338.7	745/895	2250

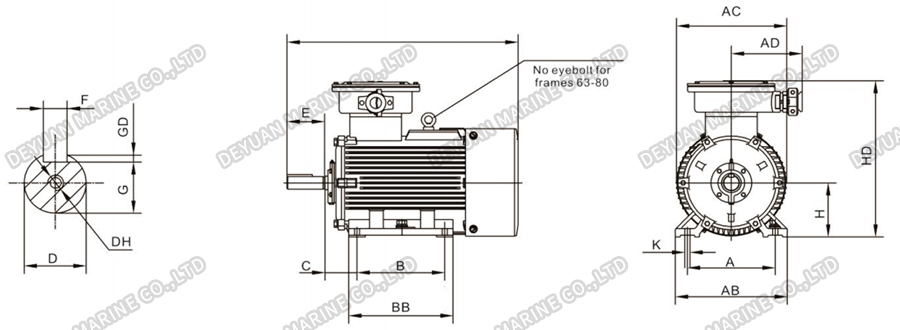

Installation Dimension and Shape of YB2-H(Horizontal B3)

Type	Poles	Mounting Dinensions Poles										0verall Dimensions
Type	Poles	A	B	C	D	E	F	G	GD	H	K	AB	AC	AD	BB	HD	L	DH
63	2、4	100	80	40	11	23	4	8.5	2.5	63	7	130	150	165	110	230	270	M4×10
71	2、4、6	112	90	45	14	30	5	11	3	71	7	140	155	165	114	250	300	M5×12
80M	2、4、6、8	125	100	50	19	40	6	15.5	3.5	80	10	165	165	180	130	320	330	M6×16
90S	2、4、6、8	140	100	56	24	50	8	20	4	90	12	180	180	180	135	350	360	M8×19
90L	2、4、6、8	140	125	56	24	50	8	20	4	90	12	180	180	180	160	350	385	M8×19
100L	2、4、6、8	160	140	63	28	60	8	24	4	100	12	200	205	180	180	400	440	M10×22
112M	2、4、6、8	190	140	70	28	60	8	24	4	112	12	245	230	200	180	420	460	M10×22
132S	2、4、6、8	216	140	89	38	80	10	33	5	132	15	280	270	200	190	450	510	M12×28
132M	2、4、6、8	216	178	89	38	80	10	33	5	132	15	280	270	200	230	450	550	M12×28
160M	2、4、6、8	254	210	108	42	110	12	37	5	160	15	330	325	220	260	520	670	M16×36
160L	2、4、6、8	254	254	108	42	110	12	37	5	160	15	330	325	220	310	520	710	M16×36
180M	2、4、6、8	279	241	121	48	110	14	42.5	5.5	180	19	355	360	220	241	550	730	M16×36
180L	2、4、6、8	279	279	121	48	110	14	42.5	5.5	180	19	355	360	220	279	550	750	M16×36
200L	2、4、6、8	318	305	133	55	110	16	49	6	200	19	390	400	250	370	645	805	M20×42
225S	4、8	356	286	149	60	140	18	53	7	225	19	435	450	250	355	690	865	M20×42
225M	2 4、6、8	356 356	311 311	149 149	55 60	110 140	16 18	49 53	6 7	225 225	19 19	435 435	450 450	250 250	380 380	690 690	860 890	M20×42 M20×42
250M	2 4、6、8	406 406	349 349	168 168	60 65	140 140	18 18	53 58	7 7	250 250	24 24	490 490	500 500	300 300	420 420	730 730	945 945	M20×42 M20×42
280S	2 4、6、8	457 457	368 368	190 190	65 75	140 140	18 20	58 67.5	7 7.5	280 280	24 24	545 545	565 565	300 300	440 440	810 810	1010 1010	M20×42 M20×42
280M	2 4、6、8	457 457	419 419	190 190	65 75	140 140	18 20	58 67.5	7 7.5	280 280	24 24	545 545	565 565	300 300	490 490	810 810	1060 1060	M20×42 M20×42
315S	2 4、6、8、10	508 508	406 406	216 216	65 80	140 170	18 22	58 71	7 9	315 315	28 28	640 640	630 630	400 400	570 570	1020 1020	1320 1350	M20×42 M20×42
315M	2 4、6、8、10	508 508	457 457	216 216	65 80	140 170	18 22	58 71	7 9	315 315	28 28	640 640	630 630	400 400	680 680	1020 1020	1350 1380	M20×42 M20×42
315L	2 4、6、8、10	508 508	508 508	216 216	65 80	140 170	18 22	58 71	7 9	315 315	28 28	640 640	630 630	400 400	680 680	1020 1020	1490 1520	M20×42 M20×42
355S	2 4、6、8、10	610 610	500 500	254 254	75 95	140 170	20 25	67.5 86	7.5 9	355 355	28 28	740 740	750 750	500 500	640 640	1080 1080	1570 1570	M20×42 M24×50
355M	2 4、6、8、10	610 610	560 560	254 254	75 95	140 170	20 25	67.5 86	7.5 9	355 355	28 28	740 740	750 750	500 500	700 700	1080 1080	1650 1650	M20×42 M24×50
355L	2 4、6、8、10	610 610	630 630	254 254	75 95	140 170	20 25	67.5 86	7.5 9	355 355	28 28	740 740	750 750	500 500	770 770	1080 1080	1750 1750	M20×42 M24×50

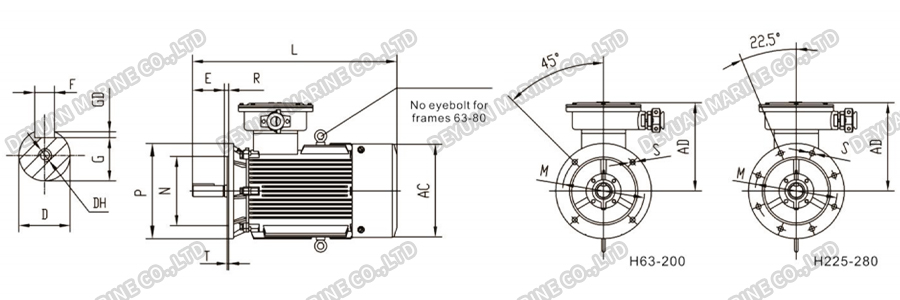

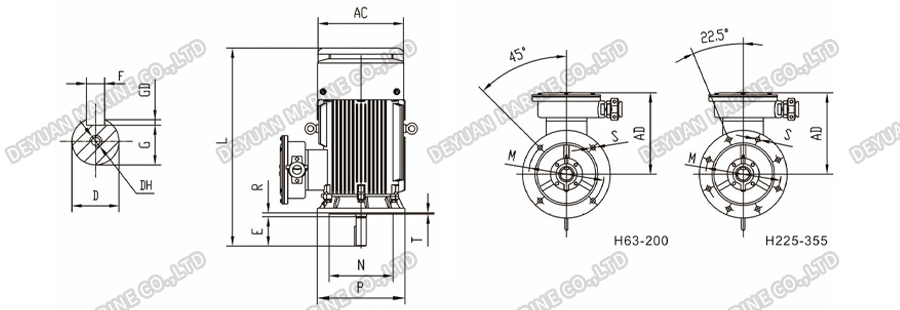

Installation Dimension and Shape of YB2-H(Vertical B5)

Type	Poles	Mounting Dinensions											Flange holes	0verall Dimens ions
Type	Poles	D	E	F	G	GD	M	N	P	R	S	T	Flange holes	AC	AD	L	DH
63	2、4	11	23	4	8.5	2.5	115	95	140	0	10	3	4	130	170	270	M4X10
71	2、4、6	14	30	5	11	3	130	110	160	0	10	3	4	145	170	300	M5X12
80M	2、4、6、8	19	40	6	15.5	3.5	165	130	200	0	12	3.5	4	165	180	330	M6X16
90S	2、4、6、8	24	50	8	20	4	165	130	200	0	12	3.5	4	180	180	360	M8X19
90L	2、4、6、8	24	50	8	20	4	165	130	200	0	12	3.5	4	180	180	385	M8X19
100L	2、4、6、8	28	60	8	24	4	215	180	250	0	15	4	4	205	180	440	M10X22
112M	2、4、6、8	28	60	8	24	4	215	180	250	0	15	4	4	230	200	460	M10X22
132S	2、4、6、8	38	80	10	33	5	265	230	300	0	15	4	4	270	200	510	M12X28
132M	2、4、6、8	38	80	10	33	5	265	230	300	0	15	4	4	270	200	550	M12X28
160M	2、4、6、8	42	110	12	37	5	300	250	350	0	19	5	4	325	220	670	M16X36
160L	2、4、6、8	42	110	12	37	5	300	250	350	0	19	5	4	325	220	710	M16X36
180M	2、4、6、8	48	110	14	42.5	5.5	300	250	350	0	19	5	4	360	220	730	M16X36
180L	2、4、6、8	48	110	14	42.5	5.5	300	250	350	0	19	5	4	360	220	750	M16X36
200L	2、4、6、8	55	110	16	49	6	350	300	400	0	19	5	4	400	250	805	M20X42
225S	4、8	60	140	18	53	7	400	350	450	0	19	5	8	450	250	865	M20X42
225M	2 4、6、8	55 60	110 140	16 18	49 53	6 7	400 400	350 350	350 350	0 0	19 19	5 5	8 8	450 450	250 250	860 890	M20X42 M20X42
250M	2 4、6、8	60 65	140 140	18 18	53 58	7 7	500 500	450 450	450 450	0 0	19 19	5 5	8 8	500 500	300 300	945 945	M20X42 M20X42
280S	2 4、6、8	65 75	140 140	18 20	58 67.5	7 7.5	500 500	450 450	450 450	0 0	19 19	5 5	8 8	565 565	300 300	1010 1010	M20X42 M20X42
280M	2 4、6、8、10	65 75	140 140	18 20	58 67.5	7 7.5	500 500	450 450	450 450	0 0	19 19	5 5	8 8	565 565	300 300	1060 1060	M20X42 M20X42
315S	2 4、6、8、10	65 80	140 170	18 22	58 71	7 9	600 600	550 550	660 660	0 0	24 24	6 6	8 8	630 630	400 400	1340 1370	M20X42 M20X42
315M	2 4、6、8、10	65 80	140 170	18 22	58 71	7 9	600 600	550 550	660 660	0 0	24 24	6 6	8 8	630 630	400 400	1420 1450	M20X42 M20X42
315L	2 4、6、8、10	65 80	140 170	18 22	58 71	7 9	600 600	550 550	660 660	0 0	24 24	6 6	8 8	630 630	400 400	1510 1540	M20X42 M20X42
355S	2 4、6、8、10	75 95	140 170	20 25	67.5 86	7.5 9	740 740	680 680	800 800	0 0	24 24	6 6	8 8	750 750	500 500	1600 1600	M20X42 M24X50
355M	2 4、6、8、10	75 95	140 170	20 25	67.5 86	7.5 9	740 740	680 680	800 800	0 0	24 24	6 6	8 8	750 750	500 500	1600 1600	M20X42 M24X50
355L	2 4、6、8、10	75 95	140 170	20 25	67.5 86	7.5 9	740 740	680 680	800 800	0 0	24 24	6 6	8 8	750 750	500 500	1780 1780	M20X42 M24X50

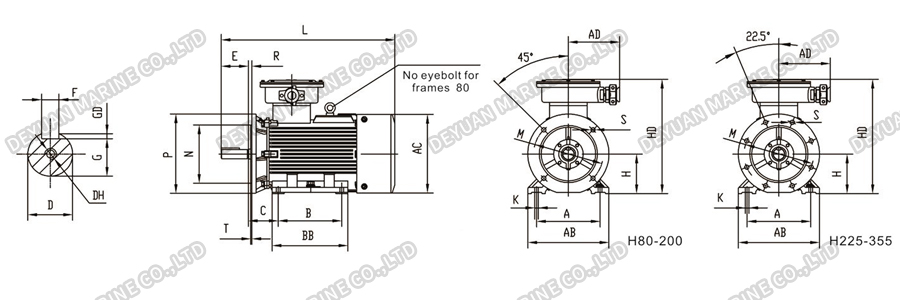

Installation Dimension and Shape of YB2-H(Stand lying B35)

YB2-H Series Flameproof Three Phase Asynchronous Motor-DEYUAN MARINE8

Type	Poles	Mounting Dinensions																Flange holes	0verall Dimens ions
Type	Poles	A	B	C	D	E	F	G	GD	H	K	M	N	P	R	S	T	Flange holes	AB	AC	AD	BB	HD	L	DH
80M	2、4、6、8	125	100	50	19	40	6	15.5	3.5	80	10	165	130	200	0	12	3.5	4	165	165	180	130	320	330	M6×16
90S	2、4、6、8	140	100	56	24	50	8	20	4	90	12	165	130	200	0	12	3.5	4	180	180	180	135	350	360	M8×19
90L	2、4、6、8	140	125	56	24	50	8	20	4	90	12	165	130	200	0	12	3.5	4	180	180	180	160	350	385	M8×19
100L	2、4、6、8	160	140	63	28	60	8	24	4	100	12	215	180	250	0	15	4	4	200	205	180	180	400	440	M10×22
112M	2、4、6、8	190	140	70	28	60	8	24	4	112	12	215	180	250	0	15	4	4	245	230	200	180	420	460	M10×22
132S	2、4、6、8	216	140	89	38	80	10	33	5	132	15	265	230	300	0	15	4	4	280	270	200	190	450	510	M12×28
132M	2、4、6、8	216	178	89	38	80	10	33	5	132	15	265	230	300	0	15	4	4	280	270	200	230	450	550	M12×28
160M	2、4、6、8	254	210	108	42	110	12	37	5	160	15	300	250	350	0	19	5	4	330	325	220	260	520	670	M16×36
160L	2、4、6、8	254	254	108	42	110	12	37	5	160	15	300	250	350	0	19	5	4	330	325	220	310	520	710	M16×36
180M	2、4、6、8	279	241	121	48	110	14	42.5	5.5	180	19	300	250	350	0	19	5	4	355	360	220	241	550	730	M16×36
180L	2、4、6、8	279	279	121	48	110	14	42.5	5.5	180	19	300	250	350	0	19	5	4	355	360	220	279	550	750	M16×36
200L	2、4、6、8	318	305	133	55	110	16	49	6	200	19	350	300	400	0	19	5	4	390	400	250	370	645	805	M20×42
225S	4、8	356	286	149	60	140	18	53	7	225	19	400	350	450	0	19	5	8	435	450	250	355	690	865	M20×42
225M	2 4、6、8	356 356	311 311	149 149	55 60	110 140	16 18	49 53	6 7	225 225	19 19	400 400	350 350	450 450	0 0	19 19	5 5	8 8	435 435	450 450	250 250	380 380	690 690	860 890	M20×42 M20×42
250M	2 4、6、8	406 406	349 349	168 168	60 65	140 140	18 18	53 58	7 7	250 250	24 24	500 500	450 450	550 550	0 0	19 19	5 5	8 8	490 490	500 500	300 300	420 420	730 730	945 945	M20×42 M20×42
280S	2 4、6、8	457 457	368 368	190 190	65 75	140 140	18 20	58 67.5	7 7.5	280 280	24 24	500 500	450 450	550 550	0 0	19 19	5 5	8 8	545 545	565 565	300 300	440 440	810 810	1010 1010	M20×42 M20×42
280M	2 4、6、8	457 457	419 419	190 190	65 75	140 140	18 20	58 67.5	7 7.5	280 280	24 24	500 500	450 450	550 550	0 0	19 19	5 5	8 8	545 545	565 565	300 300	490 490	810 810	1060 1060	M20×42 M20×42
315S	2 4、6、8、10	508 508	406 406	216 216	65 80	140 170	18 22	58 71	7 9	315 315	28 28	600 600	550 550	660 660	0 0	24 24	6 6	8 8	640 640	630 630	400 400	570 570	1020 1020	1320 1350	M20×42 M20×42
315M	2 4、6、8、10	508 508	457 457	216 216	65 80	140 170	18 22	58 71	7 9	315 315	28 28	600 600	550 550	660 660	0 0	24 24	6 6	8 8	640 640	630 630	400 400	680 680	1020 1020	1350 1380	M20×42 M20×42
315L	2 4、6、8、10	508 508	508 508	216 216	65 80	140 170	18 22	58 71	7 9	315 315	28 28	600 600	550 550	660 660	0 0	24 24	6 6	8 8	640 640	630 630	400 400	680 680	1020 1020	1490 1520	M20×42 M20×42
355S	2 4、6、8、10	610 610	500 500	254 254	75 95	140 170	20 25	67.5 86	7.5 9	355 355	28 28	740 740	680 680	800 800	0 0	24 24	6 6	8 8	740 740	750 750	500 500	640 640	1080 1080	1570 1570	M20×42 M24×50
355M	2 4、6、8、10	610 610	560 560	254 254	75 95	140 170	20 25	67.5 86	7.5 9	355 355	28 28	740 740	680 680	800 800	0 0	24 24	6 6	8 8	740 740	750 750	500 500	700 700	1080 1080	1650 1650	M20×42 M24×50
355L	2 4、6、8、10	610 610	630 630	254 254	75 95	140 170	20 25	67.5 86	7.5 9	355 355	28 28	740 740	680 680	800 800	0 0	24 24	6 6	8 8	740 740	750 750	500 500	770 770	1080 1080	1750 1750	M20×42 M24×50

Installation Dimension and Shape of YB2-H(Vertical V1)

Type	Poles	Mounting Dinensions											Flange holes	0verall Dimens ions
Type	Poles	D	E	F	G	GD	M	N P		R	S	T	Flange holes	AC	AD	L	DH
63	2、4	11	23	4	8.5	2.5	115	95	140	0	10	3	4	130	170	310	M4×10
71	2、4、6	14	30	5	11	3	130	110	160	0	10	3	4	145	170	340	M5×12
80M	2、4、6、8	19	40	6	15.5	3.5	165	130	200	0	12	3.5	4	165	180	375	M6×16
90S	2、4、6、8	24	50	8	20	4	165	130	200	0	12	3.5	4	180	180	405	M8×19
90L	2、4、6、8	24	50	8	20	4	165	130	200	0	12	3.5	4	180	180	430	M8×19
100L	2、4、6、8	28	60	8	24	4	215	180	250	0	15	4	4	205	180	485	M10×22
112M	2、4、6、8	28	60	8	24	4	215	180	250	0	15	4	4	230	200	520	M10×22
132S	2、4、6、8	38	80	10	33	5	265	230	300	0	15	4	4	270	200	590	M12×28
132M	2、4、6、8	38	80	10	33	5	265	230	300	0	15	4	4	270	200	630	M12×28
160M	2、4、6、8	42	110	12	37	5	300	250	350	0	19	5	4	325	220	730	M16×36
160L	2、4、6、8	42	110	12	37	5	300	250	350	0	19	5	4	325	220	770	M16×36
180M	2、4、6、8	48	110	14	42.5	5.5	300	250	350	0	19	5	4	360	220	800	M16×36
180L	2、4、6、8	48	110	14	42.5	5.5	300	250	350	0	19	5	4	360	220	820	M16×36
200L	2、4、6、8	55	110	16	49	6	350	300	400	0	19	5	4	400	250	875	M20×42
225S	4、8	60	140	18	53	7	400	350	450	0	19	5	8	450	250	935	M20×42
225M	2 4、6、8	55 60	110 140	16 18	49 53	6 7	400 400	350 350	450 450	0 0	19 19	5 5	8 8	450 450	250 250	930 960	M20×42 M20×42
250M	2 4、6、8	60 65	140 140	18 18	53 58	7 7	500 500	450 450	550 550	0 0	19 19	5 5	8 8	500 500	300 300	1035 1035	M20×42 M20×42
280S	2 4、6、8	65 75	140 140	18 20	58 67.5	7 7.5	500 500	450 450	550 550	0 0	19 19	5 5	8 8	565 565	300 300	1100 1100	M20×42 M20×42
280M	2 4、6、8	65 75	140 140	18 20	58 67.5	7 7.5	500 500	450 450	550 550	0 0	19 19	5 5	8 8	565 565	300 300	1150 1150	M20×42 M20×42
315S	2 4、6、8、10	65 80	140 170	18 22	58 71	7 9	600 600	550 550	660 660	0 0	24 24	5 5	8 8	630 630	400 400	1370 1420	M20×42 M20×42
315M	2 4、6、8、10	65 80	140 170	18 22	58 71	7 9	600 600	550 550	660 660	0 0	24 24	5 5	8 8	630 630	400 400	1450 1510	M20×42 M20×42
315L	2 4、6、8、10	65 80	140 170	18 22	58 71	7 9	600 600	550 550	660 660	0 0	24 24	5 5	8 8	630 630	400 400	1540 1540	M20×42 M20×42
355S	2 4、6、8、10	7595	140 170	20 25	67.5 86	7.59	740 740	680 680	800 800	0 0	24 24	5 5	8 8	750 750	500 500	1600 1600	M20×42 M24×50
355M	2 4、6、8、10	7595	140 170	20 25	67.5 86	7.59	740 740	680 680	800 800	0 0	24 24	5 5	8 8	750 750	500 500	1600 1600	M20×42 M24×50
355L	2 4、6、8、10	7595	140 170	20 25	67.5 86	7.59	740 740	680 680	800 800	0 0	24 24	5 5	8 8	750 750	500 500	1780 1780	M20×42 M24×50
