Product Description

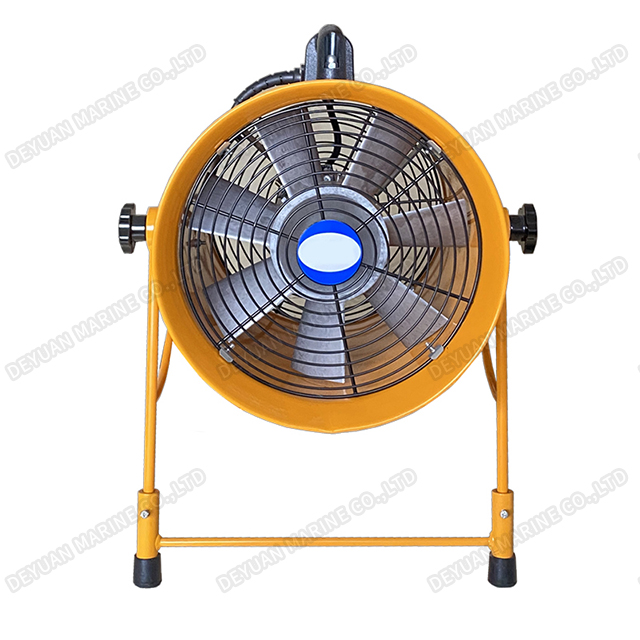

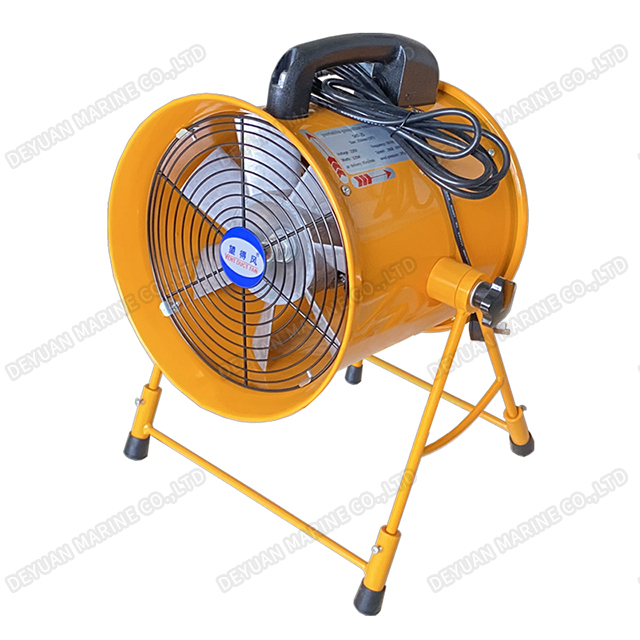

Tilt Adjustable A-Frame Portable Axial Flow Fan
The whole series of adjustable elevation portable fans (∅200mm-600mm) can be equipped with different types of tripods to adjust the blowing angle 360°, which is very convenient to use. It can also be used as a dancing star fan to blow air dancers, or to increase the stage effect, photography effect, snow machine, bubble machine, spray machine and other matching use.
The body of the portable fan is made of hot zinc dipped plate with paint, the impeller is made of aluminum alloy, galvanized mesh cover, glass fiber reinforced nylon material casting handle, and aluminum shell motor structure. It is light in weight and easy to move; novel in style and reasonable in structure; safe and durable, easy to use; excellent in performance and strong in suction; the portable fan can be easily connected to the air guide.
The portable fan is suitable for exhaust or air supply in containers and tunnels, and for the emission of harmful gases, smoke, dust, hot air, etc. generated by mechanical manufacturing and welding operations.
The product models are 200mm-600mm, the voltages are 36V, 110V, 220V, 240V, 380V, equipped with various British, American, French, Great Wall plugs and 3-meter long wires.
Features:
Strong air pressure, high speed, large air volume, strong suction, reasonable structure and excellent performance.

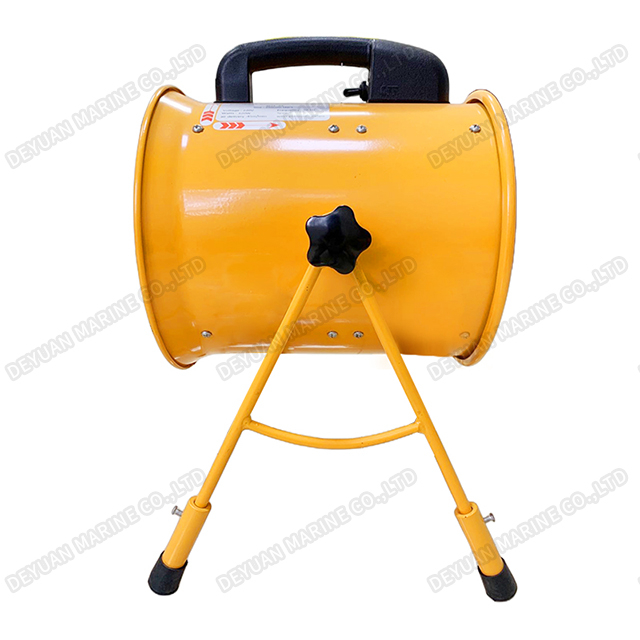

Angle adjustable bracket: A/U bracket, easy to use.
Structure:
1. Ventilator housing: made of hot-dip galvanized sheet, with automotive coating sprayed on the surface
2. Impeller: made of aluminum alloy, 7 blades.
3. Fan cover: dust removal, galvanized
4. Switch: button.
5. Integrated plastic handle, easy to carry.
6. Motor: wound with international standard copper wire.
7. Aluminum cast integrated motor housing with heat dissipation ribs.
Available sizes:
1. A bracket: 8"/10"/12"
2. U bracket: 12"/14"/16"
Voltage: 36V, 48V, 110V, 220V, 380V, 440V
Frequency: 50Hz, 60Hz, 50/60Hz universal
Plug: European, American, British, Japanese, etc.
Models and Parameters of Tilt Adjustable A-Frame Portable Axial Flow Fan
| Model | Size (mm) | Voltage(V-) | Frequency (Hz) | Power (W) | R.P.M(rpm) | Air volume (m³/min) | Pressure (Pa) | Noise (dB(A)) |
| SHT-20 | φ200 | 220-240/380-415 | 50/60 | 230 | 2800 | 28 | 245 | 60 |
| SHT-20 | φ200 | 110 | 60 | 250 | 3300 | 32 | 285 | 60 |
| SHT-25 | φ250 | 220-240/380-415 | 50/60 | 320 | 2800 | 45 | 295 | 68 |
| SHT-25 | φ250 | 110 | 60 | 350 | 3300 | 50 | 305 | 68 |
| SHT-30 | φ300 | 220-240/380-415 | 50/60 | 520 | 2800 | 65 | 375 | 71 |
| SHT-30 | φ300 | 110 | 60 | 550 | 3300 | 78 | 440 | 71 |
A variety of matching ventilation hoses are also available:
More ventilation hoses are available, welcome to inquire
