Product Description

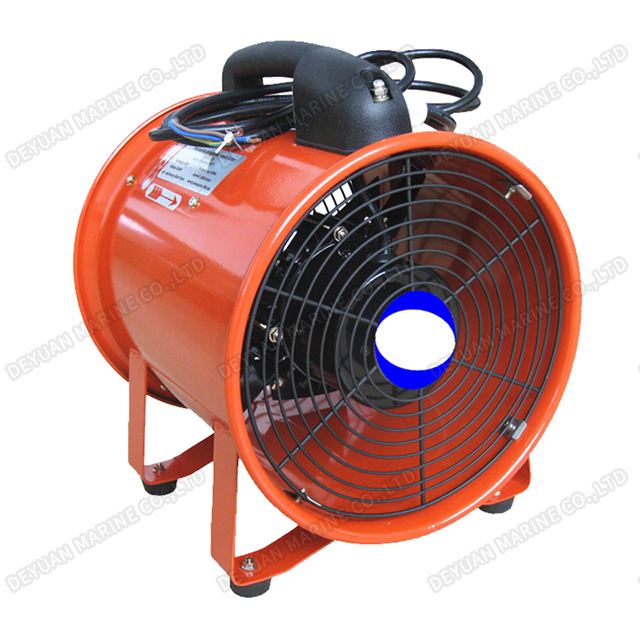

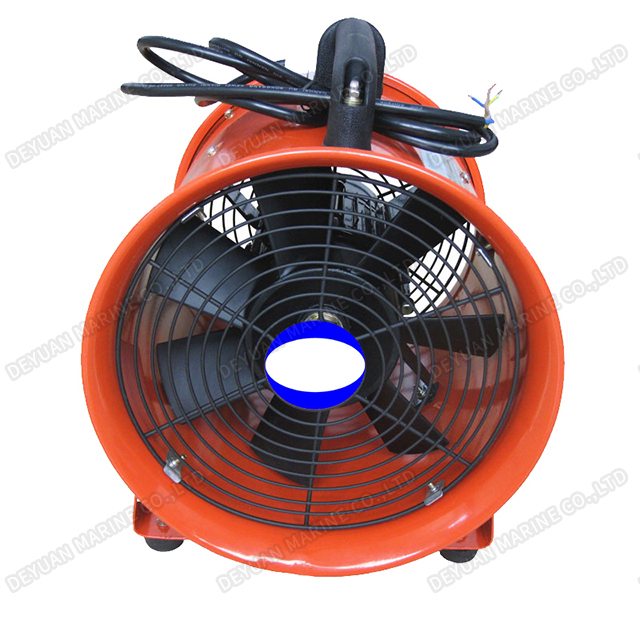

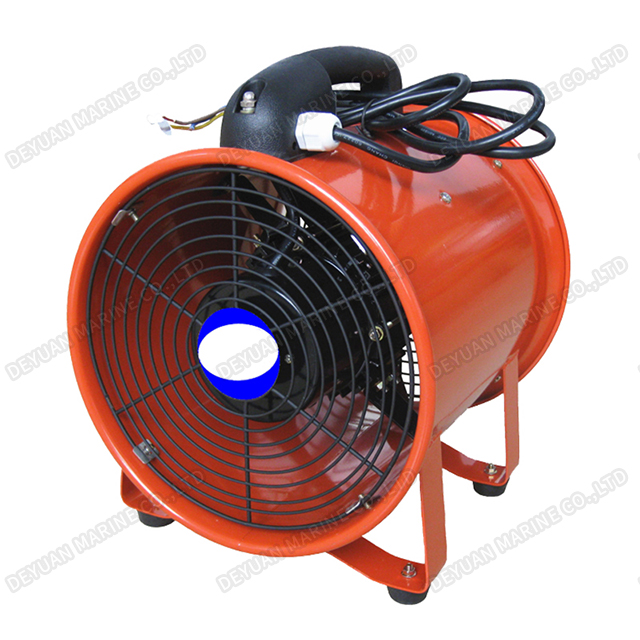

36V Portable Axial Flow Fan
Structure:
1. Shell: Made of hot-dip galvanized sheet, with automotive coating sprayed on the surface.
2. Impeller: Made of aluminum alloy, 7 blades.
3. Fan cover: Dust removal, galvanized.
4. Switch: button.
5. Integrated plastic handle, easy to carry.
6. Motor: Winded with international standard copper wire.
7. Aluminum cast integrated motor housing with heat dissipation ribs.
Application:

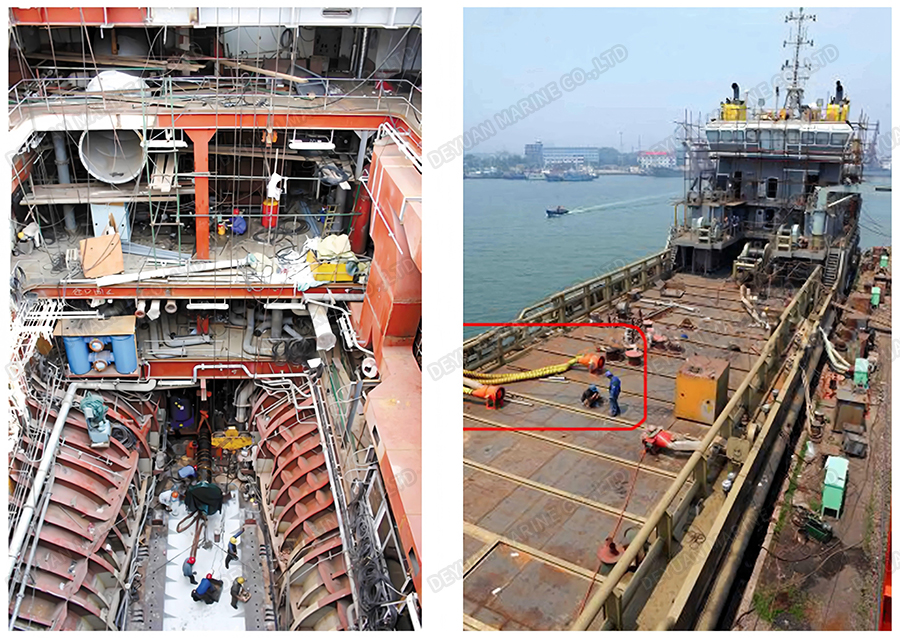

36V safety voltage fan is mainly used for rust welding, detection, repair and cleaning of steel containers, train carriages, containers, gasoline tanks, boilers and oil depots.
36V safety voltage fan can effectively avoid leakage when working in all-metal places.
Models and Parameters of 36V Portable Axial Flow Fan
| Model | Size (mm) | Voltage(V-) | Frequency (Hz) | Power (W) | R.P.M(rpm) | Air volume (m³/min) | Pressure (Pa) | Noise (dB(A)) |
| SHT-25 | φ250 | 220-240/380-415 | 50/60 | 320 | 2800 | 45 | 295 | 68 |
| SHT-25 | φ250 | 110 | 60 | 350 | 3300 | 50 | 305 | 68 |
| SHT-30 | φ300 | 220-240/380-415 | 50/60 | 520 | 2800 | 65 | 375 | 71 |
| SHT-30 | φ300 | 110 | 60 | 550 | 3300 | 78 | 440 | 71 |

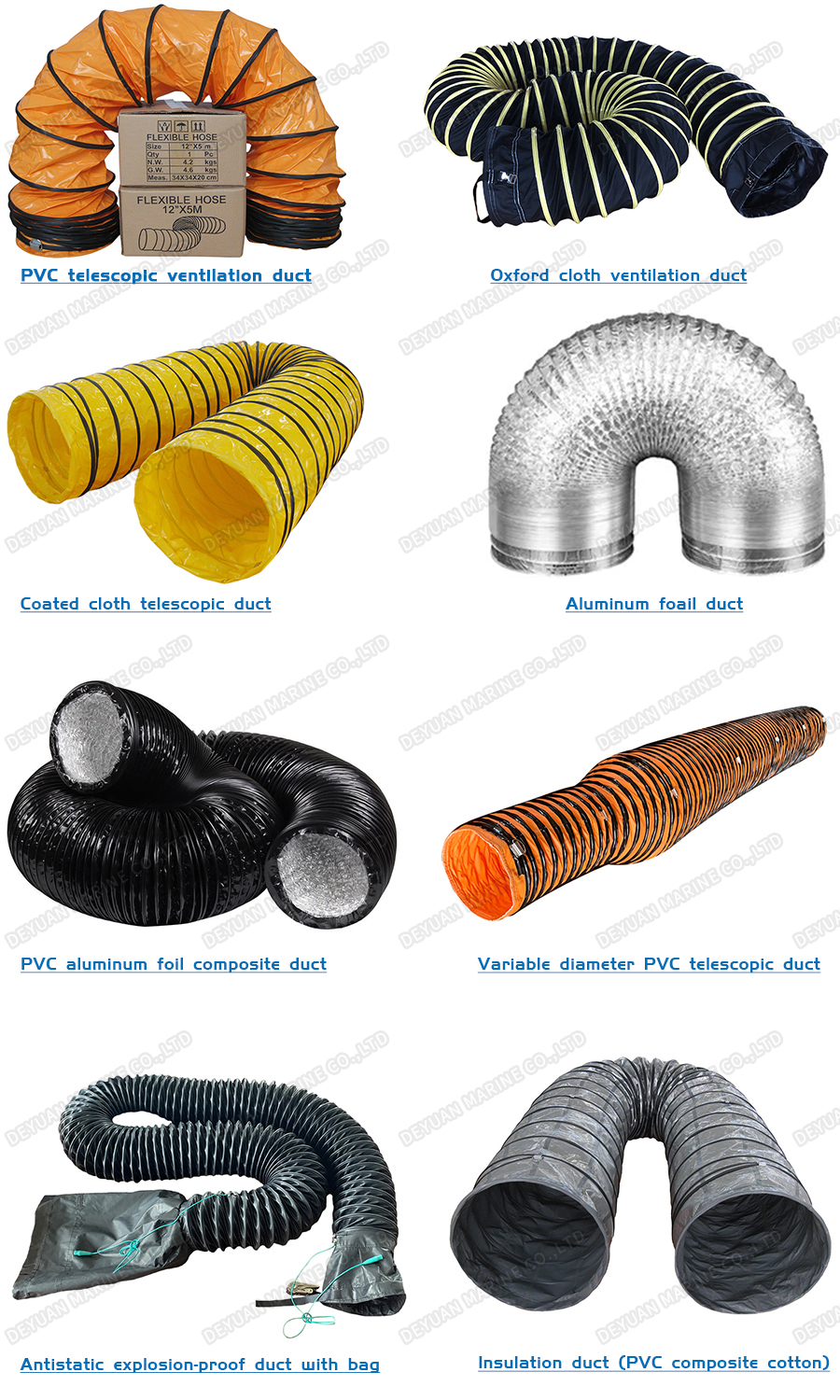

A variety of matching ventilation hoses are also available:
More ventilation hoses are available, welcome to inquire
