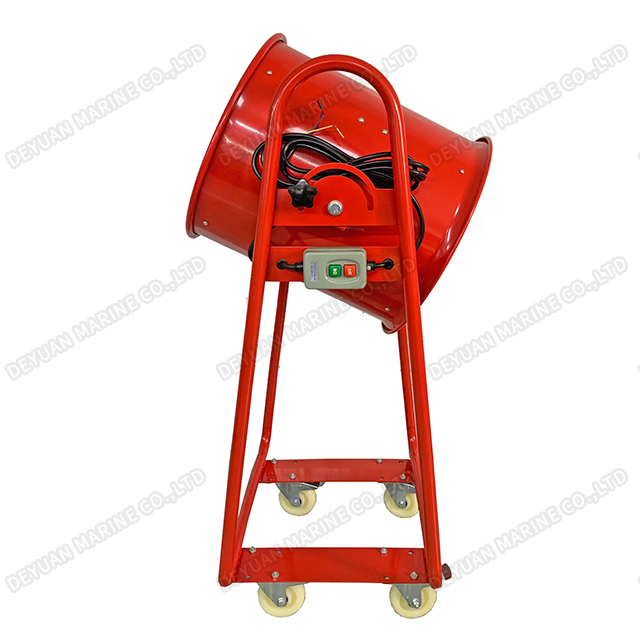

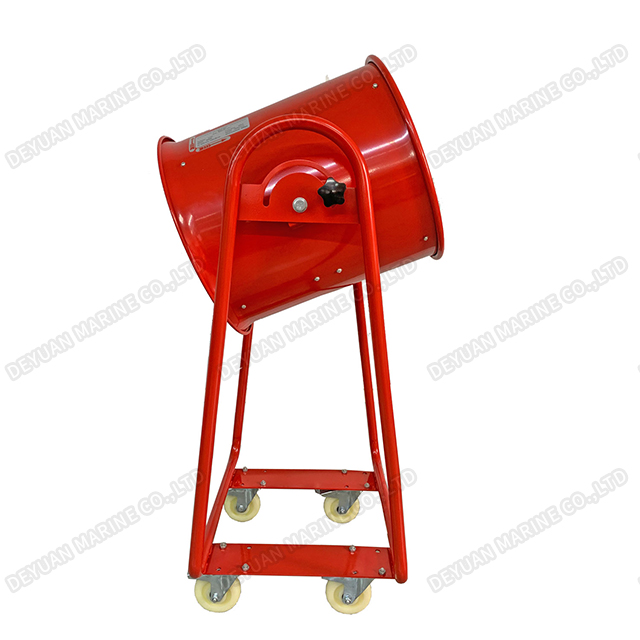

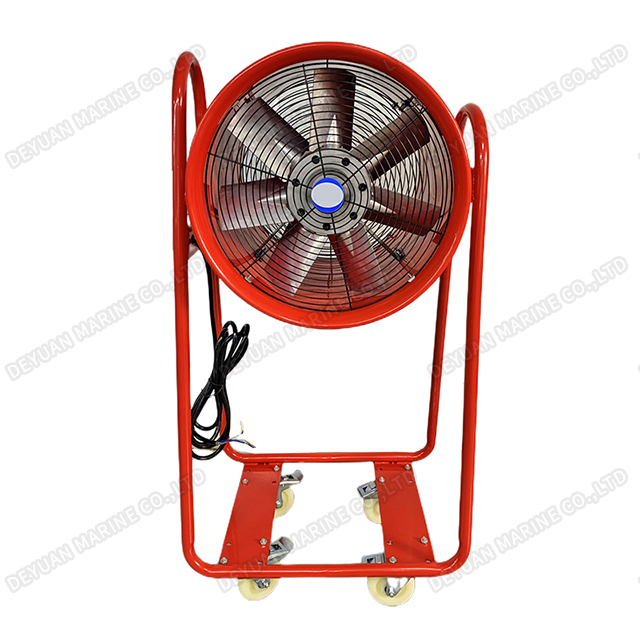

Positional Mobile Portable Axial Blower

Brand: Deyuan Marine
Type: Positional Mobile
Size: 400mm
Blade: 7pcs
Power: 1100W/1200W
Flow Rate: 96/102m3/min
Pressure: 700/1000Pa
Noise: 80db
Power Supply: 220V 50Hz/60Hz
Phase: Single/3P
Availability:

Product Description

Positional Mobile Portable Axial Blower


Features:

High air pressure, high speed, large air volume, strong suction, reasonable structure and excellent performance.


Structure:

1. Ventilator housing: made of hot-dip galvanized sheet, with automotive coating sprayed on the surface.

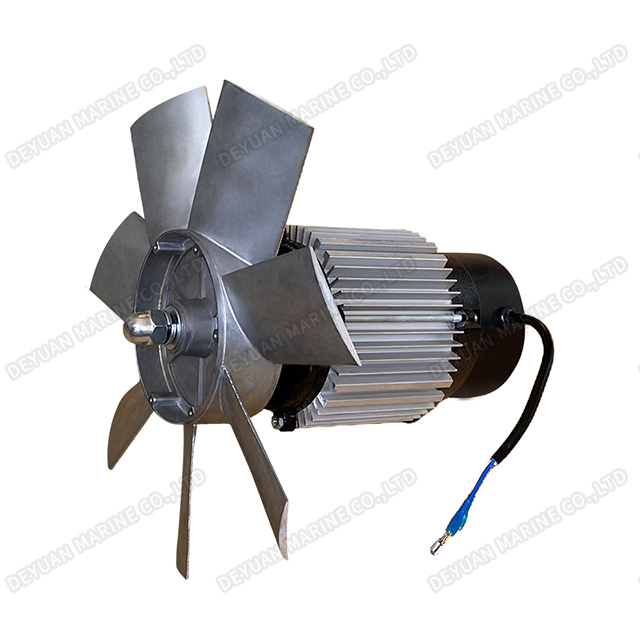

2. Impeller: made of aluminum alloy, 7 blades.


3. Fan cover: dust removal, galvanized.


4. Switch: press the button.


5. High bracket: high bracket designed for practical application.

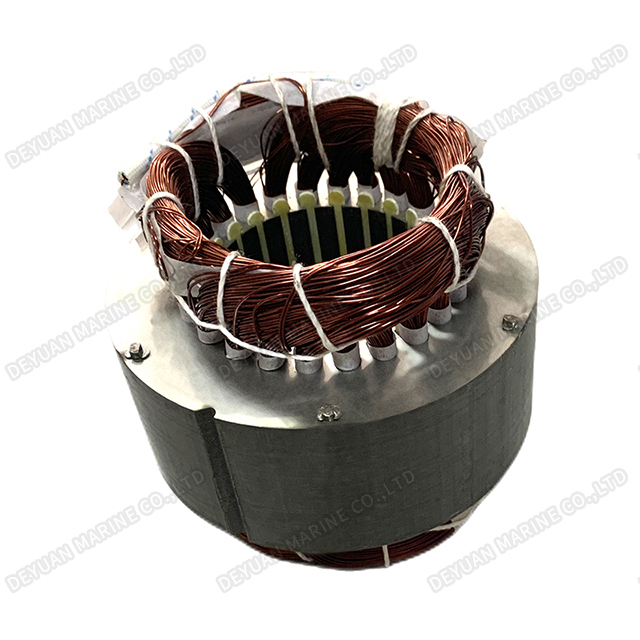

6. Motor: wound with international standard copper wire.


7. Aluminum cast one-piece motor housing with heat dissipation ribs.


Voltage: 36V, 110V, 220V, 380V, 440V.


Frequency: 50Hz, 60Hz, 50/60Hz universal.


Plug: without plug.


1620 Portable Axial Fan-DEYUAN MARINE 0


Models and Parameters of Positional Mobile Portable Axial Blower

Model Size
(mm)
Voltage(V-) Frequency
(Hz)
Power
(W)
R.P.M(rpm) Air volume
(m³/min)
Pressure
(Pa)
Noise
(dB(A))
SHT-20 φ200 220-240/380-415 50/60 230 2800 28 245 60
SHT-20 φ200 110 60 250 3300 32 285 60
SHT-25 φ250 220-240/380-415 50/60 320 2800 45 295 68
SHT-25 φ250 110 60 350 3300 50 305 68
SHT-30 φ300 220-240/380-415 50/60 520 2800 65 375 71
SHT-30 φ300 110 60 550 3300 78 440 71
SHT-35 φ350 220-240/380-415 50/60 750 2800 82 598 76
SHT-35 φ350 110 60 900 3300 95 673 76
SHT-40 φ400 220-240/380-415 50/60 1100 2800 96 700 80
SHT-40 φ400 110 60 1200 3300 270 1000 80
SHT-45 φ450 220-240/380-415 50 1500 2800 200 970 83
SHT-45 φ450 110 60 600 1700 200 750 83
SHT-50 φ500 220-240/380-415 50 2200 2800 330 1050 88
SHT-50 φ500 110 60 750 1700 250 800 88
SHT-60 φ600 220-240/380-415 50 2200 1400 300 1100 92
SHT-60 φ600 110 60 2200 1680 330 1186 92



A variety of matching ventilation hoses are also available:

Ventilation Hose-DEYUAN MARINE

More ventilation hoses are available, welcome to inquire
