Product Description

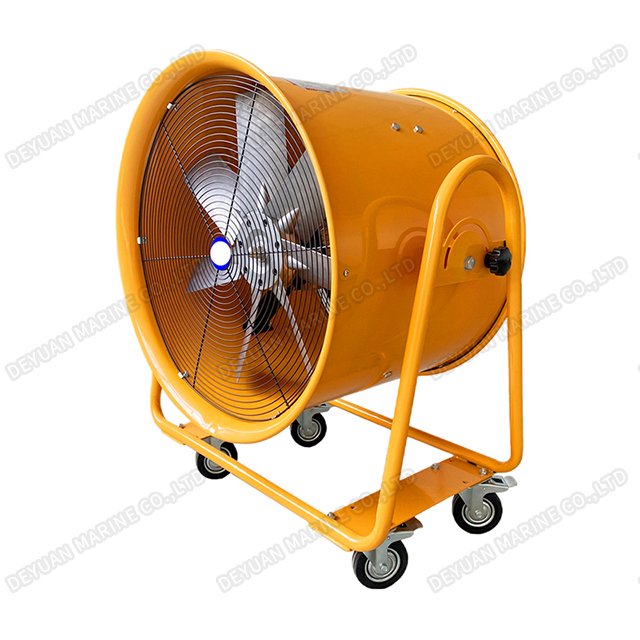

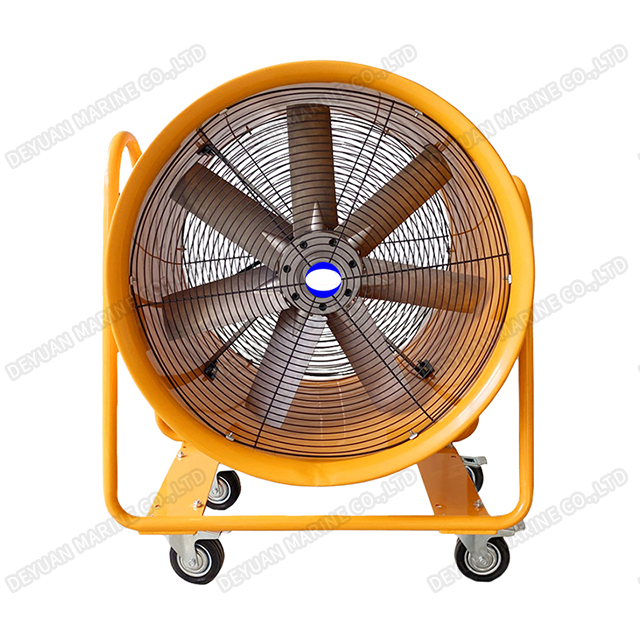

Hand Push Axial Flow Blower
Features:
600mm movable fan with 4 wheels, can be easily moved, convenient for application and transportation. Strong air pressure, large air volume, strong suction, reasonable structure and excellent performance.
Structure:
1. Ventilator housing: made of hot-dip galvanized sheet, with automotive coating sprayed on the surface.
2. Impeller: made of aluminum alloy, 7 blades.
3. Fan cover: dust removal, galvanized.

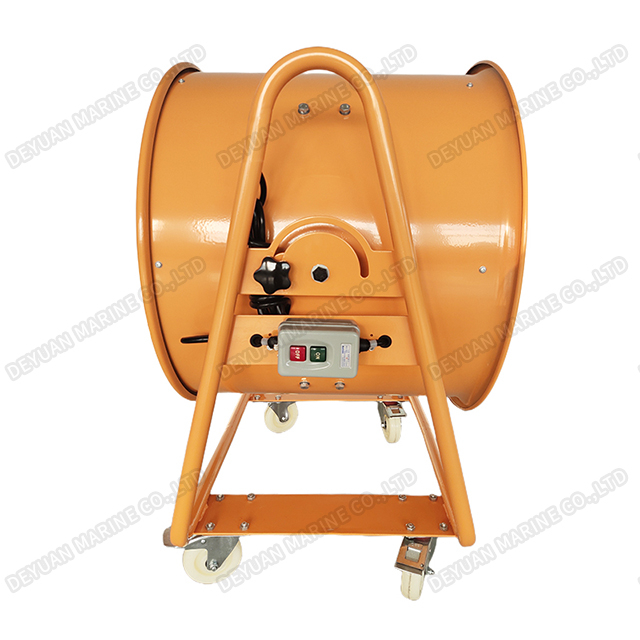

4. Switch: button.
5. Integrated plastic handle for easy carrying.
6. Motor: wound with international standard copper wire.
7. Aluminum cast integrated motor housing with heat dissipation ribs.
Available sizes:
16''-24''.
400mm, 450mm, 500mm, 600mm, can be equipped with a hand-push bracket for easy movement.
Voltage: 36V, 110V, 220V, 380V, 440V.
Frequency: 50Hz, 60Hz, 50/60Hz universal.
Plug: European, American, British, Japanese, etc.
Models and Parameters of Hand Push Axial Flow Blower
| SHT-40 | φ400 | 220-240/380-415 | 50/60 | 1100 | 2800 | 96 | 700 | 80 |
| SHT-40 | φ400 | 110 | 60 | 1200 | 3300 | 270 | 1000 | 80 |
| SHT-45 | φ450 | 220-240/380-415 | 50 | 1500 | 2800 | 200 | 970 | 83 |
| SHT-45 | φ450 | 110 | 60 | 600 | 1700 | 200 | 750 | 83 |
| SHT-50 | φ500 | 220-240/380-415 | 50 | 2200 | 2800 | 330 | 1050 | 88 |
| SHT-50 | φ500 | 110 | 60 | 750 | 1700 | 250 | 800 | 88 |
| SHT-60 | φ600 | 220-240/380-415 | 50 | 2200 | 1400 | 300 | 1100 | 92 |
| SHT-60 | φ600 | 110 | 60 | 2200 | 1680 | 330 | 1186 | 92 |
A variety of matching ventilation hoses are also available:
More ventilation hoses are available, welcome to inquire
