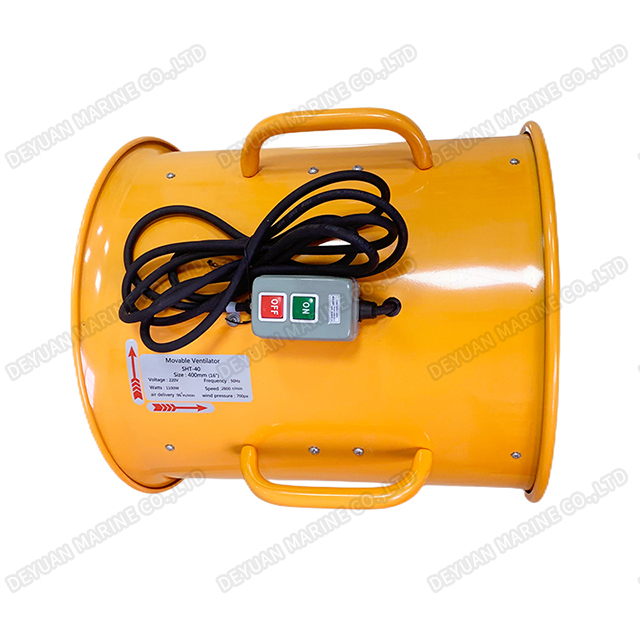

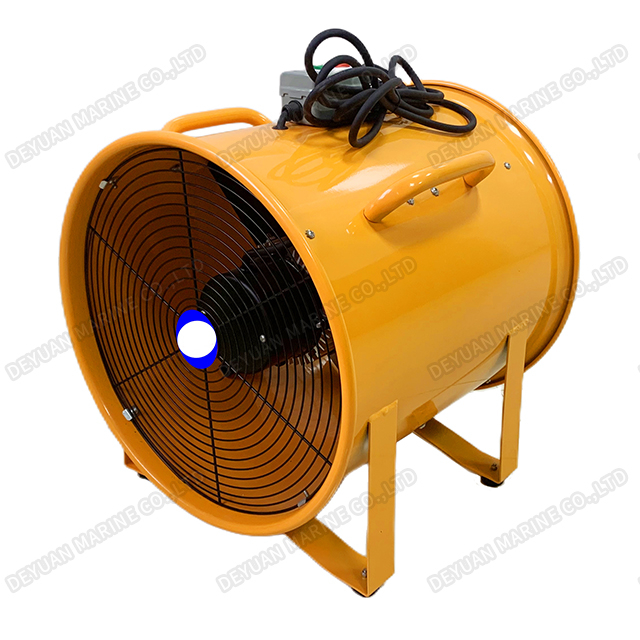

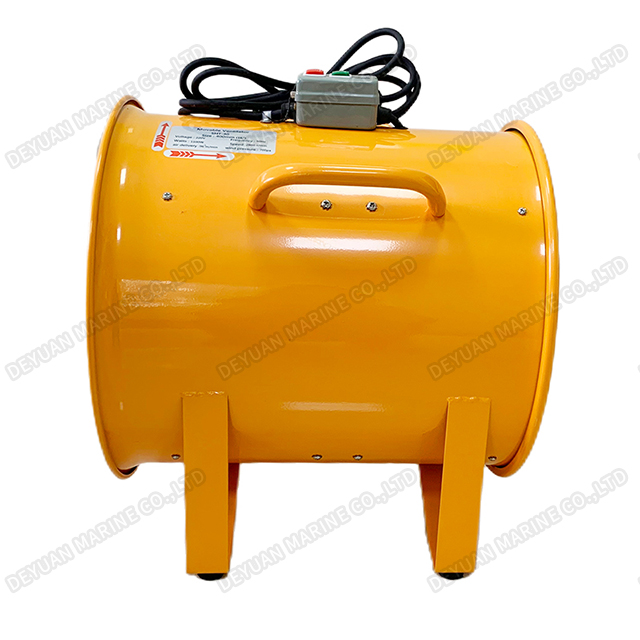

16"/18"/20" Portable Axial Fan

Brand: Deyuan Marine
Size: 16"/18"/20"
Blade: 7pcs
Power: 750W~2200W
Flow Rate: 86~330m3/min
Pressure: 700~1050Pa
Velocity: 30m/s
Power Supply: 220V 50Hz/60Hz
Phase: Single/3P
Availability:

Product Description

16"/18"/20" Portable Axial Fan


The body of the portable fan is made of hot zinc dipped plate with spray paint, the impeller is made of aluminum alloy, galvanized mesh cover, glass fiber reinforced nylon cast handle, and aluminum shell motor structure. It is light in weight and easy to move; novel in style and reasonable in structure; safe and durable, easy to use; excellent in performance and strong in suction; the portable fan can be easily connected to the air guide.


The portable fan is suitable for exhaust or air supply in containers and tunnels, and for the emission of harmful gases, smoke, dust, hot air, etc. generated by mechanical manufacturing and welding operations.


Features:


Strong air pressure, high speed, large air volume, strong suction, reasonable structure, and excellent performance


Structure:


1. Fan housing: cold rolled steel plate, surface sprayed with paint.

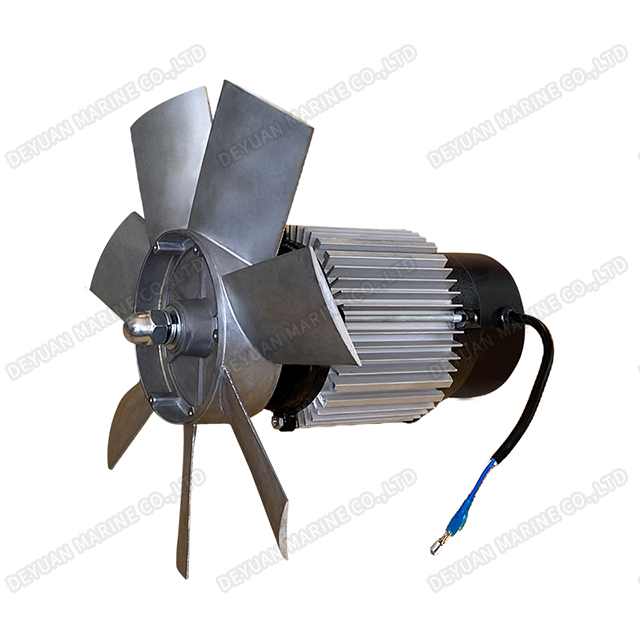

2. Impeller: cast aluminum alloy, 7 blades.

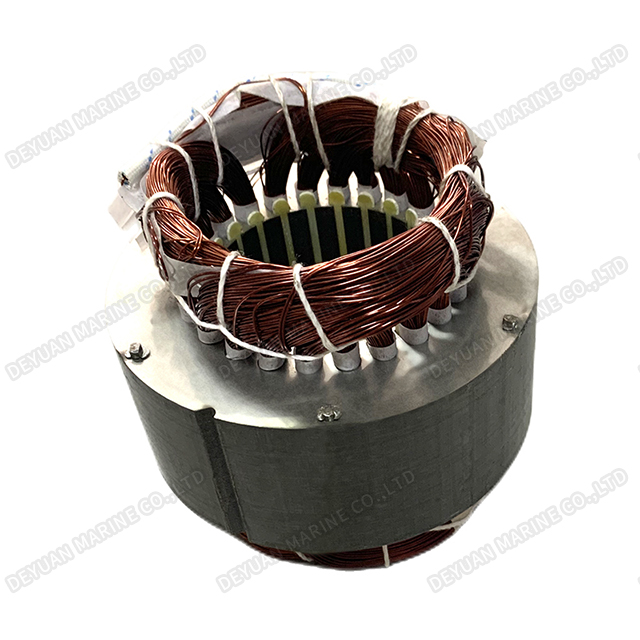

3. Motor: pure copper coil, aluminum radiation, thrust rotor, silicon steel sheet stator


4. Fan cover: powder spraying, galvanizing


5. Switch: press button


6. Handle: Welded handles on both sides


Voltage: 36V, 110V, 220V, 380V, 440V.


Frequency: 50Hz, 60Hz, 50/60Hz universal


Plug: Do not plug in for safety reasons (industry consensus)

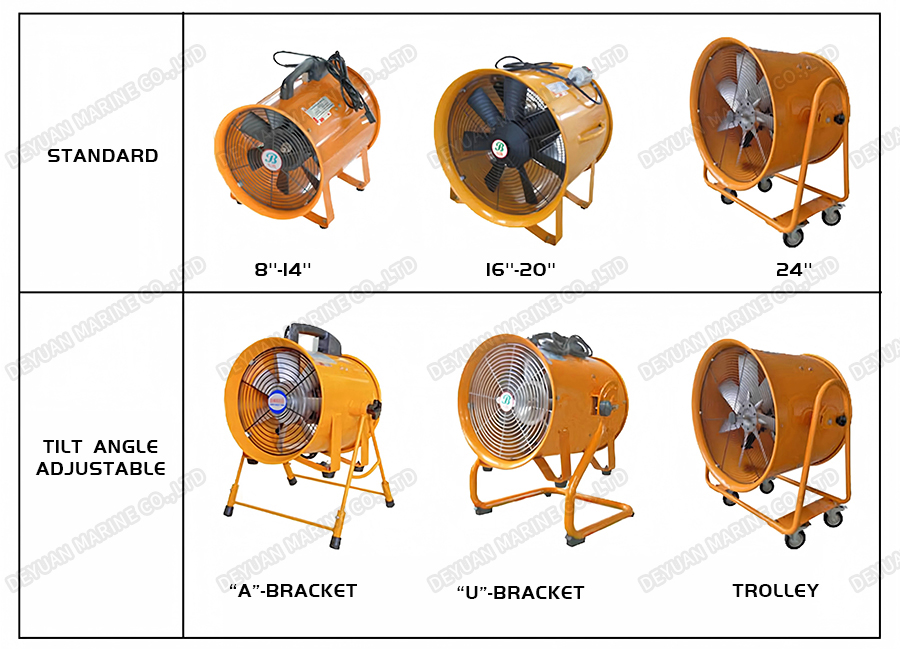

1620 Portable Axial Fan-DEYUAN MARINE 0


Models and Specifications

Model Size
(mm)
Voltage(V-) Frequency
(Hz)
Power
(W)
R.P.M(rpm) Air volume
(m³/min)
Pressure
(Pa)
Noise
(dB(A))
SHT-20 φ200 220-240/380-415 50/60 230 2800 28 245 60
SHT-20 φ200 110 60 250 3300 32 285 60
SHT-25 φ250 220-240/380-415 50/60 320 2800 45 295 68
SHT-25 φ250 110 60 350 3300 50 305 68
SHT-30 φ300 220-240/380-415 50/60 520 2800 65 375 71
SHT-30 φ300 110 60 550 3300 78 440 71
SHT-35 φ350 220-240/380-415 50/60 750 2800 82 598 76
SHT-35 φ350 110 60 900 3300 95 673 76
SHT-40 φ400 220-240/380-415 50/60 1100 2800 96 700 80
SHT-40 φ400 110 60 1200 3300 270 1000 80
SHT-45 φ450 220-240/380-415 50 1500 2800 200 970 83
SHT-45 φ450 110 60 600 1700 200 750 83
SHT-50 φ500 220-240/380-415 50 2200 2800 330 1050 88
SHT-50 φ500 110 60 750 1700 250 800 88
SHT-60 φ600 220-240/380-415 50 2200 1400 300 1100 92
SHT-60 φ600 110 60 2200 1680 330 1186 92


A variety of matching ventilation hoses are also available:

Ventilation Hose-DEYUAN MARINE

More ventilation hoses are available, welcome to inquire
