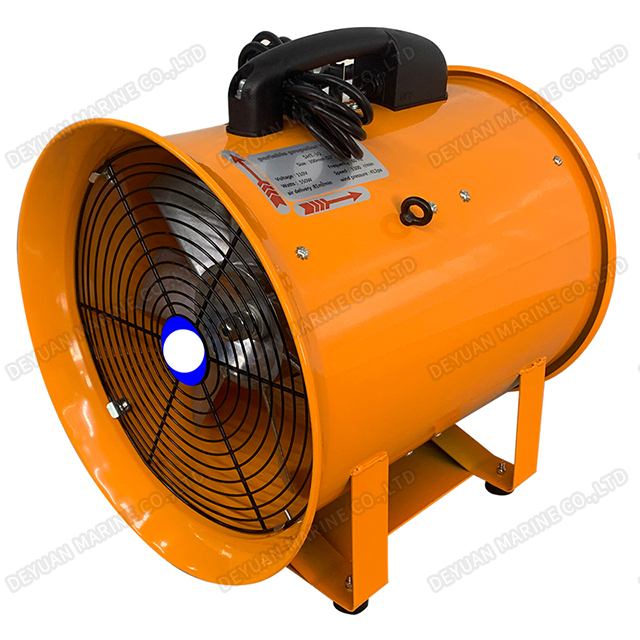

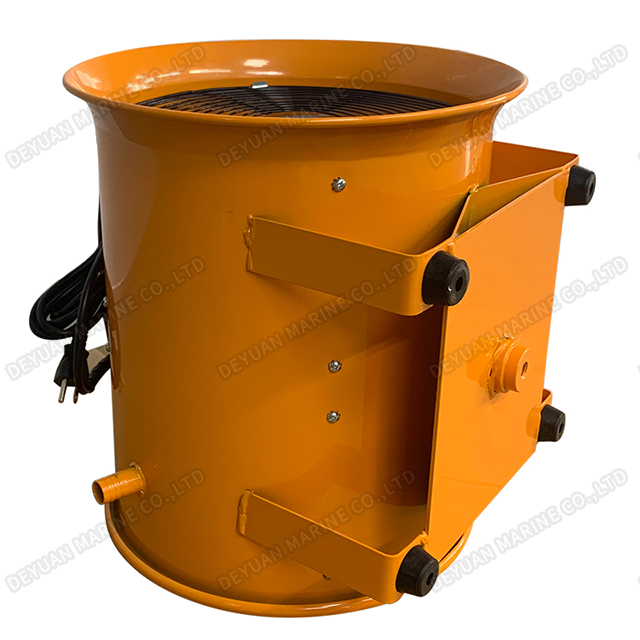

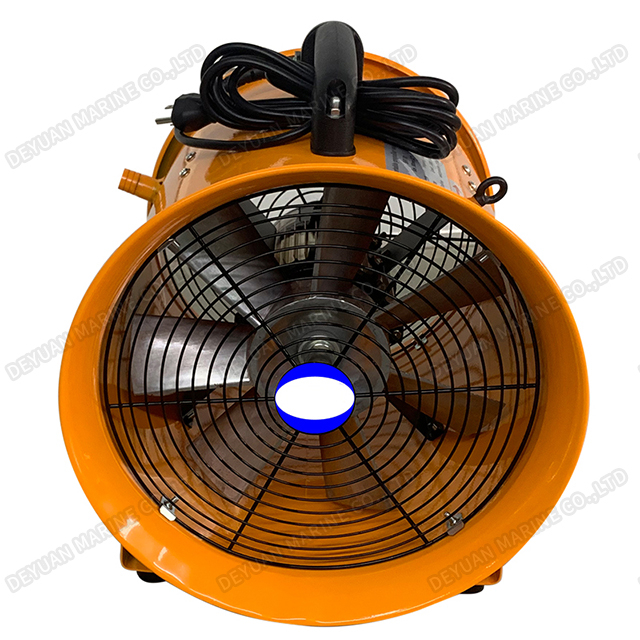

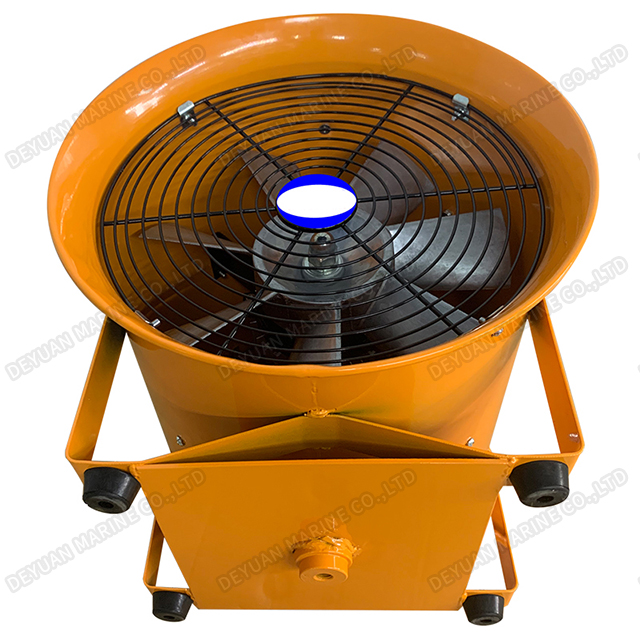

Bubble, Snowflake, Dancing Portable Axial Stage Fan

Brand: Deyuan Marine
Size: 12"
Blade: 7pcs
Power: 520W/550W
Flow Rate: 65/78m3/min
Pressure: 375~440Pa
Noise: 71db
Power Supply: 220V 50Hz/60Hz
Phase: Single/3P
Availability:

Product Description

Bubble, Snowflake, Dancing Portable Axial Stage Fan


The portable axial flow fan can be equipped with different types of brackets for 360-degree air supply. It can also be used as a dancing star fan to increase the stage effect and photography effect. It can replace snow machines, bubble machines, spray machines, etc.


Features:

Strong air pressure, high speed, large air volume, strong suction, reasonable structure, excellent performance


Structure:

1. Ventilator shell: made of hot-dip galvanized sheet, with automotive coating sprayed on the surface


2. Impeller: made of aluminum alloy, 7 blades.


3. Fan cover: dust removal, galvanized


4. Switch: press/button.


5. Integrated plastic handle, easy to carry.


6. Motor: wound with international standard copper wire.


7. Aluminum cast one-piece motor housing with heat dissipation ribs.


Available sizes:

1. 200mm, 250mm, 300mm, 350mm, light weight, with handle, with integrated switch


2. 400mm, 450mm, 500mm, 600mm, can be equipped with a bracket to adjust the blowing angle. There are handles on both sides for easy carrying.


Voltage: 36V, 110V, 220V, 380V, 440V.


Frequency: 50Hz, 60Hz, 50/60Hz universal


Plug: European, American, British, Japanese, etc.


1620 Portable Axial Fan-DEYUAN MARINE 0


Models and Parameters of Bubble, Snowflake, Dancing Portable Axial Stage Fan

Model Size
(mm)
Voltage(V-) Frequency
(Hz)
Power
(W)
R.P.M(rpm) Air volume
(m³/min)
Pressure
(Pa)
Noise
(dB(A))
SHT-20 φ200 220-240/380-415 50/60 230 2800 28 245 60
SHT-20 φ200 110 60 250 3300 32 285 60
SHT-25 φ250 220-240/380-415 50/60 320 2800 45 295 68
SHT-25 φ250 110 60 350 3300 50 305 68
SHT-30 φ300 220-240/380-415 50/60 520 2800 65 375 71
SHT-30 φ300 110 60 550 3300 78 440 71
SHT-35 φ350 220-240/380-415 50/60 750 2800 82 598 76
SHT-35 φ350 110 60 900 3300 95 673 76



A variety of matching ventilation hoses are also available:

Ventilation Hose-DEYUAN MARINE

More ventilation hoses are available, welcome to inquire
