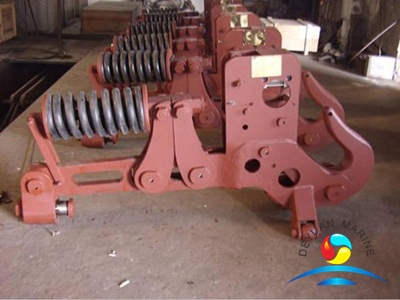

Smooth Surface Marine Steel Pneumatic Spring Towing Hook with Good Price
Pneumatic Spring Marine Towing Hook is one type of marine towing hook not only can make our vessels safety mooring in the working conditions but also the towing lines can release whether slack or under full safe working load .Marine Pneumatic Spring Towing Hook is the towing hook control by the pneumatic release mechanism with a spring .
Marine Steel Pneumatic Spring Towing Hook has this mechanism can promote the instantaneous detachment of the streamer, to ensure the safety of our vessel and person.
This Smooth Surface Pneumatic Spring Towing Hook can be released manually or pulling the rope or pressing the button manually.The remote control system can provide hydraulic or pneumatic release mechanism.
We supply the Smooth Surface Marine Pneumatic Spring Towing Hook safe working load from 200KN to 600KN .The standard of Steel Pneumatic Spring Towing Hook is CB 3064-79 . Marine Steel Pneumatic Spring Towing Hook Without Burrs, cracks ,black spot or any other defects .Steel Pneumatic Spring Marine Towing Hooks pass the test and approved by classification societies like CCS ,EC ,BV ,GL,ABS etc .
If you are interested in Smooth Surface Marine Pneumatic Spring Towing Hook please contact us .Below is the data sheet of Steel Pneumatic Spring Marine Towing Hook With Good Price for your reference .
TYPE | SWL (KN) | Dimensions (mm) | Weight (kg) | Link Dimensions (mm) | Roller Radius of Action (mm) | Air Cylinder Pressure (Mpa) | ||||||
A | B | C | D | E | G | H | I | |||||
DY20 | 200 | 1830 | 1630 | 340 | R50 | 614 | 342 | 70 | 150 | 210 | 1400~1475 | 0.6~0.8 |
DY30 | 300 | 2015 | 1780 | 384 | R70 | 805 | 595 | 85 | 170 | 240 | 1690~1805 | |
DY40 | 400 | 1935 | 1655 | 404 | R75 | 830 | 697 | 90 | 190 | 260 | 1490~1590 | |
DY60 | 600 | 2270 | 1906 | 485 | R90 | 940 | 1234 | 110 | 240 | 340 | 1740~1845 |
