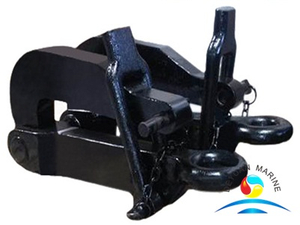

CCS Approved Marine Steel Pneumatic Harbour Type Mooring and Towing Hook

Brand:Deyuan Marine
Name: Pneumatic Harbour Towing Hook
Material: Steel
Type:Harbour type
Safe working load:150kn-1000kn
Movement:Side movement
Certificates:CCS ,ABS,BV ,GL,DNV etc
Payment:T/T,L/C ,Paypal
Origin :China

Product Description

CCS Approved Marine Steel Pneumatic Harbour Type Mooring and Towing Hook

Pneumatic Marine Harbour Towing Hooks use to the vessel when we mooring or towing in working condition .Marine Pneumatic Marine Harbour Towing Hook can release the mooring lines under the slack and full safety working load .

Vessel Pneumatic Marine Harbour Mooring Hook makes by high quality steel with good working performance .Steel Pneumatic Harbour Type Towing Hook release manually or by remote control .There are two types remote control systems .The one is hydraulic ,the other one is pneumatic release mechanism .

The safe release working load of Marine Pneumatic Steel Harbour Type Towing Hook we supply 150kn to 1000kn .The test load of Steel Pneumatic Harbour Type Marine Towing Hook is 300kn to 1500kn .


Deyuan Marine Steel Harbour Type Mooring Hook feature :

Application :Marine mooring and towing

Material: High Quality Steel

Type :Harbour type

Safe working load:150kn-1000kn

Test load:300kn -1500kn

Competitive price and professional after sales service

Movement :Side movement


Deyuan Marine Steel Harbour Type Towing Hooks approved by CCS ,EC ,GL ,ABS ect .If you have other requirement of CCS Approved Pneumatic Marine Harbour Towing Hook please let us know .

Below is the technical data sheet of Pneumatic Marine Harbour Towing Hook with CCS Certificate .

Safe working load
(Kn)
Test load
(Kn)
Release load
(Kn)
Weight
(kg)
A B C D E F G H K L M N N P
150 300 150 52 521 571 100 100 150 40 174 316 65 110 50 100 100 150
300 600 300 143 788 868 160 130 225 60 268 461 96 180 80 125 125 207
450 900 450 289 1023 1123 200 160 260 80 350 616 130 210 100 148 148 224
562 1125 562 352 1073 1183 200 180 290 90 350 616 130 250 110 170 170 245
1000 1500 1000 526 1159 1279 230 200 330 100 400 700 150 250 120 212 212 333
