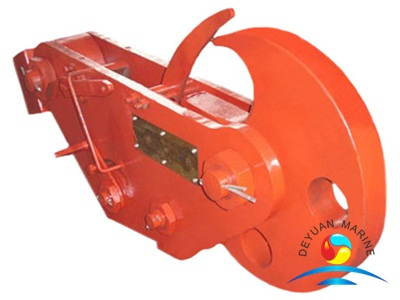

Pneumatic Control Manual Release Disc Marine Towing Hook

Type: Pneumatic Control Manual Release Disc Towing Hook
Brand: Deyuan Marine
Material: Steel
SWL: 70-1000 Kn
Surface: Painted
Certificate: ABS, LR, CCS, BV, DNV, etc.
Origin: China

Product Description

Pneumatic Control Manual Release Disc Marine Towing Hook


Type: Pneumatic Control Manual Release Disc Towing Hook
Brand: Deyuan Marine
Material: Steel
SWL: 70-1000 Kn
Surface: Painted
Certificate: ABS, LR, CCS, BV, DNV, etc.
Origin: China


1. Quick release mooring hooks have been specially designed for safe manual and optional remote release of mooring lines whilst under full load conditions.

2. This requires only a minimal effort and only a single action is required to reset the hook back to its working position.

3. The mooring hooks are available as standard with a capacity of 40,60,75,100,125,150 and 200 metric tons and can be supplied as single, double, triple, sextuple or quadruple hook assembly.

4. The mooring units can be mounted onto concrete or steel deck structures and are designed to operate through 180 degrees horizontally and 45 degrees vertically.

5. They can be supplied with integral capstans and/or various other features such as remote control and mooring load monitoring systems.

Parameters of Pneumatic Control Manual Release Disc Marine Towing Hook

Safe working load
(Kn)
Release load
(Kn)
Weight
(kg)
A B C D E F G H K L M N O P
70 70 79 512 712 185 235 100 45 280 291 65 125 60 112 97 260
150 150 174 670 905 255 325 140 60 340 377 100 250 65 144 106 284
250 250 414 923 1238 355 445 180 80 470 491 130 200 81 186 124 427
450 450 534 973 1323 355 455 200 100 470 190 130 200 115 218 158 462
650 650 918 1173 1598 454 464 220 110 600 608 162 250 125 256 173 487
1000 1000 1282 1068 1750 492 632 280 135 650 668 176 290 135 288 182 530
