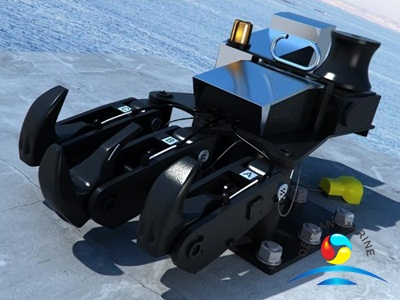

Marine Triple Quick Release Mooring Hook Deck Mounted

Type: Triple Quick Release Mooring Hook
Brand: Deyuan Marine
Material: Steel
SWL: 400-1500Kn
Surface: Painted
Certificate: ABS, LR, CCS, BV, DNV, etc.
Origin: China

Product Description

Marine Triple Quick Release Mooring Hook Deck Mounted


Type: Triple Quick Release Mooring Hook
Brand: Deyuan Marine
Material: Steel
SWL: 400-1500Kn
Surface: Painted
Certificate: ABS, LR, CCS, BV, DNV, etc.
Origin: China


1. Quick release mooring hooks have been specially designed for safe manual and optional remote release of mooring lines whilst under full load conditions.

2. This requires only a minimal effort and only a single action is required to reset the hook back to its working position.

3. The mooring hooks are available as standard with a capacity of 40,60,75,100,125,150 and 200 metric tons and can be supplied as single, double, triple, sextuple or quadruple hook assembly.

4. The mooring units can be mounted onto concrete or steel deck structures and are designed to operate through 180 degrees horizontally and 45 degrees vertically.

5. They can be supplied with integral capstans and/or various other features such as remote control and mooring load monitoring systems.


Parameters of Marine Triple Quick Release Mooring Hook Deck Mounted

Safe working load
(Kn)
Weight
(Kg)
A B BB C D E EE F G H K L M O R X
400 707 598 700 800 310 62 260 145 35 370 1296 96 290 275
90 6*M56
600 1268 863 800 900 335 70 310 162 45 407 1663 130 325 310 65 100 6*M64
750 1540 893 850 1000 375 78 325 175 45 417 1743 130 350 325 60 100 6*M72
1000 2144 959 900 1060 400 78 350 190 50 447 1859 150 380 322 55 100 6*M72
1250 2450 1030 900 1060 400 86 350 190 55 479 1930 150 380 322 55 100 7*M80
1500 3586 1235 1020 1200 475 96 385 212 55 499 2255 150 425 385 115 125 7*M90
