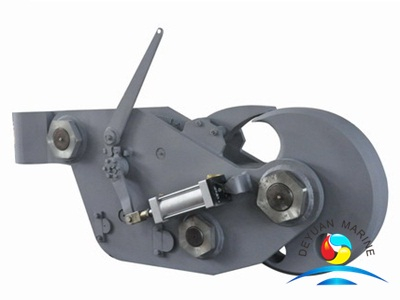

30T Pneumatic Disc Marine Towing Hook with Good Quality

Type: Pneumatic Disc Marine Towing Hook
Brand: Deyuan Marine
Material: Steel
SWL: 30-100 Ton
Surface: Painted
Certificate: ABS, LR, CCS, BV, DNV, etc.
Origin: China

Product Description

30T Pneumatic Disc Marine Towing Hook with Good Quality


Type: Pneumatic Disc Marine Towing Hook
Brand: Deyuan Marine
Material: Steel
SWL: 30-100 Ton
Surface: Painted
Certificate: ABS, LR, CCS, BV, DNV, etc.
Origin: China


1. Quick release mooring hooks have been specially designed for safe manual and optional remote release of mooring lines whilst under full load conditions.

2. This requires only a minimal effort and only a single action is required to reset the hook back to its working position.

3. The mooring hooks are available as standard with a capacity of 40,60,75,100,125,150 and 200 metric tons and can be supplied as single, double, triple, sextuple or quadruple hook assembly.

4. The mooring units can be mounted onto concrete or steel deck structures and are designed to operate through 180 degrees horizontally and 45 degrees vertically.

5. They can be supplied with integral capstans and/or various other features such as remote control and mooring load monitoring systems.


Parameters of Pneumatic Disc Marine Towing Hook

Type S.W.L.
(ton)
A B D H L N R
DY-30 30 300 285 470 355 1278 180 60
DY-50 50 395 360 470 405 1395 214 60
DY-60 60 400 380 600 450 1628 220 80
DY-70 80 410 400 600 466 1703 260 80
DY-90 90 450 430 650 502.5 1915 328 88
DY-100 100 450 430 650 502.5 1915 328 88
