Product Description
Single Point Mooring Rope
Product Introduction:

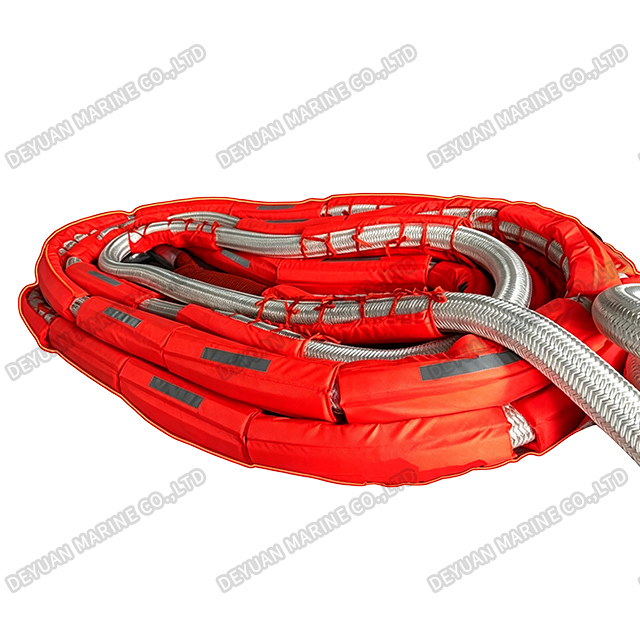

The Single Point Mooring (SPM) rope is a high-performance marine hawser engineered for the most demanding offshore applications. Utilizing an innovative circular double-layer braided structure, this rope delivers significantly higher strength, superior abrasion resistance, and a longer service life compared to traditional mooring lines. Manufactured from premium Polyamide (Nylon), it features load-bearing cores protected by a durable polyamide cover.

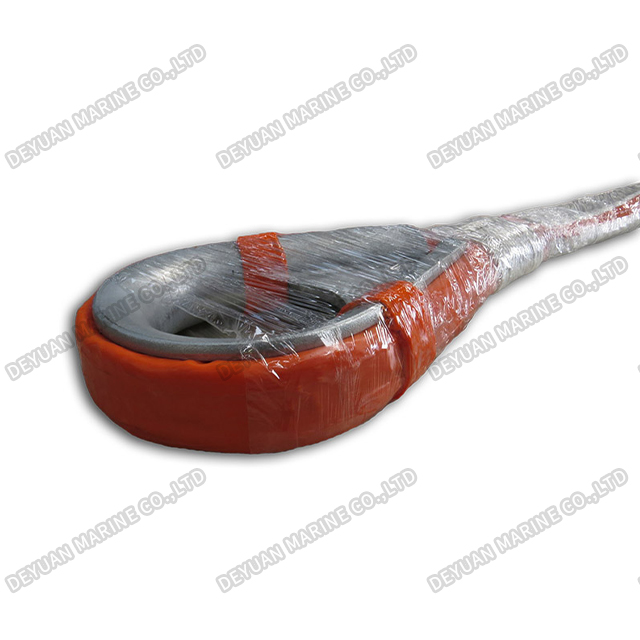

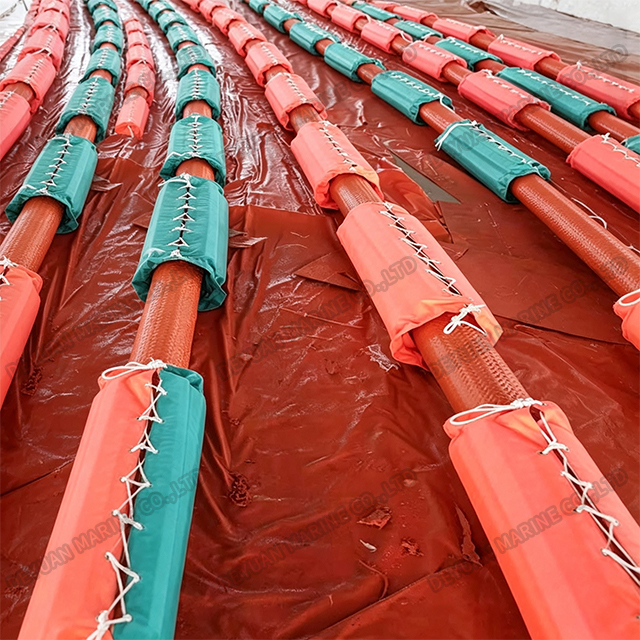

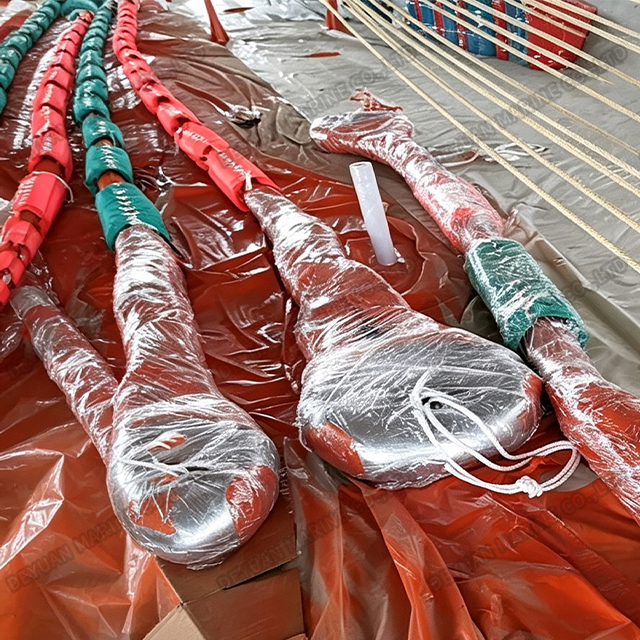

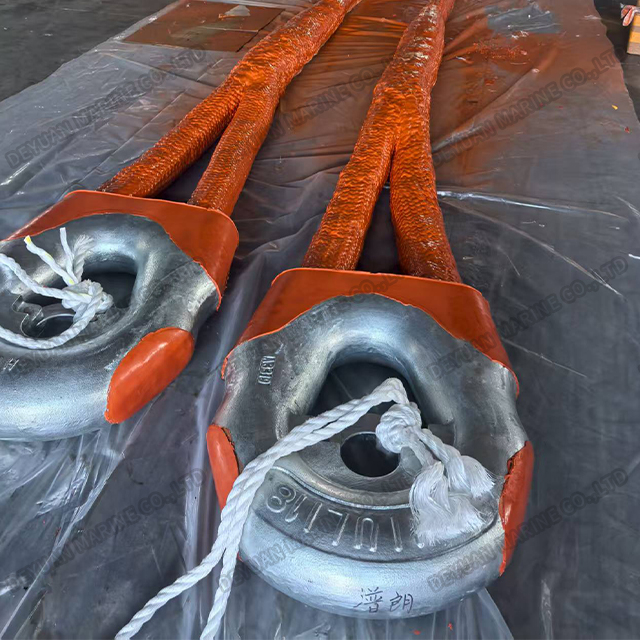

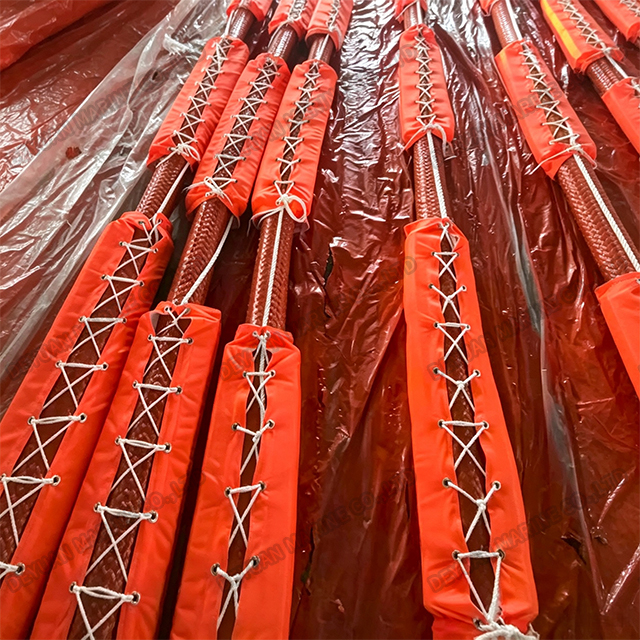

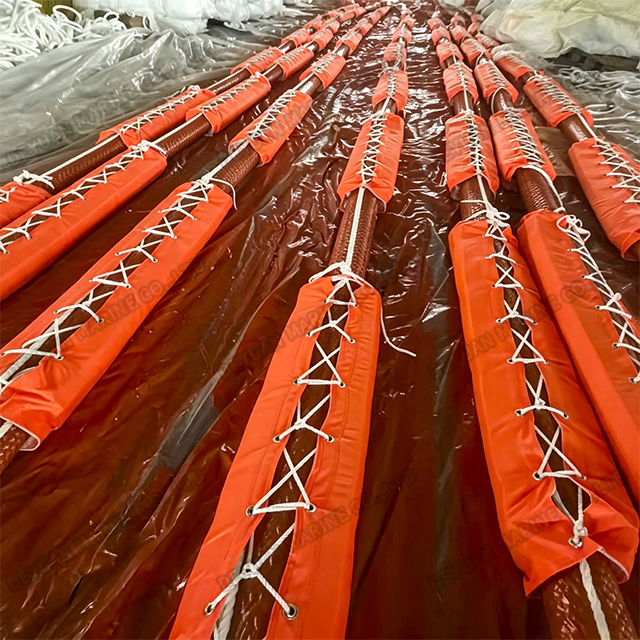

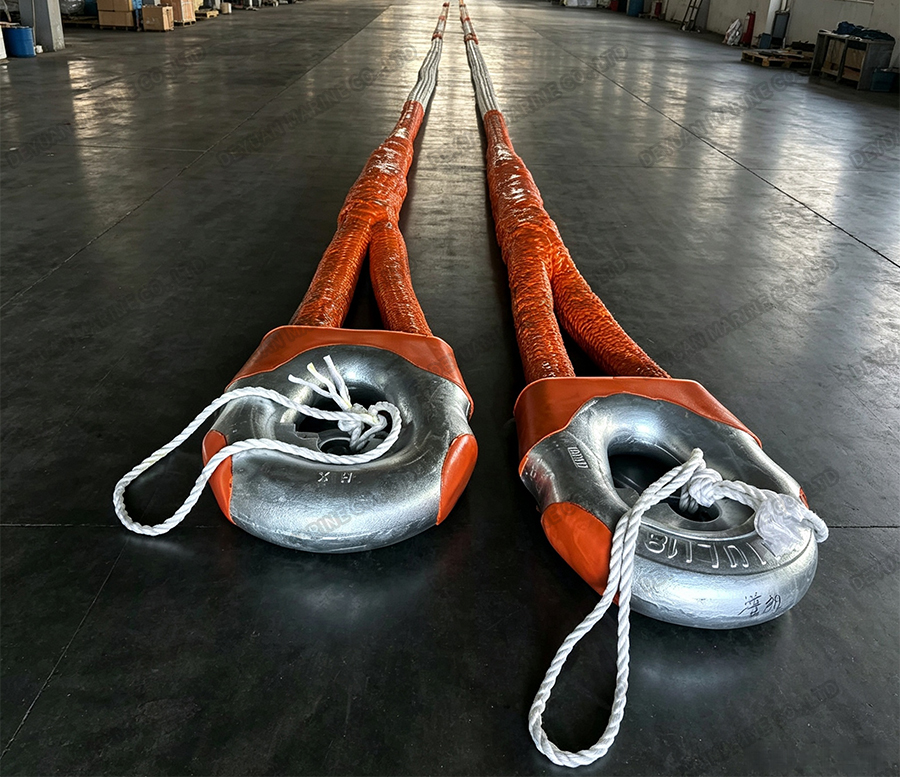

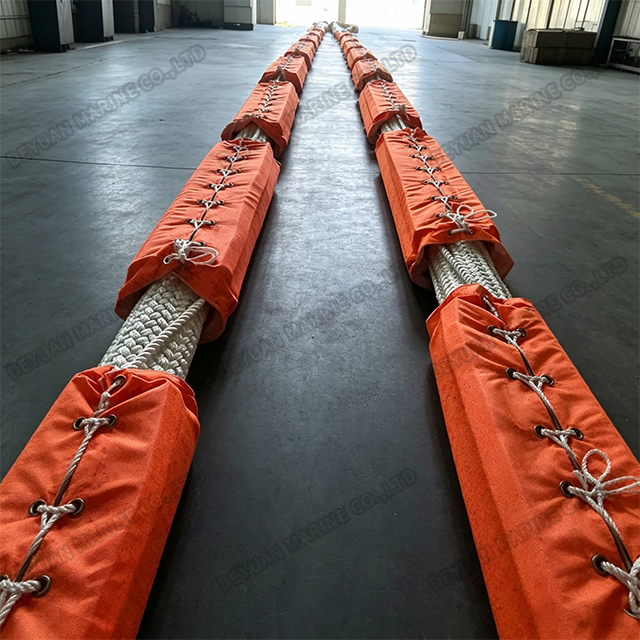

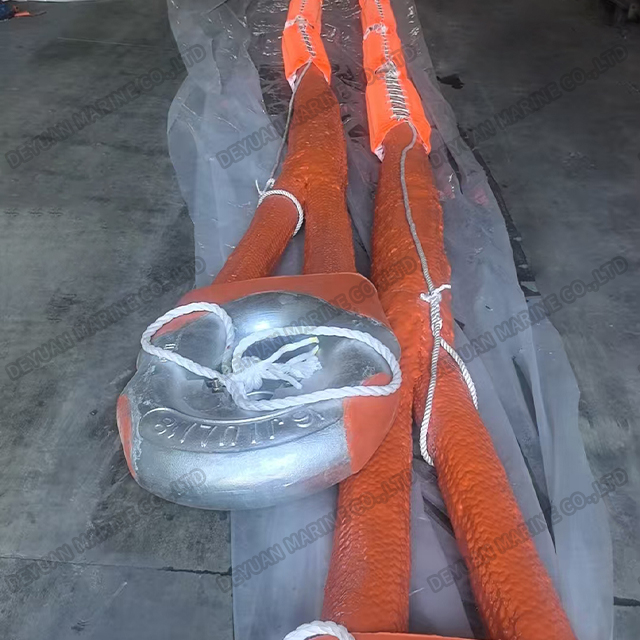

To ensure maximum reliability and safety, the SPM rope features metal thimbles at both eye splices. The rope surrounding the thimble is reinforced with an additional polyester protective jacket with a thickness of no less than 6mm, followed by an outer coating of polyurethane glue to further enhance abrasion resistance. Additionally, floats are installed starting 25 feet away from the thimble, with the quantity meeting specific operational requirements. The entire manufacturing process complies with OCIMF standard requirements.
Main Performance:
| Material | Polyamide(Nylon) |
| Construction | load-bearing cores with a protective cover of polyamide |
| Application | Marine fishing |
| Colour of Rope | White with green marker |
| Approx.Spec.Density | 1.14 non floating. |
| Melting Point | 215℃ |
| Abrasion Resistance | Excellent |
| U.V.resistance | Excellent |
| Temperature resistance | 80℃ max |
| Chemical resistance | Reasonable;acids,oxidisers &solvents willaffect nylon |
| Dry &wet conditions | Wet strength ±5% lower than dry strength |
| Weight | ±5% Tolerance |
| SPM Polyamide Hawsers are manufactured in accordance with OCIMF 2000 regulations. | |
Parameter Table:
| DIA | CIR | WT | Single Leg Type MBL | Grommet Type MBL | |||
| MM | INCH | INCH | KGS/100M | TON | KN | TON | KN |
| 80 | 3-5/32 | 10 | 406 | 132 | 1290 | 237 | 2320 |
| 88 | 3-7/16 | 11 | 506 | 167 | 1630 | 300 | 2940 |
| 96 | 3-13/16 | 12 | 585 | 191 | 1870 | 344 | 3370 |
| 104 | 4-1/8 | 13 | 699 | 222 | 2180 | 410 | 4020 |
| 112 | 4-7/16 | 14 | 798 | 263 | 2580 | 473 | 4640 |
| 120 | 4-3/4 | 15 | 914 | 298 | 2920 | 537 | 5260 |
| 128 | 5-1/16 | 16 | 1031 | 335 | 3280 | 603 | 5910 |
| 136 | 5-3/8 | 17 | 1164 | 382 | 3750 | 688 | 6740 |
| 144 | 5-11/16 | 18 | 1316 | 429 | 4210 | 773 | 7580 |
| 152 | 6 | 19 | 1490 | 478 | 4680 | 860 | 8430 |
| 160 | 6-5/16 | 20 | 1624 | 526 | 5160 | 947 | 9280 |
| 168 | 6-5/8 | 21 | 1785 | 574 | 5620 | 1033 | 10120 |
| 176 | 6-15/16 | 22 | 1986 | 641 | 6280 | 1153 | 11300 |
| 184 | 7-1/4 | 23 | 2165 | 693 | 6790 | 1248 | 12230 |
| 192 | 7-9/16 | 24 | 2351 | 741 | 7260 | 1334 | 13070 |
| 200 | 7-7/8 | 25 | 2554 | 811 | 7940 | 1459 | 14300 |
| 208 | 8-3/16 | 26 | 2756 | 884 | 8670 | 1592 | 15600 |
| 216 | 8-1/2 | 27 | 2957 | 952 | 9330 | 1714 | 16800 |
| 224 | 8-13/16 | 28 | 3161 | 1026 | 10050 | 1846 | 18090 |
| 232 | 9-1/8 | 29 | 3390 | 1094 | 10720 | 1969 | 19300 |
| 240 | 9-7/16 | 30 | 3628 | 1173 | 11500 | 2112 | 20700 |
| 248 | 9-3/4 | 31 | 3874 | 1257 | 12320 | 2262 | 22170 |
| 256 | 10-1/16 | 32 | 4128 | 1340 | 13130 | 2411 | 23630 |
Applications:
Primarily designed for marine and fishing industries, specifically for Single Point Mooring systems, offshore terminals, and heavy-duty vessel mooring.
Certifications & Compliance:
*Complies with OCIMF standard requirements.
*SPM Nylon Hawsers are manufactured in accordance with OCIMF 2000 regulations.
Customization & Specifications:
1.Color: Standard color is white with a green marker; custom colors are available upon request.
2.Dimensions: Available in diameters ranging from 80mm (3-5/32") to 256mm (10-1/16"), with custom sizes available upon request.

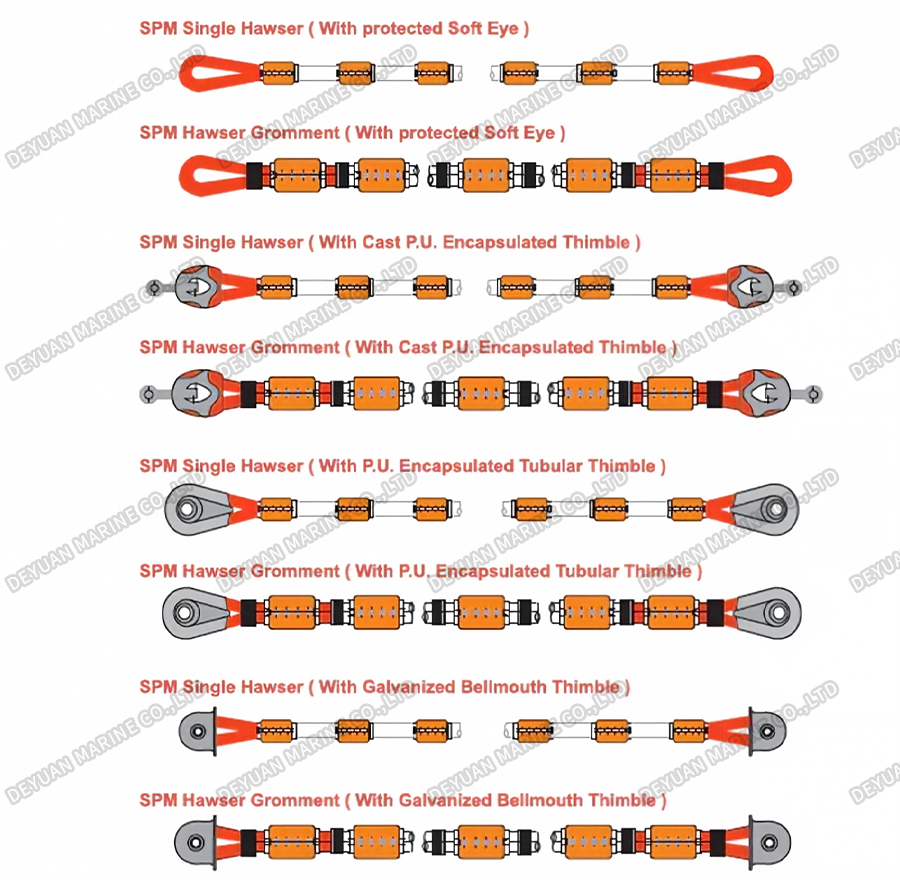

3.Both Single Leg Type and Grommet Type (double leg combination) configurations are available, with Minimum Breaking Loads (MBL) ranging up to 2,411 TON (23,630 KN) for grommet types.
