Product Description

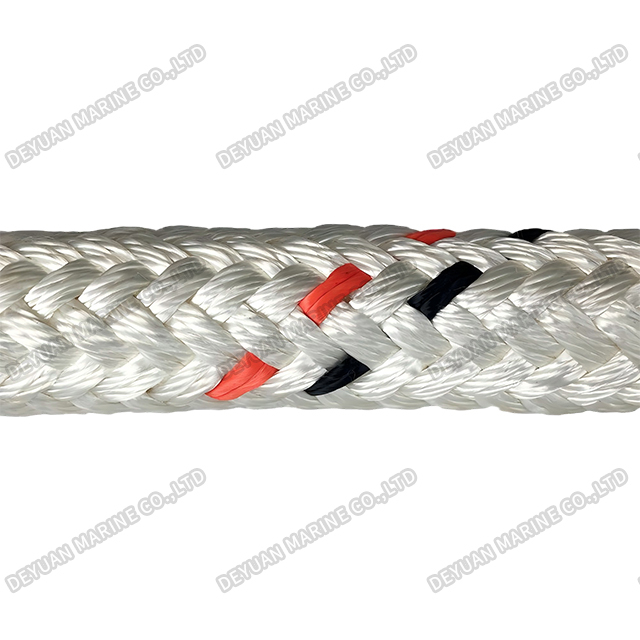

Double Braided UHMWPE Rope
Product Introduction:
Our Marine Double Braided UHMWPE Rope is a premium, hybrid mooring line engineered for superior performance in the most demanding marine environments. It features a high-strength Ultra-High Molecular Weight Polyethylene (UHMWPE) core securely encased in a durable polyester cover. This unique double-braided construction combines the extreme tensile strength of UHMWPE with the excellent abrasion resistance of polyester.

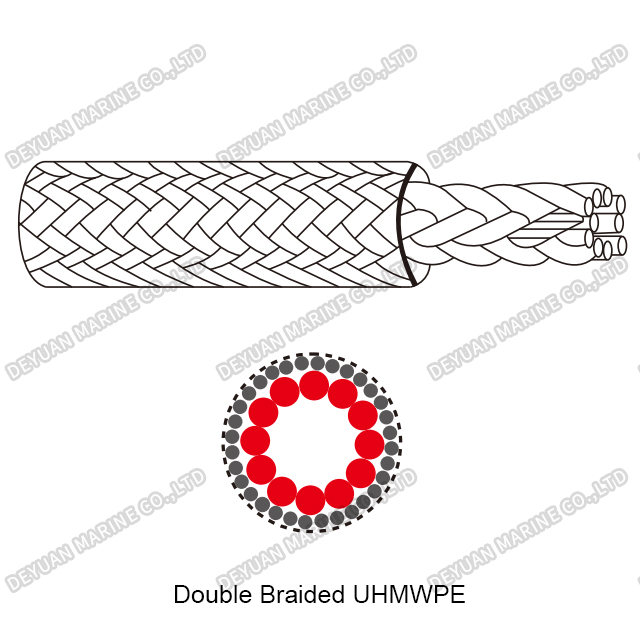

Advanced Core & Cover Design:
The inner core is woven from 100% UHMWPE fiber, providing ultra-high strength and minimal elongation (4-5% at break). The outer polyester jacket serves as a protective shield, significantly enhancing the rope's abrasion resistance and protecting the load-bearing core from external wear. This specific hybrid design ensures the rope is non-rotating and anti-kinking, delivering reliable and safe handling during critical offshore operations.
Main Performance:
| Fiber(core/cover) | UHMWPE/Polyester |
| Melting Point | 150℃/265℃ |
| Elongation at break | 4-5% |
| Water Absorption | None |
| UV resistance | Good |
| Abrasion resistance | Very Good |
| Dry & Wet conditions | Wet strength equals dry strength |
| Range of use | Fishing,off-shore installation,mooring |
| Coil length | 220m |
| Spliced strength | 10% lower |
| Weight and length tolerance | ±5% |
| High Strength | |
| Lowest elongation | |
| Non-rotating and anti-kinking | |
| Longer Life and easy handling | |
| MBL=Minimum Breaking Load conform ISO 2307 | |
| Other sizes available upon request | |

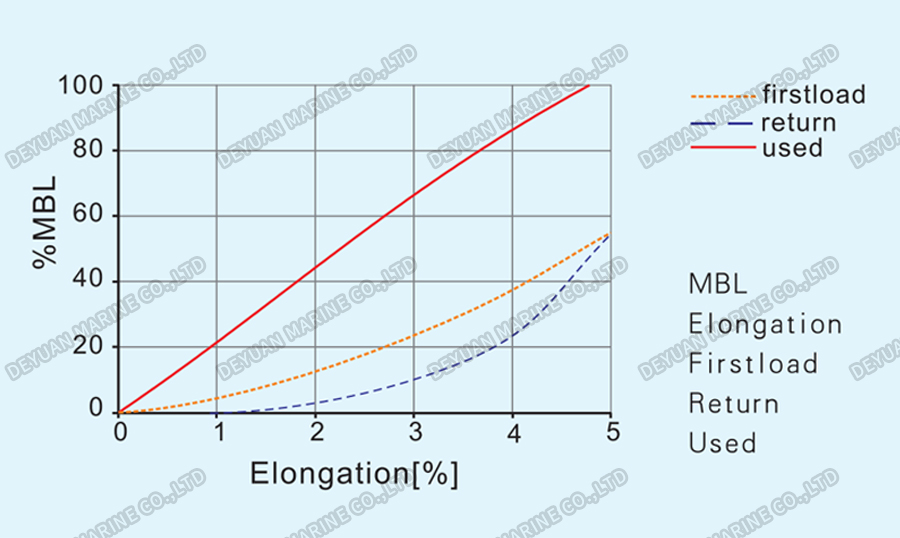

Technology Comparison:
Parameter Table:
| DIA | CIR | WT | B/S | |||
| MM | INCH | INCH | KGS/100M | LBS/100FT | TON | KN |
| 8 | 5/16 | 1 | 4.2 | 2.8 | 5.0 | 49 |
| 10 | 13/32 | 1-1/4 | 6.3 | 4.3 | 7.4 | 72 |
| 12 | 15/32 | 1-1/2 | 8.9 | 6.0 | 10.4 | 102 |
| 14 | 9/16 | 1-3/4 | 12.0 | 8.0 | 14.2 | 139 |
| 16 | 5/8 | 2 | 16.7 | 10.4 | 18.6 | 182 |
| 18 | 23/32 | 2-1/4 | 21.1 | 13.0 | 23.6 | 231 |
| 20 | 13/16 | 2-1/2 | 26.0 | 15.9 | 29.3 | 287 |
| 22 | 718 | 2-3/4 | 31.0 | 19.2 | 35.5 | 348 |
| 24 | 15/16 | 3 | 36.9 | 22.7 | 42.3 | 414 |
| 26 | 1-1/32 | 3-1/4 | 43.5 | 26.6 | 49.7 | 487 |
| 28 | 1-1/8 | 3-1/2 | 50.0 | 30.8 | 57.7 | 565 |
| 30 | 1-3/16 | 3-3/4 | 56.8 | 35.2 | 66.3 | 649 |
| 32 | 1-1/4 | 4 | 64.0 | 40.0 | 75.5 | 740 |
| 34 | 1-11/32 | 4-1/4 | 71.8 | 45.1 | 85.4 | 836 |
| 36 | 1-7/16 | 4-1/2 | 78.9 | 50.5 | 95.7 | 938 |
| 38 | 1-1/2 | 4-3/4 | 86.1 | 56.2 | 107.0 | 1046 |
| 40 | 1-19/32 | 5 | 94.8 | 62.2 | 118.0 | 1160 |
| 42 | 1-21/32 | 5-1/4 | 105.0 | 68.5 | 130.0 | 1275 |
| 44 | 1-3/4 | 5-1/2 | 114.0 | 75.2 | 143.0 | 1399 |
| 48 | 1-718 | 6 | 137.0 | 89.5 | 169.0 | 1659 |
| 52 | 2-1/16 | 6-1/2 | 160.0 | 105.0 | 197.0 | 1934 |
| 56 | 2-1/4 | 7 | 183.0 | 123.0 | 227.0 | 2229 |
| 60 | 2-3/8 | 7-1/2 | 209.0 | 141.0 | 259.0 | 2541 |
| 64 | 2-1/2 | 8 | 236.0 | 160.0 | 293.0 | 2872 |
| 68 | 2-11/16 | 8-1/2 | 264.0 | 180.0 | 329.0 | 3220 |
| 72 | 2-7/8 | 9 | 295.0 | 202.0 | 366.0 | 3584 |
| 76 | 3 | 9-3/8 | 331.0 | 224.0 | 404.0 | 3960 |
| 80 | 3-5/32 | 10 | 359.0 | 249.0 | 445.0 | 4356 |
| 88 | 3-7/16 | 11 | 434.0 | 301.0 | 529.0 | 5187 |
| 96 | 3-13/16 | 12 | 511.0 | 358.0 | 619.0 | 6071 |
| 104 | 4-1/8 | 13 | 598.0 | 419.0 | 715.0 | 7003 |
| 112 | 4-7/16 | 14 | 694.0 | 485.0 | 814.0 | 7979 |
| 120 | 4-3/4 | 15 | 786.0 | 556.0 | 918.0 | 8994 |
| 128 | 5 | 16 | 894.0 | 633.0 | 1044.0 | 10233 |
| 136 | 5-3/10 | 17 | 1010.0 | 714.0 | 1179.0 | 11552 |
| 144 | 5-3/5 | 18 | 1132.0 | 801.0 | 1322.0 | 12951 |
| 152 | 6 | 19 | 1261.0 | 892.0 | 1473.0 | 14430 |
Key Features & Benefits:
1.Extreme Strength & Low Stretch: High strength with minimal elongation (4-5% at break) for precise load control.
2.Zero Water Absorption: Water absorption is "None," ensuring wet strength equals dry strength.
3.Superior Abrasion Resistance: The polyester outer cover protects the UHMWPE core, ensuring a longer lifespan even in harsh conditions.
4.Anti-Kinking & Non-Rotating: The double braided structure prevents twisting and kinking under heavy loads.
5.Environmental Resilience: Good UV resistance. Melting point of 150°C (UHMWPE) / 265°C (Polyester).
6.Easy Handling: Long service life with easy splicing (Note: spliced strength is typically 10% lower than minimum breaking load).
7.Customizable: Available in a standard coil length of 220m. Weight and length tolerance is ±5%. Custom sizes are available upon request.
Typical Applications:
*Commercial Fishing and Aquaculture.
*Offshore Marine Engineering and Installation.
*Ship Mooring and Anchoring.
*Heavy Load Handling and Rigging.
Colour & Customisation:

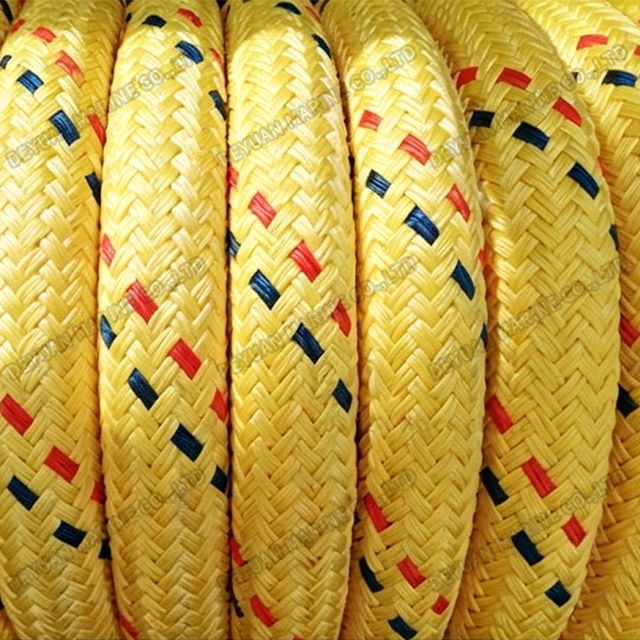

*Standard colour: yellow (high visibility and universally accepted in the maritime industry)

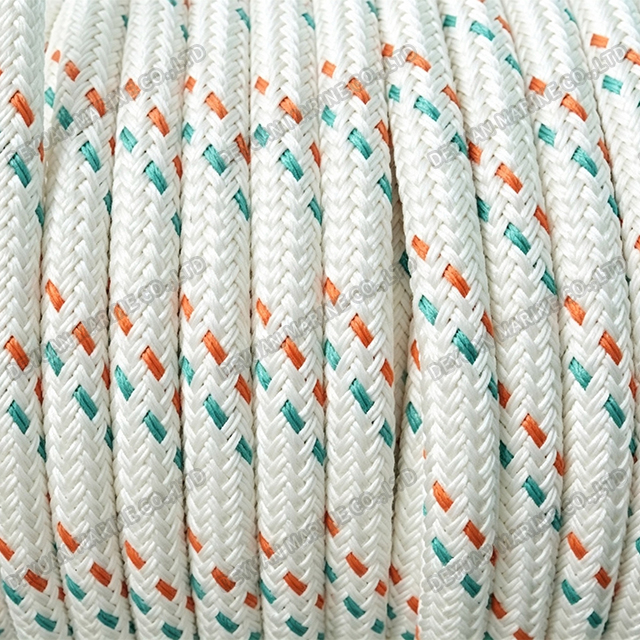

*Custom colours (e.g., blue, red, orange,, green, or striped patterns) are available on request for easy identification
Certifications:
Our ropes are manufactured under strict quality control systems and can be supplied with classification society approval certificates from leading international bodies such as DNV, ABS, LR, BV, and CCS upon request. These certifications ensure full compliance with international maritime regulations, port state controls, and insurance underwriter requirements, giving you complete operational peace of mind.
