Product Description

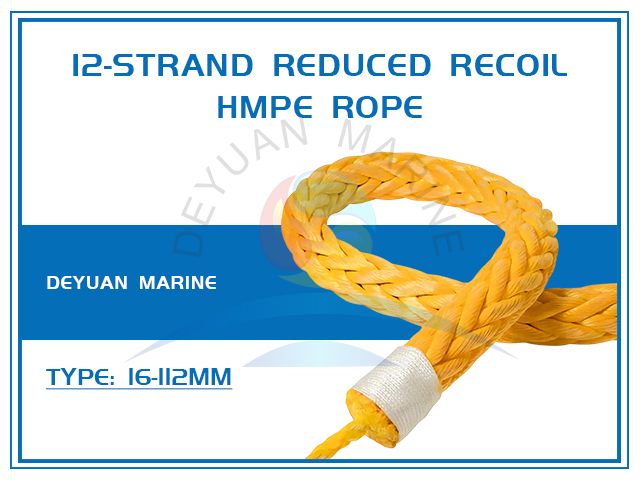

12-Strand Reduced Recoil HMPE Rope
Product Introduction:
The 12-Strand Reduced Recoil HMPE Rope is a high-performance synthetic mooring solution designed to replace traditional steel wire ropes and conventional chemical fiber ropes. Engineered with an innovative internal elastic component, this rope delivers exceptional safety by significantly reducing recoil risk (snap-back) compared to steel wire.
Despite having a strength equivalent to steel wire of the same diameter, it weighs only one-eighth as much. This drastic weight reduction, combined with a smaller diameter than traditional synthetic ropes, makes handling, splicing, and inspection remarkably easy. It ultimately saves valuable time during mooring operations and reduces vessel fuel consumption.
Key Features & Benefits:
1.Enhanced Safety: Significantly reduces rebound risk, protecting crew and equipment during snap-back incidents.
2.Lightweight & Easy to Handle: 1/8 the weight of steel wire, allowing for effortless operation, splicing, and inspection.
3.Superior Stability: Does not twist under load, offering higher structural stability and low elongation.
4.Cost & Time Efficient: Saves mooring time and lowers fuel consumption due to reduced weight and smaller diameter.
5.Excellent Durability: Outstanding resistance to UV radiation, chemicals, and harsh marine environments.
Main Performance:
| Construction | 12-Strand |
| Materials | HMPE with Stretchy Part |
| Coil length | 220m |
| Density | <1g/cm³Floating |
| Melting Point | 147-220℃ |
| Chemical Resistance | Excellent |
| UV Resistance | Excellent |
| Range of use | Fishing,off-shore installation,mooring |
Parameter Table:
| SIZE | WEIGHT | ISO MBF | |||
| Dia.(mm) | Circ. (inch) | g/m | kg/220m | kN | ton |
| 16 | 2 | 173 | 38.1 | 267 | 27.2 |
| 18 | 21/4 | 206 | 45.3 | 322 | 32.9 |
| 20 | 2-1/2 | 249 | 54.8 | 384 | 39.2 |
| 24 | 3 | 346 | 76.1 | 533 | 54.4 |
| 28 | 31/2 | 466 | 102.5 | 704 | 71.9 |
| 30 | 3314 | 534 | 117.5 | 789 | 80.5 |
| 32 | 4 | 611 | 134.4 | 918 | 93.7 |
| 34 | 41/4 | 677 | 148.9 | 989 | 100.9 |
| 36 | 41/2 | 742 | 163.2 | 1104 | 112.7 |
| 38 | 43/4 | 878 | 193.2 | 1210 | 123.5 |
| 40 | 5 | 942 | 207.2 | 1329 | 135.6 |
| 44 | 51/2 | 1140 | 250.8 | 1589 | 162.1 |
| 48 | 6 | 1326 | 291.7 | 1807 | 184.4 |
| 52 | 61/2 | 1574 | 346.3 | 2136 | 217.9 |
| 56 | 7 | 1822 | 400.8 | 2464 | 251.5 |
| 60 | 71/2 | 2099 | 461.8 | 2778 | 283.4 |
| 64 | 8 | 2349 | 516.8 | 3092 | 315.5 |
| 68 | 81/2 | 2674 | 588.3 | 3496 | 356.7 |
| 72 | 9 | 2999 | 659.8 | 3898 | 397.7 |
| 76 | 91/2 | 3309 | 728.0 | 4263 | 435.0 |
| 80 | 10 | 3651 | 803.2 | 4628 | 472.2 |
| 88 | 11 | 4361 | 959.4 | 5464 | 557.6 |
| 96 | 12 | 5111 | 1124.4 | 6322 | 645.1 |
| 104 | 13 | 6198 | 1363.6 | 7522 | 767.6 |
| 112 | 14 | 6991 | 1538.0 | 8558 | 873.2 |
Product Applications:
*For large vessels, tankers, and SPM mooring.
*For deepwater platform positioning, offshore wind installation, and lifting.
*For ocean towing and emergency rescue.
*For trawling and deep-sea cage mooring.
*For naval mooring and ROV operations.
Colour & Customisation:
*Standard colour: yellow (high visibility and universally accepted in the maritime industry)
*Custom colours (e.g., blue, red, orange,, green, or striped patterns) are available on request for easy identification
Certifications:
Our ropes are manufactured under strict quality control systems and can be supplied with classification society approval certificates from leading international bodies such as DNV, ABS, LR, BV, and CCS upon request. These certifications ensure full compliance with international maritime regulations, port state controls, and insurance underwriter requirements, giving you complete operational peace of mind.
