Product Description

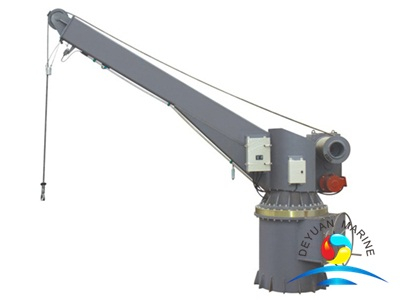

SOLAS Approved Marine 21KN Single Arm Davit For Rescue Boat
The Single Arm Davit is manufactured and tested under the approval of Classification Society in compliance with the requirements of MSC.47(66)----1974 SOLAS Amendments and MSC.48(66)----International LSA.
Marine single arm davit is a freestanding deck mounted davit consisting of a davit arm, column and winch. It is mainly used for lifting and lowering a boat/raft or other types of raft whose lowering load is not more than 25kN. The boat is lowered by means of remote control, the crew can release and stop the hand brake of the winch from the boat by wire connection to the brake arm and wire spool on the winch. Alternatively the crew can operate the hand brake on the deck. Slewing out the davit arm is realized manually by means of a crank handle.
The davit is a Single arm slewing type davit , it has left and right version to fit customer needs,besides, SOLAS Approved Single Arm Davit lowers the boat on the water by the help of its own weight,it is a hydraulic slewing type davit and it would be slewed by accumulator or manual pump driven in case of power failure.
Deyuan Marine is specialized in manufacturing and exporting marine equipment . To guarantee good quality, we follow ISO9000 standards to inspect our goods. From raw material purchase to pre-shipment inspection, we keep an eye on every step to ensure the satisfaction of our customer on quality , Our 21KN Single Arm Davit are approved by ABS, BV, CCS, DNV, EC, GL, KR, LR, NK and RINA.
We supply all types of SOLAS Approved Marine Davit and Various Marine Equipment. For more detail information, kindly feel free to contact us via Email or Phone,we will handle your case quickly and quote for you .
Model | Slewing road(KN) | S.W.L | Suitable rescue boat | Suitable life raft |
JYR21 | 14 | 21 | GJ-4.25; | 21person raft |
GJ-4.5 | ||||
GJ-5.0 | ||||
JYRC21 | ||||
JYR14 | 14 | 14 | GJ-4.25; | 15person raft |
GJ-4.5 | ||||
GJ-5.0 | ||||
JYRH14 | 0.2 | 14 | / | 15person raft |
JYRH21 | 0.2 | 21 | / | 21person raft |
Single Arm Davit Drawing For Reference:
