Marine A-Frame Type Lifeboat Rescue Boat Davit With Good Price

Brand:Deyuan Marine
Product Name:
Material:Cast Steel
Size:Up to you
MSL:25KN-45KN
Certificate:CCS ,EC,ABS ,BV etc
Payment:T/T,L/C ,Paypal
Guarantee: 12 months
  • Item: Rescue Boat Davit A-Frame Type
  • Material : Soft steel
  • Application: launching a fully manned rescue boat
  • Standard: MSC.47(66)-Amendments to SOLAS 1974 & MSC.48(66)
  • Certificate: CCS,DNV,BV,ABS,LR etc
  • Warranty: 1year
Availability:

Product Description

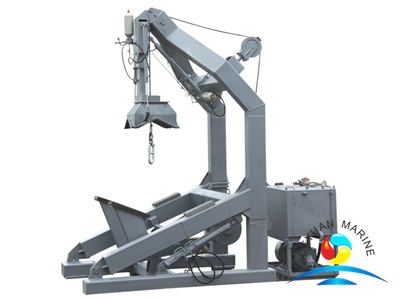

Marine A-Frame Type Lifeboat Rescue Boat Davit With Good Price

Marine A-Frame Type Free Fall Lifeboat Rescue Boat Davit meets the requirements of the latest amendments of SOLAS and rules of international life saving equipments (LSA),Revision bill of MSC.218(82) and resolutions of MSC.81(70),Revision bill of MSC. 226(82) to build.

Rescue Boat Davit is Necessary life saving equipment for cruise, offshore oil platform and ship engineering. A-Frame Rescue Boat Davit can match any domestic high speed lifeboats achieving international advanced level.

Fast rescue boat handling some one calls them Fast Rescue Boat Landing Device .The Fast Rescue Boat Device is a special equipment which is used to discharge lifeboat or work boat ,we can call them Marine A-Frame Boat Davit. On both sides of the ship's deck, on the side of the ship, the boat will be held out, hoisted or lowered.

According to the different modes of the boat from the side of the board .Marine Lifeboat Davits is divided into three types: roll-out type, rolling type and gravity type

Deyuan Marine offer many size of A-Frame Type Boat Davit .You can choose the suitable Fast Marine Rescue Boat Davit according to your need .Below is the data sheet of A-Frame Lifeboat Davit for your information .Any inquiry please contact our sales team .We will reply within 2 days .

Model Max. Safety working load Hoisting load Lowering load Hoisting speed Landing speed Remarks
LFR-28 28KN 28KN 28KN 48m/min 40-60m/min With the wave compensation
Anti-swing function
LFR-30 30KN 28KN 30KN 18m/min 40-60m/min Electrical winch
LR28-1 28KN 28KN 28KN 48m/min 40-60m/min Hydraulic winch
LFR45-1 45KN 45KN 45KN 48m/min 40-60m/min Auto- wave compensation
LFR45-2 45KN 45KN 45KN 48m/min 40-60m/min Manual wave compensation
LR45-1 45KN 45KN 45KN 18m/min 40-60m/min Without anti-swing function
LR45-2 45KN 45KN 45KN 18m/min 40-60m/min Electrical winch


Drawing for A frame type rescue boat davit :
A frame davit China deyuan marine
