Product Description

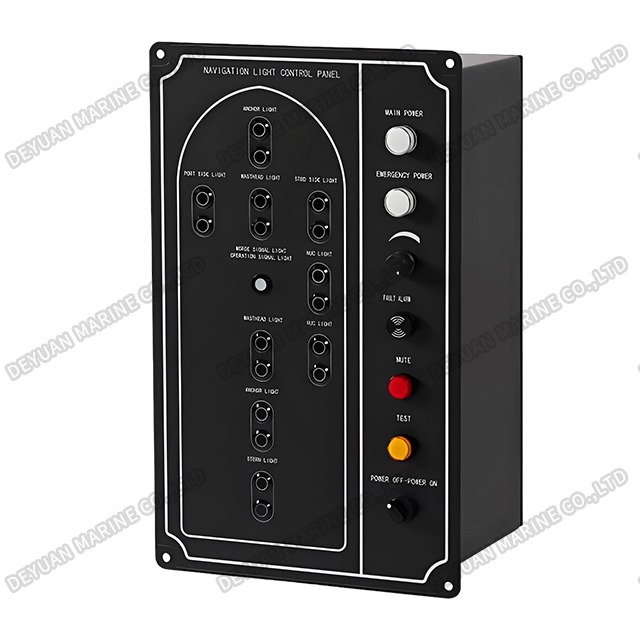

NLC Type Navigation Light Controllers
Product Introduction
The Marine Navigation Light Controller is a centralized intelligent control system designed for the precise management and monitoring of a vessel's navigation lights. Compliant with international maritime regulations such as COLREGs and SOLAS, it ensures proper light configurations for different operational modes—whether underway, anchored, or towing. The system features automatic failure detection, alarm signaling, and redundant power support to enhance safety and reliability. With user-friendly interfaces and robust construction suitable for harsh marine environments, the NLC simplifies operation, reduces human error, and supports continuous compliance during day and night navigation.

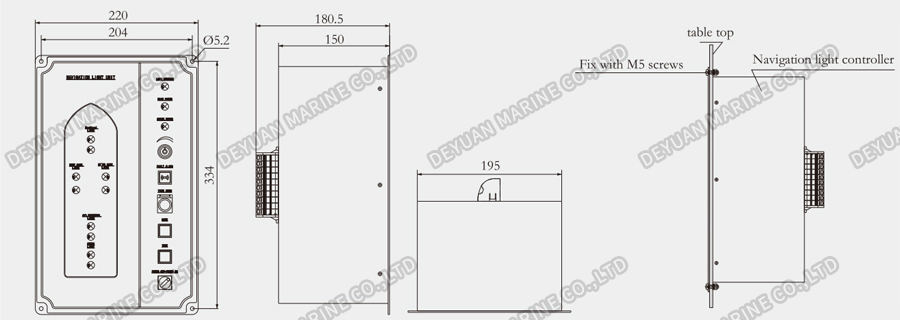

Drawing
Technical Data
| Part Number | NLC |
| Rated Voltage | DC24V、AC110V/50Hz、AC220V/50Hz、AC230V/50/60Hz |
| Controller Power | 10W |
| Ouput Way | According To The Requirement |
| Control Power | 100W/Way |
| Ouput Signal | Comprehensive Alarm Signal(normally open passive contact) |
| Communication Interface | 1Way CAN,1Way RS485 (Meet IEC61162 Requirement) |
| Protection Class | Control Panel IP22,Control Box IP44 |
| Installation Method | Control Panel Recessed Mounting,Contol Box Wall mounted or Built-in Bridge Console |
| Ambient Temperature | -10℃~+45℃ |
Product Features
*The control panel is provided with LED display and key operation, simulate the location of the navigation light based on the real ship layout, easy to observe and operate.
* The control panel supports LED type of navigation light.
* The control panel has sound-light failure alarm for navigation light.
* The control panel has an indicator dimming function.
* The control panel has main and standby power supply switching and failure alarm.
*With external communication interface and VDR interface,and with integrated alarm output interface.
The Scope Of Application
The navigation light controller is used to control the navigation lights and display their status.It has the bottons for dimming lamp test and silence and owns he functions of automatic switching of main and standby power supply, mail power failure alarm and navigation light failure alarm.The products meet the requirements of CCS classification rules for sea-going steel ships,MSC.253(83) resolution, IMO A.694(17) resolution,and statutory inspection rules for ships and offshore installations.
