Product Description

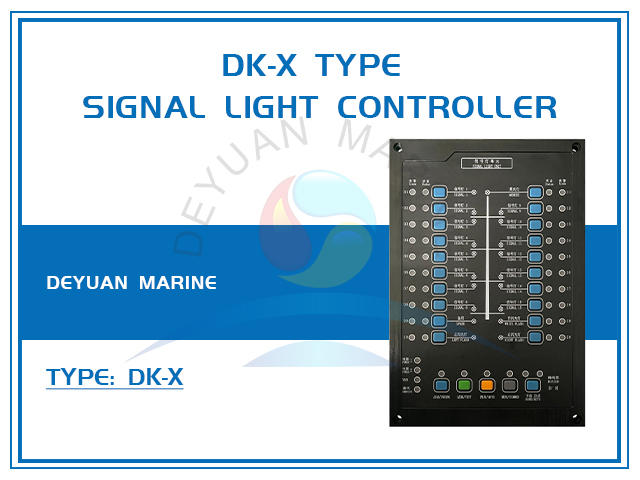

DK-X Type Signal Light Controller
Product Introduction
The Marine DK-X Signal Light Controller is a state-of-the-art, intelligent control unit designed for the precise and reliable management of all vessel navigation and signal lights in full compliance with international COLREGs and SOLAS regulations. Engineered for durability in harsh maritime environments, it features a robust, corrosion-resistant enclosure with a high IP rating. Its core intelligence enables automatic sequencing, failure detection, and instantaneous switchover to backup lamps, ensuring uninterrupted signaling and enhanced navigational safety. The user-friendly interface allows for easy manual override and real-time system status monitoring. Ideal for commercial ships, workboats, and specialized vessels, the DK-X controller delivers critical reliability, reduces operational workload, and provides peace of mind at sea.

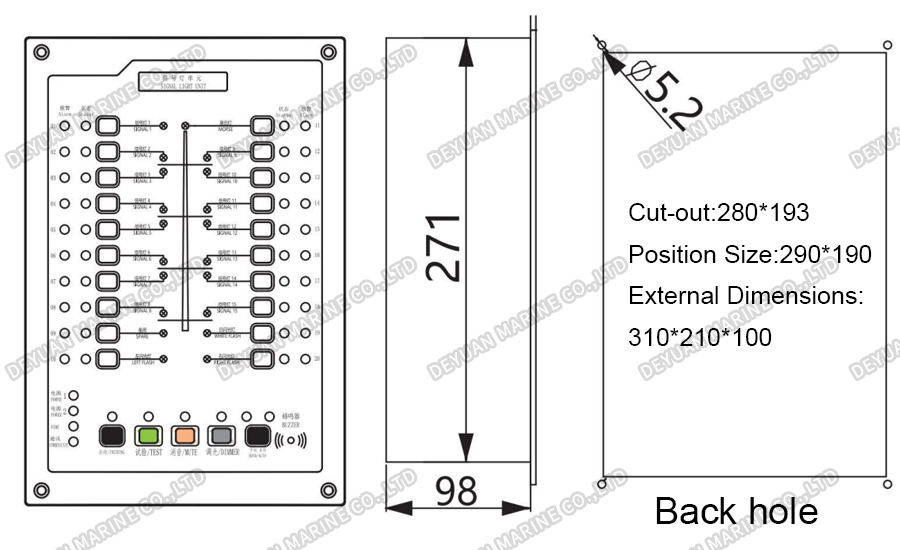

Drawing
Technical Data
| Specific Usage | |
| Relative Humidity | ≤95%(40℃) |
| Air pressure | 86kPa~106kPa |
| Bulb Rated Power | 2~65W |
| Bulb Voltage | DC24V or AC 220V(optimal) |
| Normal Usage | |
| Environment Temperature | -10℃~+55℃ |
| Relative Humidity | 30%~90% |
| Air Pressure | 86kPa~106kPa |
| Spare Power | DC24V +30%~-25% |
| Main Power | AC220V±10% |
| Controller Static Power Consumption | 220V,50mA |

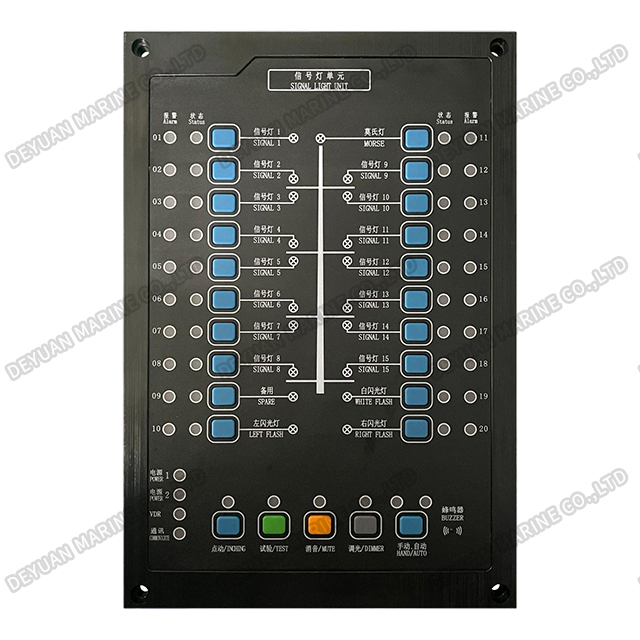

Customized Light Board Controller
1.The controller panel keys can controlupto40circuits of extemal bulbs,and the lamp panel surface can be customized according to the system diagram of the design institute and the mast layout;
2.The external bulb voltage can be AC220V or DC24Vaccording to the actual needs;
3.Different colors such as white, green,blue,orange,gray and red are available for the controller keys which can be equipped based on the diagram.
