Product Description

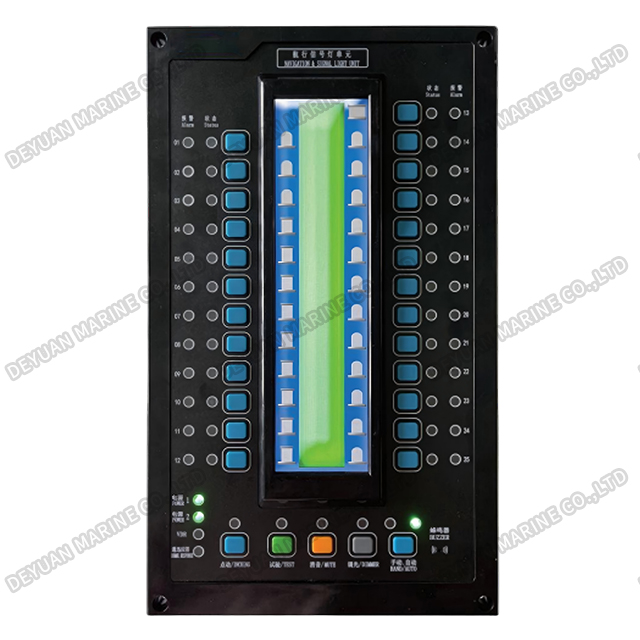

LED Navigation Light And Signal Light Controller (25-Way)
Product Introduction
Engineered for reliability and precision in demanding maritime environments, our 25-Channel Marine LED Navigation and Signal Light Controller is the core command center for your vessel's critical illumination systems. It is designed to manage complex lighting setups in full compliance with international COLREG regulations, ensuring safety and legal adherence during all operations.
This robust controller provides independent command over 25 separate circuits, allowing for the simultaneous and flexible control of a complete suite of lights. This includes standard navigation lights (sidelights, stern, masthead, all-round), specialized signal patterns (fishing, towing, not under command), and auxiliary deck or work lighting. Pre-programmed lighting modes (e.g., "Underway," "Anchored," "Maneuvering") enable instant switching between regulatory-required profiles with a single action, reducing bridge workload and preventing human error.
Built to withstand harsh marine conditions, the unit features a corrosion-resistant enclosure, superior protection against voltage spikes, moisture, and vibration. Its intuitive interface allows for straightforward operation and integration with modern bridge systems. By centralizing control and leveraging the efficiency of LED technology, this controller enhances operational safety, simplifies maintenance, and contributes to overall vessel energy efficiency.
Ideal for: Commercial fishing vessels, work boats, patrol boats, pilot vessels, yachts, and other maritime craft requiring professional-grade lighting management.

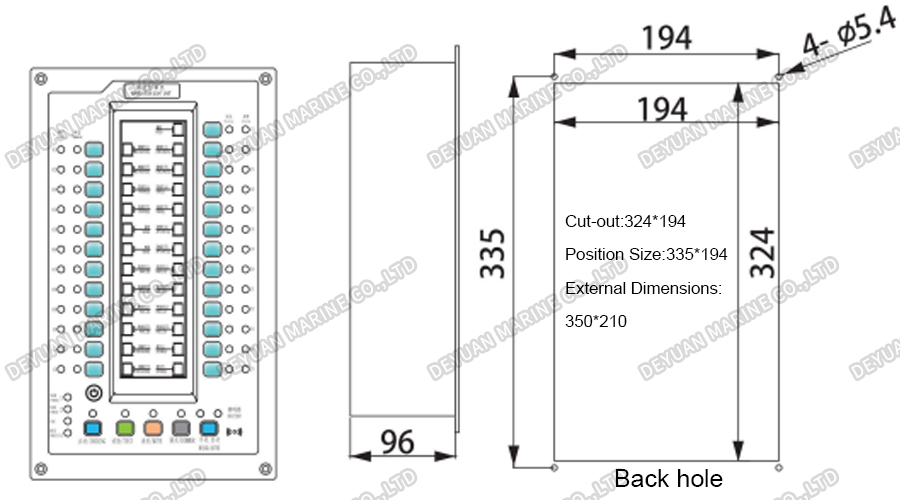

Drawing
Technical Data
| Specific Usage | |
| Relative Humidity | ≤95%(40℃) |
| Air pressure | 86kPa~106kPa |
| Bulb Rated Power | 2~65W |
| Bulb Voltage | DC24V or AC 220V(optimal) |
| Normal Usage | |
| Environment Temperature | -10℃~+55℃ |
| Relative Humidity | 30%~90% |
| Air Pressure | 86kPa~106kPa |
| Spare Power | DC24V +30%~-25% |
| Main Power | AC220V±10% |
| Controller Static Power Consumption | 220V,50mA |
Customized Light Board Controller
1.The controller panel keys can controlupto40circuits of extemal bulbs,and the lamp panel surface can be customized according to the system diagram of the design institute and the mast layout;
2.The external bulb voltage can be AC220V or DC24Vaccording to the actual needs;
3.Different colors such as white, green,blue,orange,gray and red are available for the controller keys which can be equipped based on the diagram.
