Product Description

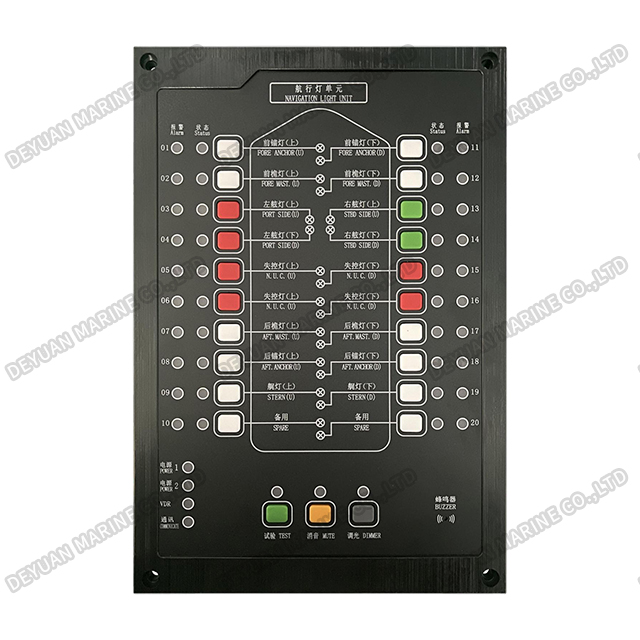

DK-H Type Navigation Light Controller
Product Introduction
The DK-H is a high-performance, fully automatic navigation light controller designed for reliability and compliance. It expertly manages all mandatory lights—masthead, sidelights, stern, and anchor lights—in strict accordance with COLREGs. Its core intelligence lies in automatic fault monitoring; if a primary lamp fails, it instantly switches to the backup, ensuring uninterrupted signal integrity. Built with a rugged, enclosure for harsh marine environments, it features a clear interface for manual override and status checks. The DK-H is the trusted choice for enhancing safety and operational efficiency on vessels of all sizes.

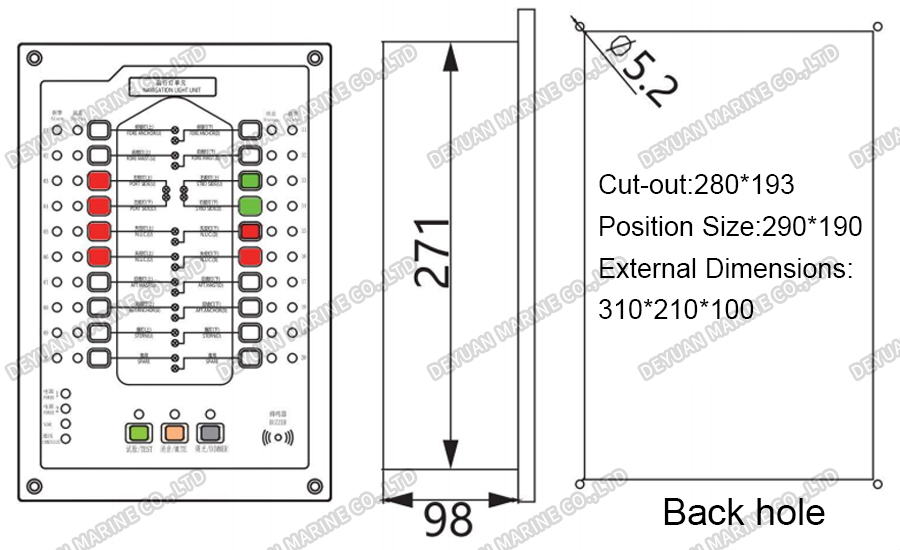

Drawing
Technical Data
| Specific Usage | |
| Relative Humidity | ≤95%(40℃) |
| Air pressure | 86kPa~106kPa |
| Bulb Rated Power | 2~65W |
| Bulb Voltage | DC24V or AC 220V(optimal) |
| Normal Usage | |
| Environment Temperature | -10℃~+55℃ |
| Relative Humidity | 30%~90% |
| Air Pressure | 86kPa~106kPa |
| Spare Power | DC24V +30%~-25% |
| Main Power | AC220V±10% |
| Controller Static Power Consumption | 220V,50mA |
Customized Light Board Controller
1.The controller panel keys can controlupto40circuits of extemal bulbs,and the lamp panel surface can be customized according to the system diagram of the design institute and the mast layout;
2.The external bulb voltage can be AC220V or DC24Vaccording to the actual needs;
3.Different colors such as white, green,blue,orange,gray and red are available for the controller keys which can be equipped based on the diagram.
