Product Description

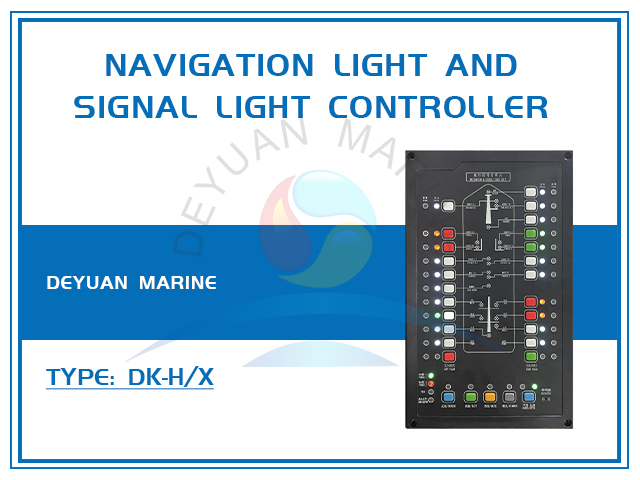

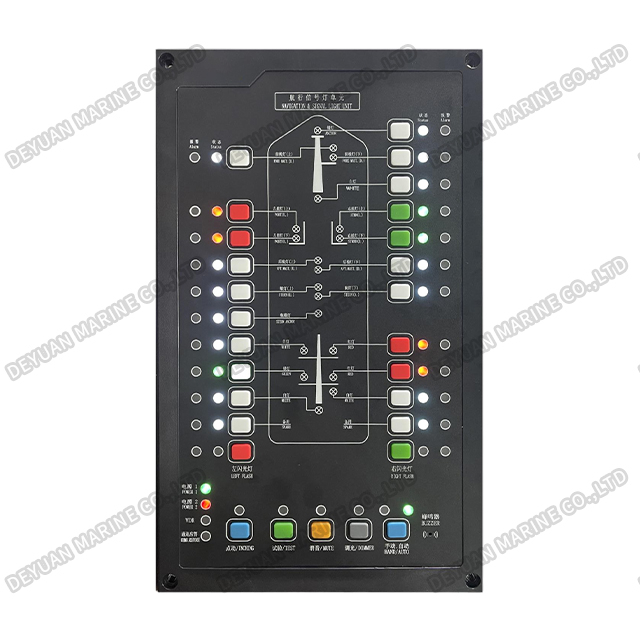

DK-H/X Navigation Light And Signal Light Controller (25-Way)
Product Introduction
The Marine DK-H/X Series Navigation Signal Light Controller (25-Channel) is a professional-grade, centralized control system designed for comprehensive management of all vessel lighting signals. Engineered to exceed SOLAS and COLREGs requirements, this robust unit provides independent control and monitoring for up to 25 separate lighting circuits, including navigation lights (masthead, sidelights, stern), anchor lights, signal lamps, and specialized work lights. Its advanced system features automatic bulb failure detection, instant backup circuit switchover, and integrated alarm outputs. Built with a marine-grade, corrosion-resistant enclosure rated IP66 or higher, it ensures reliable operation in the harshest saltwater environments. The clear interface allows for both manual control and automated sequences, making it the ideal centralized command center for lighting on offshore supply vessels, tugboats, patrol vessels, and large workboats where multiple light signals are critical for safety and operations.

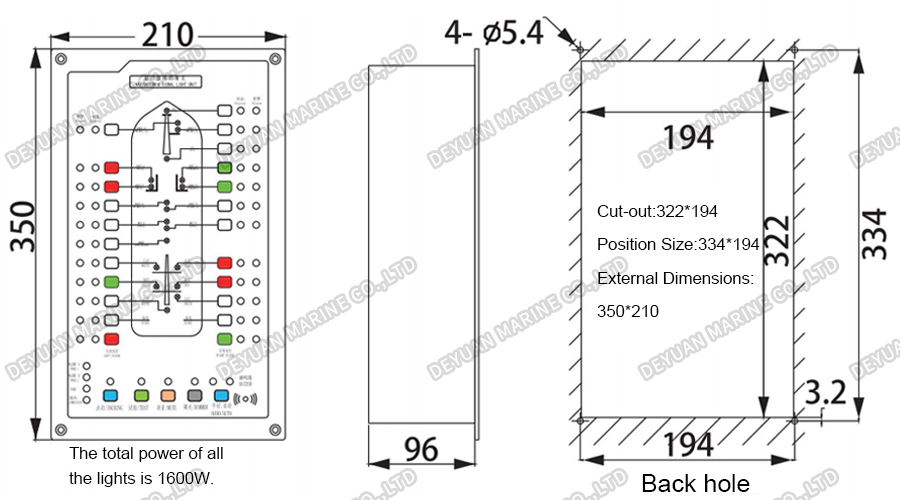

Drawing
Technical Data
| Specific Usage | |
| Relative Humidity | ≤95%(40℃) |
| Air pressure | 86kPa~106kPa |
| Bulb Rated Power | 2~65W |
| Bulb Voltage | DC24V or AC 220V(optimal) |
| Normal Usage | |
| Environment Temperature | -10℃~+55℃ |
| Relative Humidity | 30%~90% |
| Air Pressure | 86kPa~106kPa |
| Spare Power | DC24V +30%~-25% |
| Main Power | AC220V±10% |
| Controller Static Power Consumption | 220V,50mA |
Customized Light Board Controller
1.The controller panel keys can controlupto40circuits of extemal bulbs,and the lamp panel surface can be customized according to the system diagram of the design institute and the mast layout;
2.The external bulb voltage can be AC220V or DC24Vaccording to the actual needs;
3.Different colors such as white, green,blue,orange,gray and red are available for the controller keys which can be equipped based on the diagram.
