DK-HL/XL LED Navigation Light And Signal Light Controller (25-Way)

DK-HL/XL LED Navigation Light And Signal Light Controller (25-Way)

Product Introduction

The DK-HL-XL is a professional-grade, 25-channel controller designed specifically for the precise and reliable command of marine LED navigation and signal lighting systems. Engineered to meet stringent international maritime standards, it serves as the central intelligence for lighting on various vessels, including workboats, patrol ships, fishing vessels, and small commercial ships.

This robust controller excels in managing complex light configurations. Its 25 independent channels allow for the simultaneous and individual control of a wide array of lights, such as port/starboard sidelights, stern lights, masthead lights, anchor lights, all-round lights, deck floodlights, and specialized signal patterns (e.g., towing, fishing, or not-under-command). The DK-HL-XL features programmable logic, enabling automatic switching between predefined lighting profiles (e.g., "Underway," "Anchored," "Fishing," "Towing") with a single command, enhancing operational safety and crew efficiency.

Built for the harsh marine environment, the unit boasts excellent resistance to vibration, moisture, and salt spray. It incorporates advanced protection against voltage surges, short circuits, and reverse polarity, ensuring unparalleled system durability and safety. The controller typically interfaces seamlessly with onboard power systems and can be operated via a user-friendly waterproof panel or integrated into the vessel's bridge control system.

Drawing

Technical Data

Key advantages include

1.Compliance & Safety: Facilitates compliance with COLREG regulations for navigation light patterns.

2.High Reliability: Industrial-grade components ensure continuous operation in demanding conditions.

3.Flexibility & Control: 25 channels offer extensive customization for diverse lighting setups and special signaling needs.

4.Durability: Corrosion-resistant construction and robust electrical protection.

5.Energy Efficiency: Optimized for use with modern LED fixtures, reducing power consumption.

The DK-HL-XL 25-Channel Controller is the indispensable solution for vessel operators and builders seeking a powerful, dependable, and standards-compliant command center for all critical marine illumination.

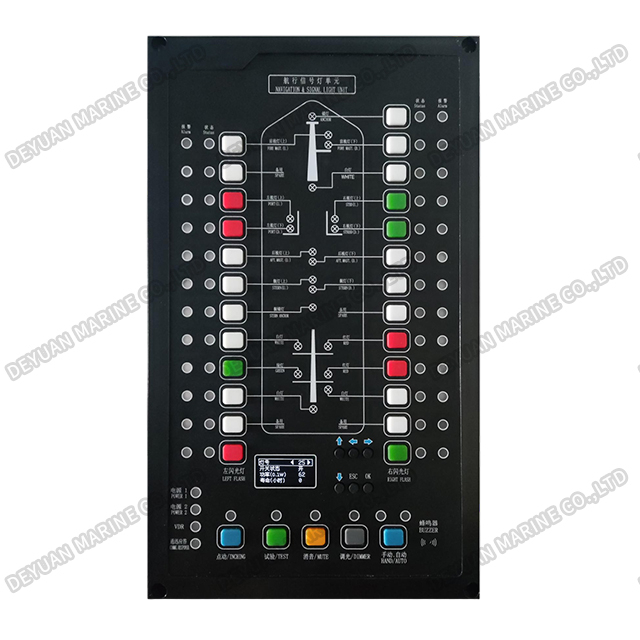

Customized Light Board Controller

1.The controller panel keys can controlupto40circuits of extemal bulbs,and the lamp panel surface can be customized according to the system diagram of the design institute and the mast layout;

2.The external bulb voltage can be AC220V or DC24Vaccording to the actual needs;

3.Different colors such as white, green,blue,orange,gray and red are available for the controller keys which can be equipped based on the diagram.
