Marine Tilt Type Hydraulic Steering Gear System

Place of Origin: China (Mainland)
Brand Name: Deyuan
Driven: Electrical & Manual
Torque: 8-500kN.m
Tiller Dia.:200-720mm
Rudder Stock:≤130
Condition: New
Customized: Accept
Transport Package: Export standard
Certificate: CCS, BV, ABS, DNV, RINA LR
  • Deyuan Marine
Availability:

Product Description

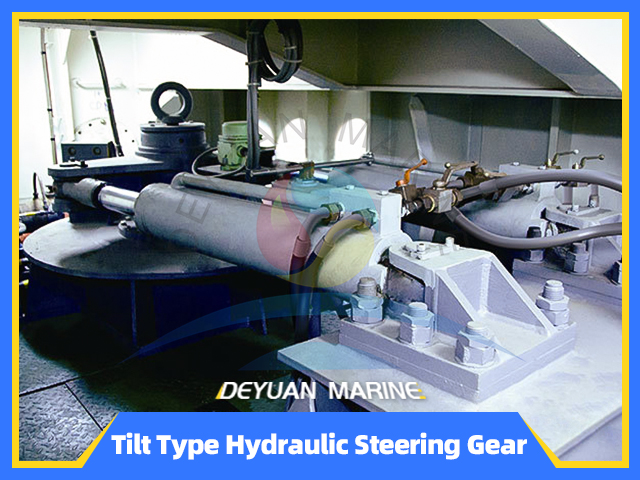

Tilt Type Hydraulic Steering Gear System


Tilt type steering gear system also called oscillating cylinder gear, in which the oil cylinders is tilting when steering the rudder. When use two sets of dual cylinder-single tiller in a system, the two sets of tiller could run synchronously or even intentional asynchronously to achieve more flexiable operation.


ModelNorque
(KN.m)
Max.Working Pressure
(MPa)
Safety Valve Pressure
(MPa)
Max. Rudder AngleTurning Times
(65°)
DYD-5.0-20-BZ55.87.3±35°20
DYD-6.3-20-BZ6.37.29±35°20
DYD-10-20-BZ1011.614.5±35°20
DYD-20-20-BZ209.511.8±35°20
DYD-30-20-BZ3010.212.7±35°20/28
DYD-50-20-BZ5010.112.6±35°20/28
DYD-63-20-BZ639.311.6±35°20/28
DYD-100-20-BZ10011.013.7±35°20/28
DYD-160-20-BZ16011.013.7±35°20/28
DYD-250-20-BZ25010.212.7±35°20/28
DYD-320-20-BZ32010.112.6±35°20/28
DYD-400-20-BZ40010.112.6±35°20/28
DYD-500-20-BZ5009.712.1±35°20/28

More tilt type hydraulic steering gear system can be offered,pls contact us for more details.
