Four Ram Fork type Single Rudder Electro-Hydraulic Steering Gear

Brand: Deyuan Marine
Nominal Torque: 500~900KN.m
Type: Ram Single Rudder
Steering angle: 35°
Steering time: 28s
Power: 22~37KW
Deive: Electro-hydraulic
Availability:

Product Description

Four Ram Fork type Single Rudder Electro-Hydraulic Steering Gear


Hydraulic Steering Gear consists of Steering mechanism, power system and control system.


Marin type of Steering mechanism:

1. Four-ram cross head hydraulic steering gear

2. Fork type(two-ram/four-ram) hydraulic steering gear)

3. Swing/tilt cylinder type

4.Rotary Vane Steering Gear


Options of pilot type for control system:

1. Follow-up pilot

2. Auto pilot

3. Emergency manual pilot

4. Engine drive pilot



Steering time and power: comply to SOLAS rules, or better as per customer’s requirements

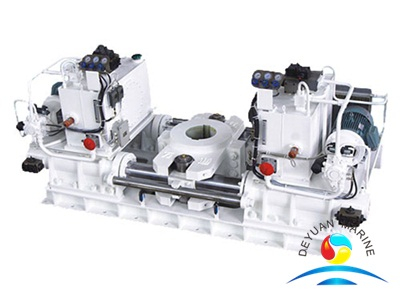

In this case here, the steering gear system consists of four ram fork type steering mechanism, two motor pump sets, reserve oil tank, control panel and start&alarm boxes.

Four Ram Fork type Single Rudder Electro-Hydraulic Steering Gear


Single Rudder Hydraulic Shifting Yoke Steering Gear

Type Nominal Torque Max. Steering Angle Steering Time Required Ele'c Power
(kN.m) (°) (S) (kW)
YDC1-4B500 500 35 28 22
YDC1-4B530 530 30
YDC1-4B550 550 30
YDC1-4B630 630 30
YDC1-4B720 720 30
YDC1-4B800 800 37
YDC1-4B900 900 37

More single rudder hydraulic shifting yoke steering gear can be offered,pls contact us for more details.
