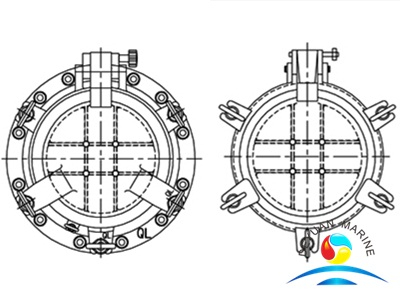

Marine Side Scuttle

  • DEYUAN MARINE

Product Description

Type Model Material combination
Code
Opening form Opened&Fixed form
of deadlight
Mount type
Bolted
 mount
Welding
mount
Opened
type
Fixed
type
Heavy
type
A 112 212 leaf opened(L)
Right opened(R)
Common Hinge(S)
Fixed type(N) Hook-up type(G) or
drop pawl(J) type
Bolted mount(B)
or
Welding mount(W)
222
Medium
type
B 112 212
222 222
333 233
Light
type
C 220 210 Opened type(LR) Fixed type(N) __
Material
Code Name
1 Brass
2 Steel
3 Aluminum
O Noncover
Y1 Clear glass
Y2 Frosted glass
Clear
size
Window frame size Cut-out
size
Glass thickness Minimum distance between
centre of scuttle and celling
D D1 D2 D3 D4 D5 A B C Drop pawl type Hook up type
200 245 204 250 350 310 253 10 8 6 350 User's option
250 295 254 305 400 364 308 12 8 6 400
300 350 304 360 450 414 363 15 10 8 450
350 400 354 410 500 464 413 15 12 8 500
400 450 404 460 550 514 463 19 12 10 540
450 500 454 510 600 513 513 _ 15 10 580
Marked sample:Medium hook up type deadlight aluminum side scuttle with frosted glass,which
is bolted mount type,outward left opened,clear size 250.
Marked as:SIDE SCUTTLE B250-RB-333G-Y2  GB/T  14413-2008
