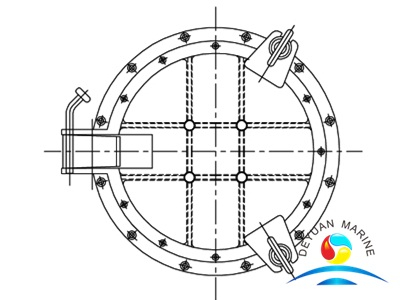

Marine Side Scuttle Fired-resisted Series

  • DEYUAN MARINE

Product Description

Clear size Glass size Window frame size Cut-out size Fireproof glass Structure Weight
D D1 D2 D3 A60 Kg
200 240 250 253 19+20+6 30.1
250 290 305 308 19+20+6 39.3
300 340 360 363 19+20+6 48.1
350 390 410 413 19+20+6 55.4
400 440 460 463 19+20+6 62.3
450 490 510 513 19+20+6 71.2
Welcome to select our:Fire-resisted series side scuttle A60 level products,been certified by CCS,ABS,BV,LR,GL,etc.
Nominal size:max 450
Marked sample:A60 fire-resisted side scuttle(P) with deadlight which heavy type,clear size300,welding mount type
(NOW),material combination steel(222)
Marked as:SIDE SCUTTLE  P-A300-NOW-222-A60   GB/T   14413-2008
