Product Description

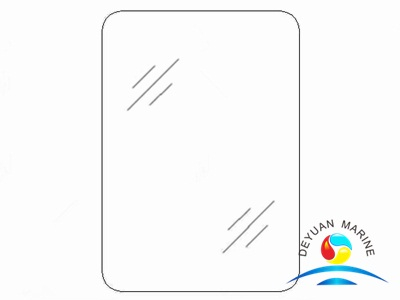

Marine Ordinary Rectangular Window With Electric Heating Function Series:
Marine retangular windows with electric heating is mainly use for wheel house windows, the main feature is this kind of marine windows with electric heating function, when vessel is sailing in a very cold weather, the wheel house windows is easy to freezen then unable to see outside, the electric heating windows with electric heater can make sure wheel house windows keep clean in order to get clear sight.
We can not only supply rectangular windows but also round windows and trapezoid windows, any size can be customized as per customer demand, main classification socienties such as CCS, BV, ABS, NK, GL etc can be provide, welcome contact with us if you need any marine windows for ship.
| Power load (W/dm2) | Outdoor Temperature | |
| Min | Max | |
| 7 | 9 | -12 |
| 12 | 15 | -28 |
| 17 | 21 | -40 |
| No. | Nominal size | Heating glass size | Glass thickness （A） | Glass thickness (B) | |||||
| t1 | t2 | t3 | t1 | t2 | t3 | ||||
| 1 | 300*425 | 314*439 | F | 8 | 4 | 13 | 8 | 4 | 18 |
| E | 10 | 4 | 15 | 10 | 4 | 20 | |||
| 2 | 355*500 | 369*514 | F | 8 | 4 | 13 | 8 | 4 | 18 |
| E | 10 | 4 | 15 | 10 | 4 | 20 | |||
| 3 | 400*560 | 414*574 | F | 8 | 4 | 13 | 8 | 4 | 18 |
| E | 12 | 4 | 17 | 12 | 4 | 22 | |||
| 4 | 450*630 | 464*644 | F | 8 | 4 | 13 | 8 | 4 | 18 |
| E | 12 | 4 | 17 | 12 | 4 | 22 | |||
| 5 | 500*710 | 514*724 | F | 10 | 4 | 15 | 10 | 4 | 20 |
| E | 15 | 4 | 20 | 15 | 4 | 25 | |||
| 6 | 560*800 | 574*814 | F | 10 | 4 | 15 | 10 | 4 | 25 |
| E | 15 | 4 | 20 | 15 | 4 | 20 | |||
| 7 | 900*630 | 914*644 | F | 12 | 4 | 17 | 12 | 4 | 22 |
| E | 19 | 4 | 24 | 19 | 4 | 29 | |||
| 8 | 1000*710 | 1014*724 | F | 12 | 4 | 17 | 12 | 4 | 22 |
| E | 19 | 4 | 24 | 19 | 4 | 29 | |||
| 9 | 1000*800 | 1114*814 | F | 15 | 4 | 20 | 15 | 4 | 20 |
| Power system | Overheated protection device | Minimum power load (W/dm2) | Power system | Overheated protection device | Minimum power load (W/dm2) | ||||||||
| Power | Voltage | Frequency | Code | Power | Voltage | Frequency | Code | ||||||
| 7 | 12 | 17 | 7 | 12 | 17 | ||||||||
| DC | 24 | __ | G | 7G01 | 12G01 | 17G01 | AC Three phase | 115 | 50 | G | 7G31 | 12G31 | 17G31 |
| S | 7S01 | 12S01 | 17S01 | S | 7S31 | 12S31 | 17S31 | ||||||
| 110 | __ | G | 7G02 | 12G02 | 17G02 | 60 | G | 7G32 | 12G32 | 17G32 | |||
| S | 7S02 | 12S02 | 17S02 | S | 7S32 | 12S32 | 17S32 | ||||||
| 220 | __ | G | 7G03 | 12G03 | 17G03 | 220 | 50 | G | 7G33 | 12G33 | 17G33 | ||
| S | 7S03 | 12S03 | 17S03 | S | 7S33 | 12S33 | 17S33 | ||||||
| AC Single phase | 115 | 50 | G | 7G11 | 12G11 | 17G11 | 60 | G | 7G34 | 12G34 | 17G34 | ||
| S | 7S11 | 12S11 | 17S11 | S | 7S34 | 12S34 | 17S34 | ||||||
| 60 | G | 7G12 | 12G12 | 17G12 | 220~380 | 50 | G | 7G35 | 12G35 | 17G35 | |||
| S | 7S12 | 12S12 | 17S12 | S | 7S35 | 12S35 | 17S35 | ||||||
| 220 | 50 | G | 7G13 | 12G13 | 17G13 | 60 | G | 7G36 | 12G36 | 17G36 | |||
| S | 7S13 | 12S13 | 17S13 | S | 7S36 | 12S36 | 17S36 | ||||||
| 60 | G | 7G14 | 12G14 | 17G14 | 440 | 50 | G | 7G37 | 12G37 | 17G37 | |||
| S | 7S14 | 12S14 | 17S14 | S | 7S37 | 12S37 | 17S37 | ||||||
| Overheat protection device G means two pieces or more combined adjustment.S means single piece adjustment | 60 | G | 7G38 | 12G38 | 17G38 | ||||||||
| S | 7S38 | 12S38 | 17S38 | ||||||||||
