Product Description

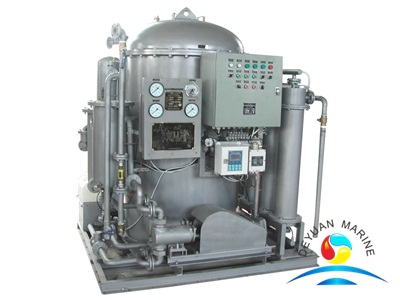

Marine Oily Water Separators
Product Introduction:
The 15PPM Oil water separators is a new production which is based on the accumulation of years of development, and learned advanced technology from foreign countries. Oil water separators is on the basis of a principle concern fine vacuum. The Oil water separators can be used for treatment of bilge oil water, and also other areas. Oil water separators can also deal with the sewage that contents high quantity emulsified oil. The performance is accord with the roles of IMO and our country’s ship and mining enterprises which are concerned with the ship’s water discharging. Oil water separators is also consistent with interna-tional IMO Marine Environment Protection Committee-MEPC.107(49) resolution specifications. This product has been issued by China Classification Society international common type of recognized certificates.
Product Parameters:
| Capacity | 0.25m3/h | 0.5m3/h | 1.0m3/h | 1.5m3/h | 2.0m3/h | 2.5m3/h | 3.0m3/h | 4.0m3/h |
| Rated capacity(m3/h) | 0.25/0.31 | 0.5/0.62 | 1.0/1.25 | 1.5/1.87 | 2/2.25 | 2.5/3.12 | 3/3.75 | 4.0/5.0 |
| Power (kw) | 0.75 | 1.1 | 1.1 | 1.1 | 2.2 | 2.2 | 3 | 3 |
| Steam heater (M2/kw) | --- | --- | 1/30 | 1.5/45 | 2/60 | 2.5/75 | 3/90 | 4/120 |
| 15ppm bilge alarm | including | including | including | including | including | including | including | including |
| Base (L*W/mm) | #5 | #6 | #6 | #8 | #8 | #8 | #10 | #10 |
| 1000*600 | 1100*690 | 1050*1084 | 1100*1130 | 1900*1120 | 1700*1500 | 2400*1700 | 2500*2000 | |
| Dimension (mm) | 1320 | 1460 | 1500 | 1660 | 1700 | 1900 | 2020 | 1820 |
| Dry weight (kg) | 300 | 600 | 800 | 1060 | 1260 | 1500 | 1800 | 2100 |
| Net weight (kg) | 450 | 800 | 860 | 1810 | 2260 | 2800 | 3200 | 3900 |
| Suitable for vessels | Less than 1000DWT | 1000~5000DWT | 5~10KDWT | 10~30KDWT | 30~50KDWT | 50~100KDWT | 100~200KDWT | 100~300KDWT |
Reference Drawing:
